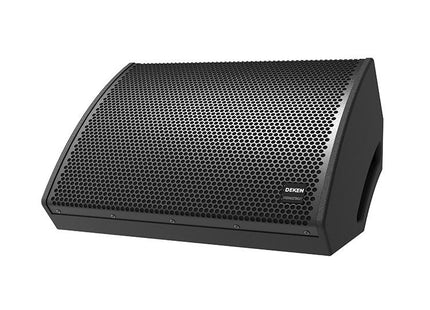

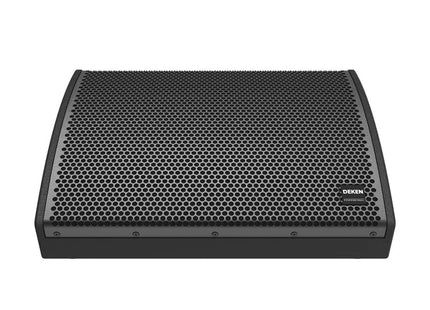

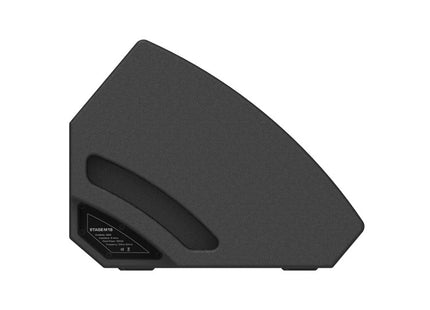

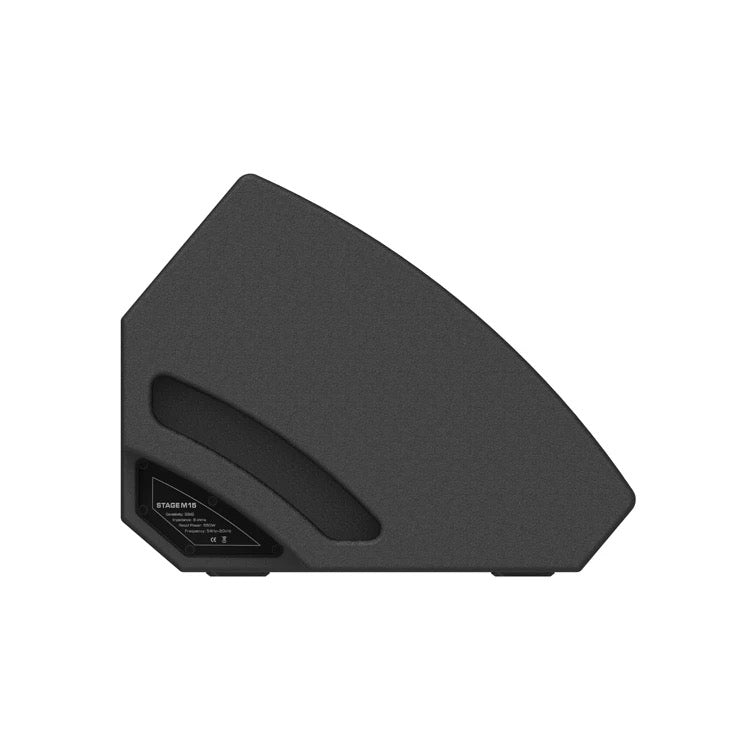

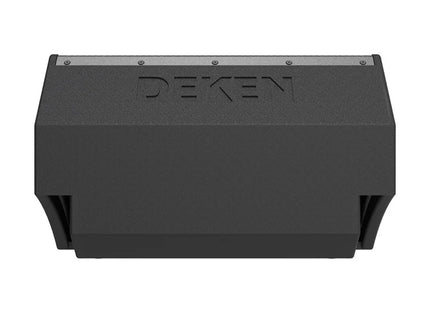

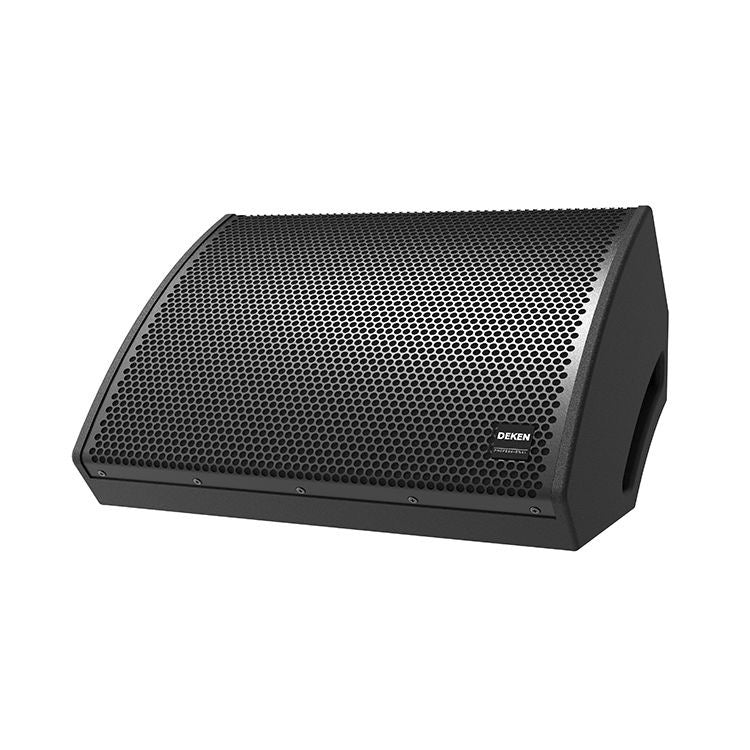

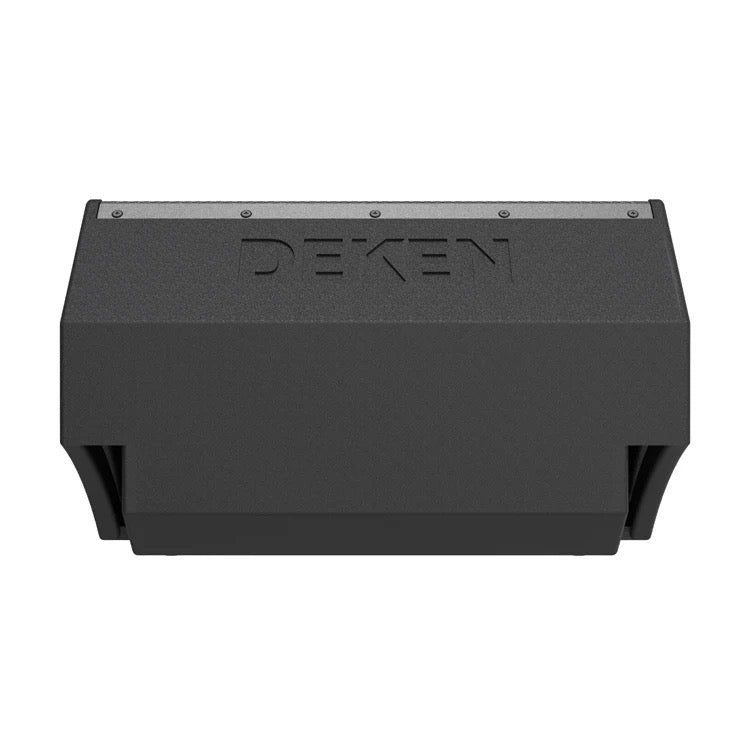

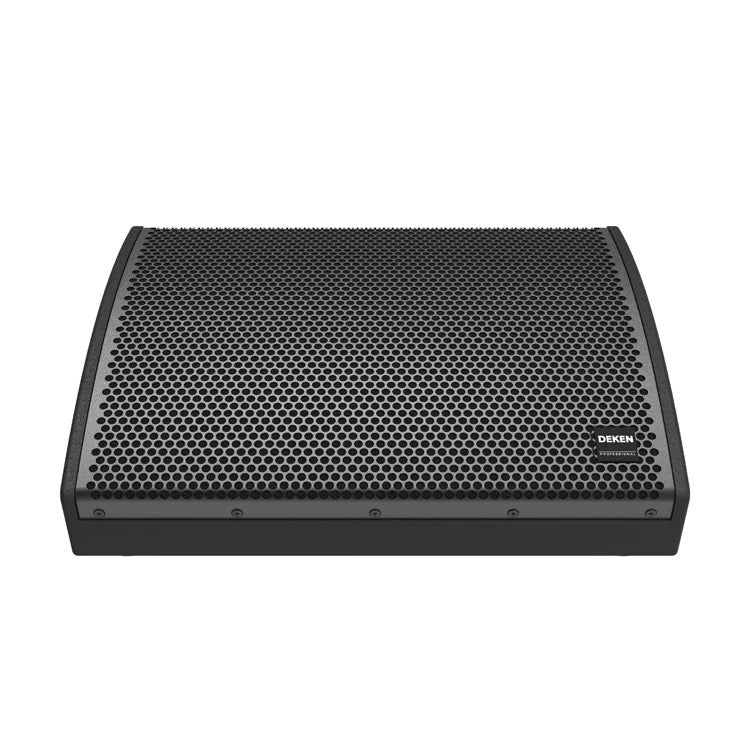

M15-SINGLE 900 WATTS (SINGLE)

SPECIFICATIONS：

System type: 2 unit 2-way coaxial inverting

Rated power：450W

Max Power：900W

Peak power：1800W

Nominal impedance：8 Ω

Recommended power amplifier output rating：500W—800W@8 Ω

Nominal sensitivity（1W@1m）：97dB

Max SPL（Pmax@1m）：123dB@450W(126 dB @900W,)

Frequency response（-10dB）：58Hz—20KHz

Nominal coverage pattern（-6dB）：90°H×90°V

Speaker component：Ferrite HF driver 1.75″（44mm voice coil）×1

Ferrite LF driver 12″(300mm diameter, 65mm voice coil) ×1

Crossover modes： Passive 2-way

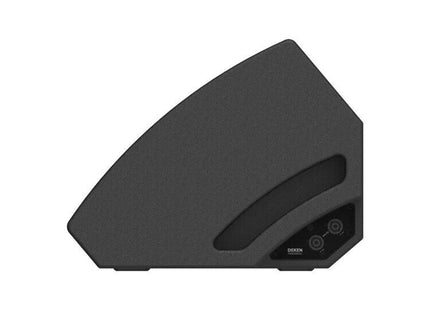

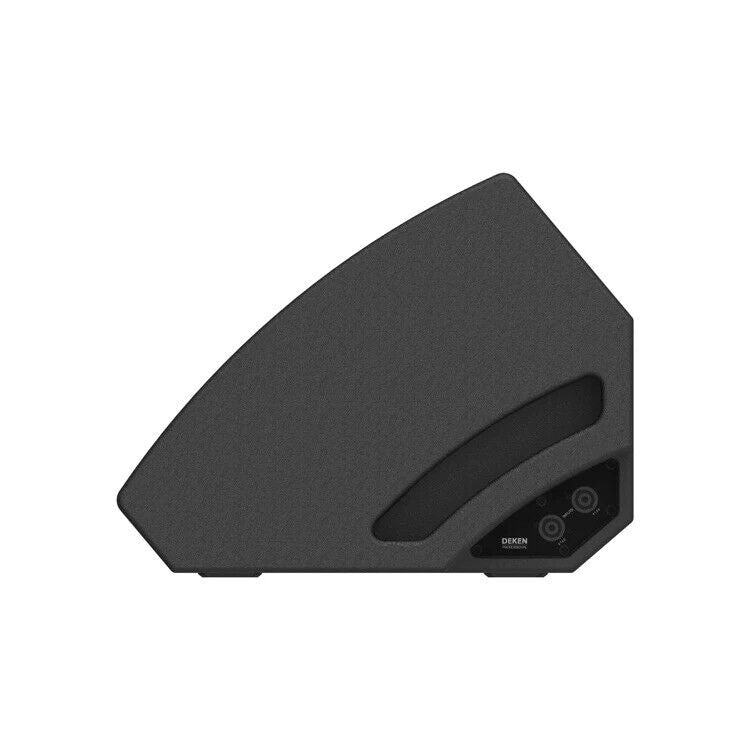

Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）

Enclosure：18mm（0.7″）High quality birch plywood

Color：Default is black, other colors can be customized

Dimensions：W550mm x D442.7mm x H356mm

Weight(each) ：17.55kg

Shipping weight：19.65kg

Reference applications:：Multipurpose halls, bars, stadiums, all the applications that need to be monitored
