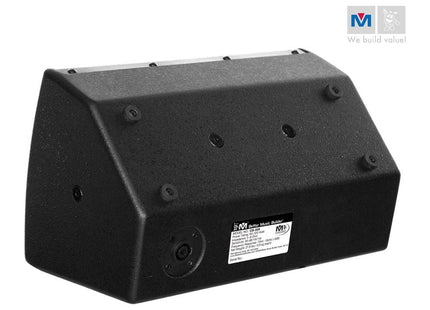

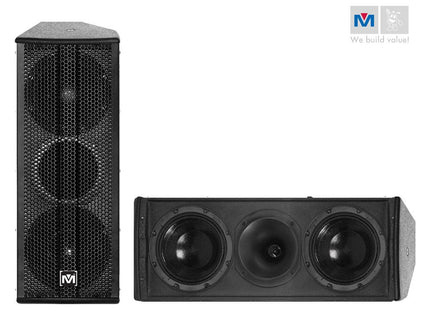

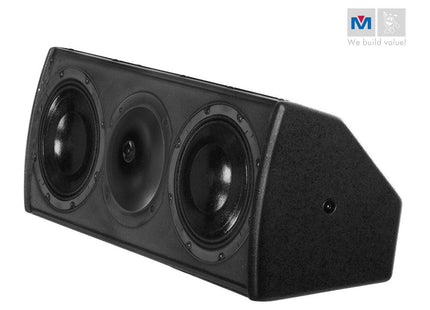

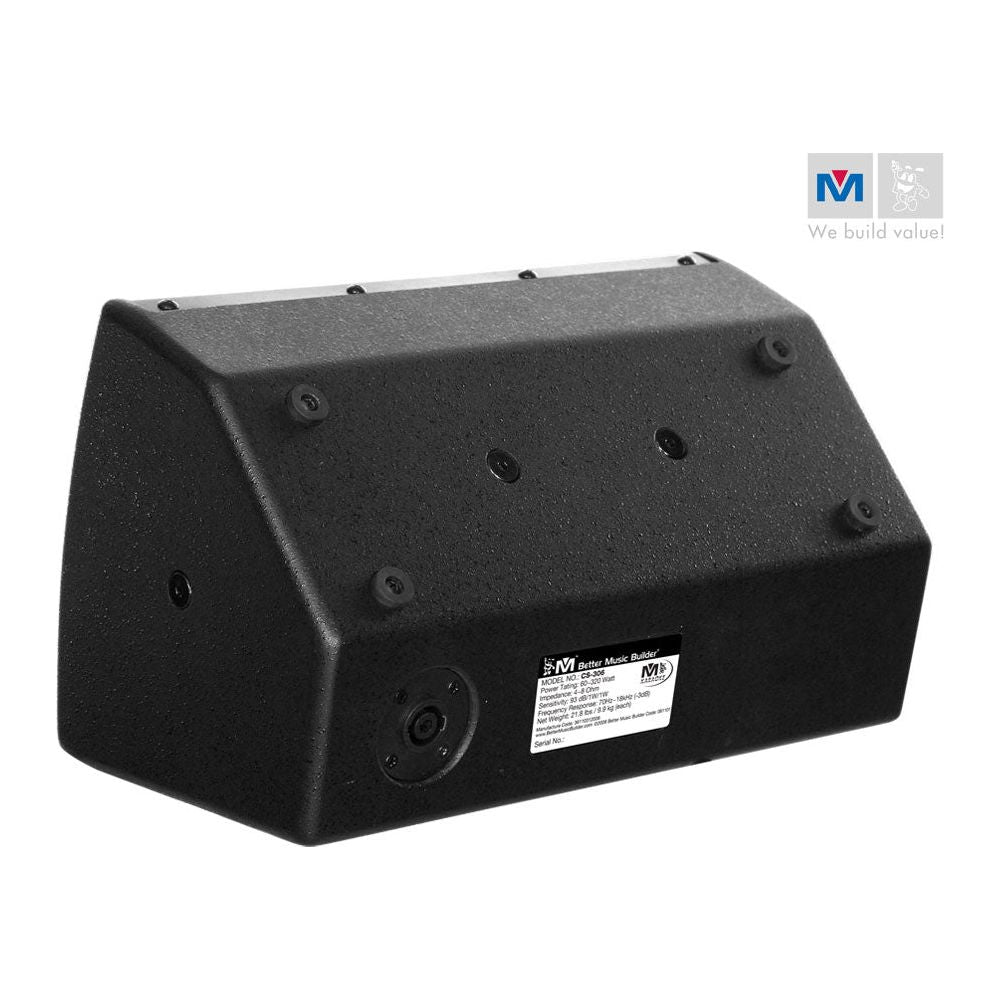

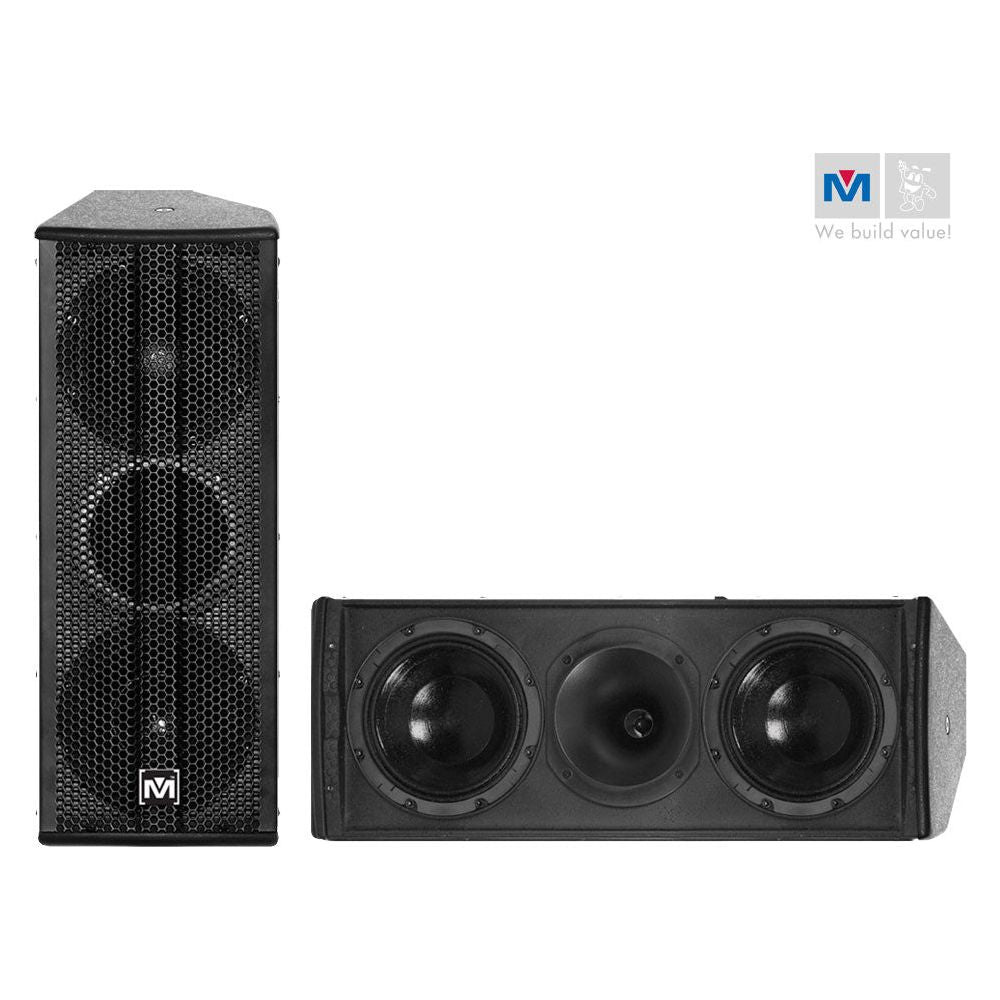

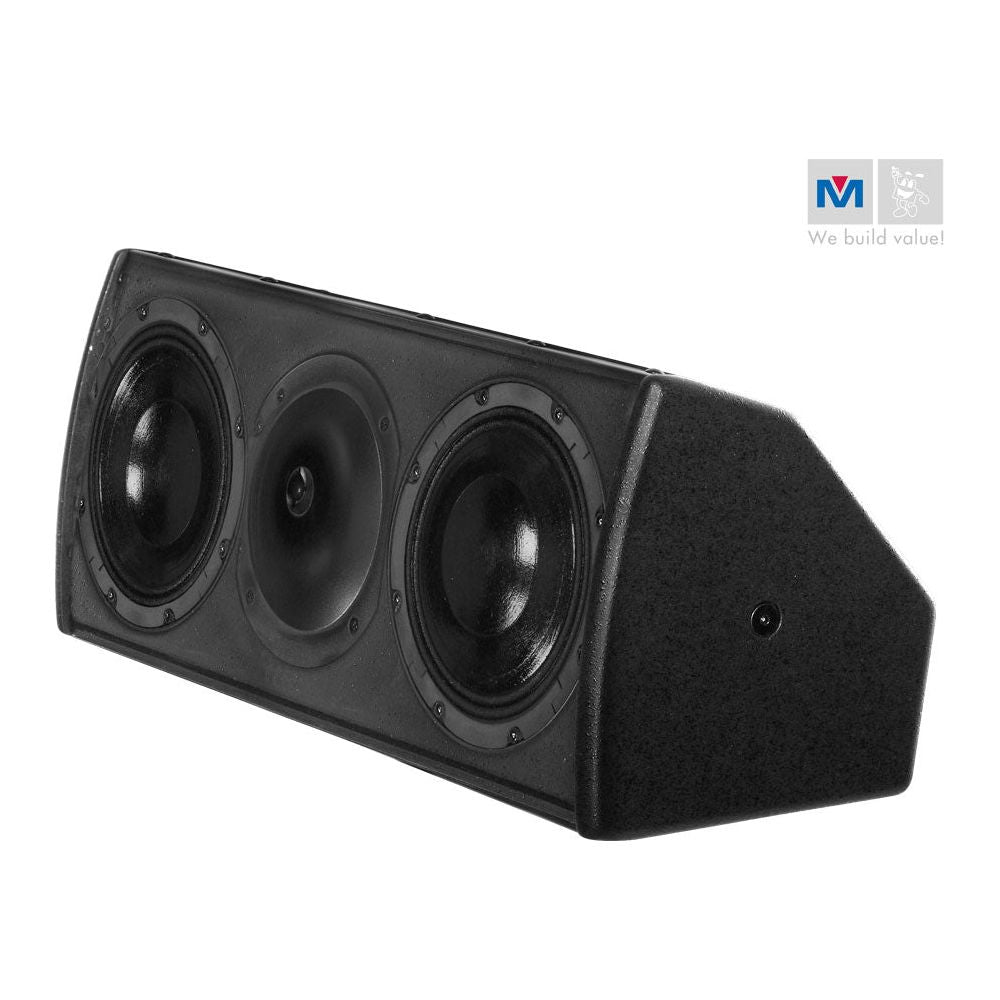

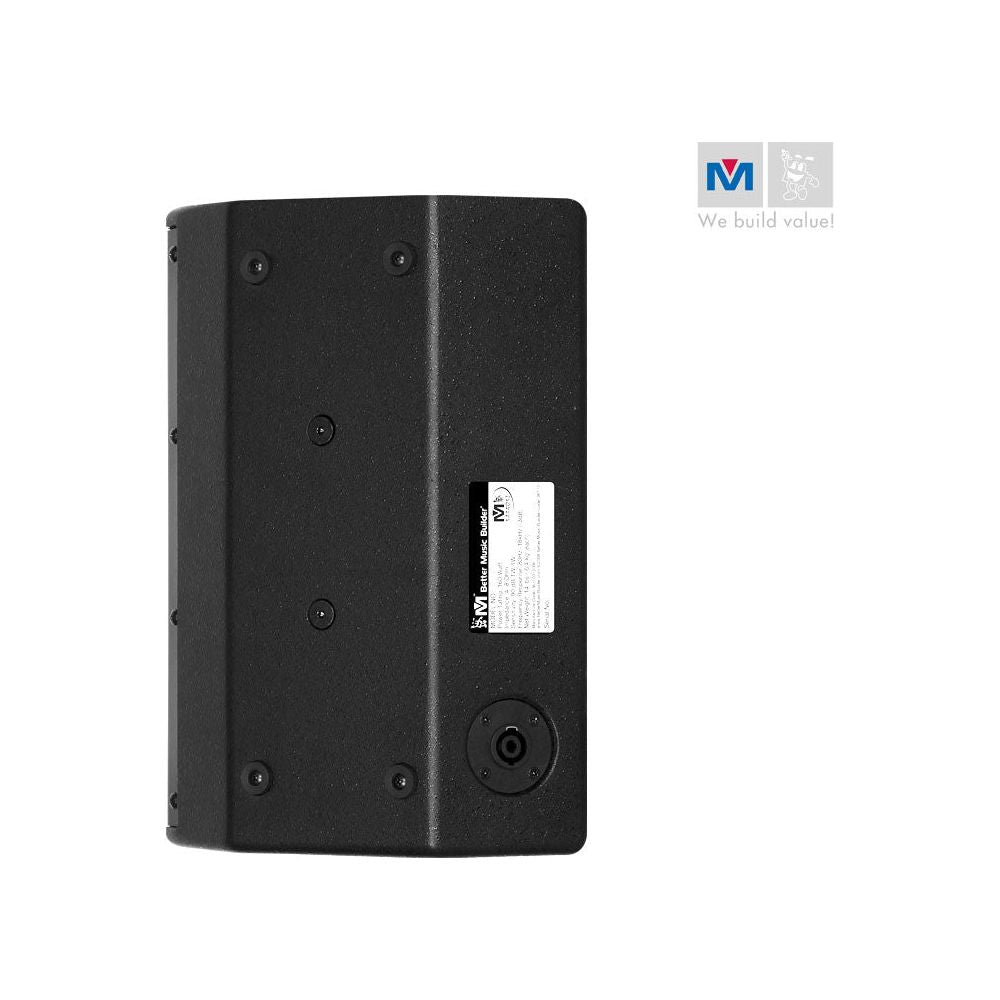

DFS-306 MONITOR SPEAKERS 320 WATTS (SINGLE)

FEATURES

• High SPL and sensitivity
• 2 x 6.5” high power low-frequency transducer
• 1 x 1” PEI diaphragm compression driver
• Passive configuration
• 140° x 140° wide-angle coverage pattern
• 1 x NL4 connector (included in the package)
• Computer-aided design to optimize frequency and phase response
• Multi-purpose cabinet design for FOH or monitor use
• Use as a main system with or without sub-speaker augmentation
• Suitable for speech and background music
• Flexible and easy-to-install configurations (wall, ceiling, under balcony)
• U bracket and a top holder of the speaker stand are included in the package
• Powder coated grill
• Durable Polyurethane textured base paint

TECH SPECS

• Type: Front (2-Way Full Range)
• Max. Power Handling: 320 Watts
• Cabinet Type: PVC, Plywood
• Supported Fixture: Ceiling, Wall Mount, Floor Stand
• Woofer [Low Frequency]: 6.5 inches (2 unit) aluminum alloy cone
• Spot Range: 1” Compression driver with PEI diaphragm
• Rated Impedance: 8 ohms
• Frequency Response: 70Hz ~ 18kHz ( ± 3 dB)
• Sensitivity: 93 dB/1W/1M
• Crossover Frequency: 3kHz
• Speaker input: 1 x Speakon NL4 connector
• Recommended Usage: Rear or post vocal/monitor speaker
• One Bass Reflex
• Dimension (WxHxD): 8.4×21.3×7.6 in / 21.2×54.1×19.4 cm (each)
• Packing Dimension (WxHxD): 23.3×11.9×12.3 in / 59.2×30.2×31.2 cm(single unit per box)
• Net Weight: 22 lbs / 10 Kg (each)
• Shipping Weight: 27 lbs / 12.2 kg (single unit per box)
• UPC Code: 743062980322
