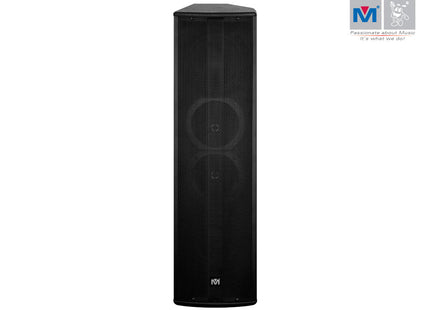

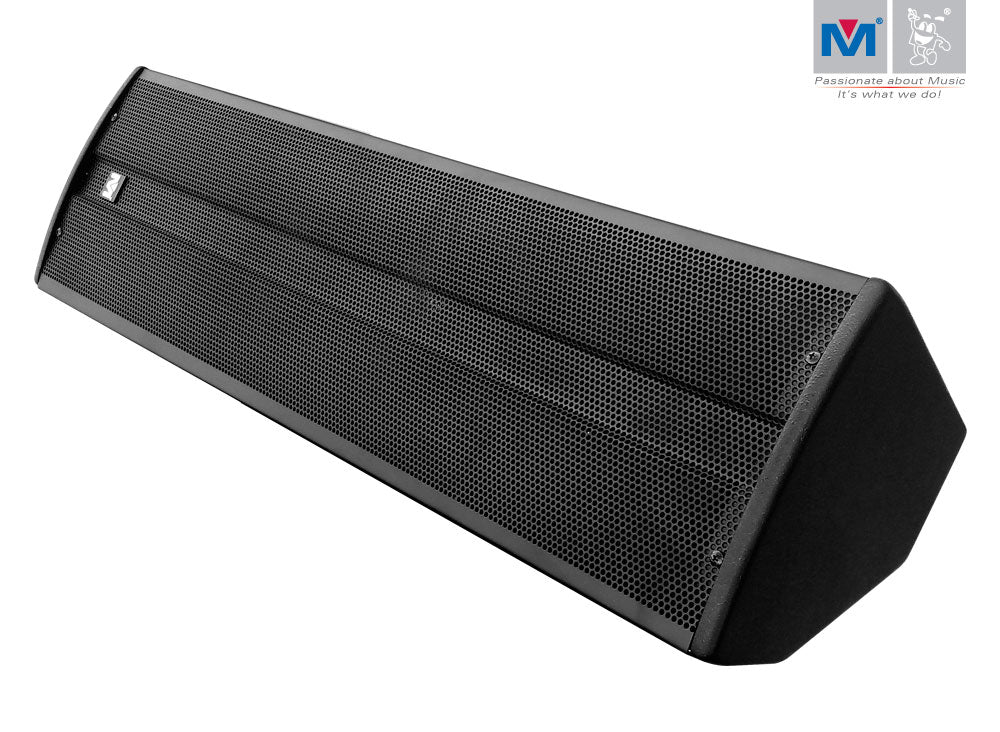

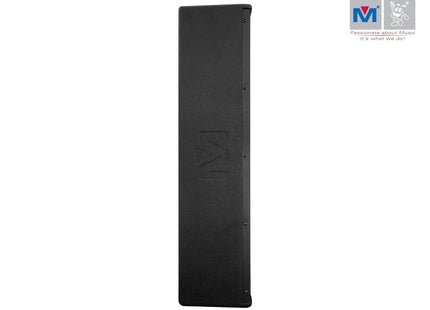

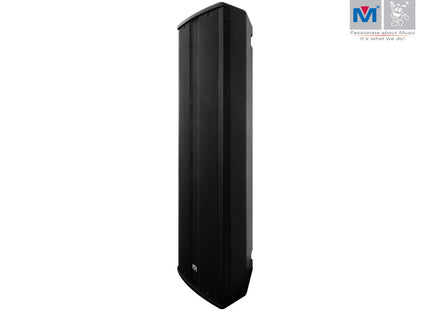

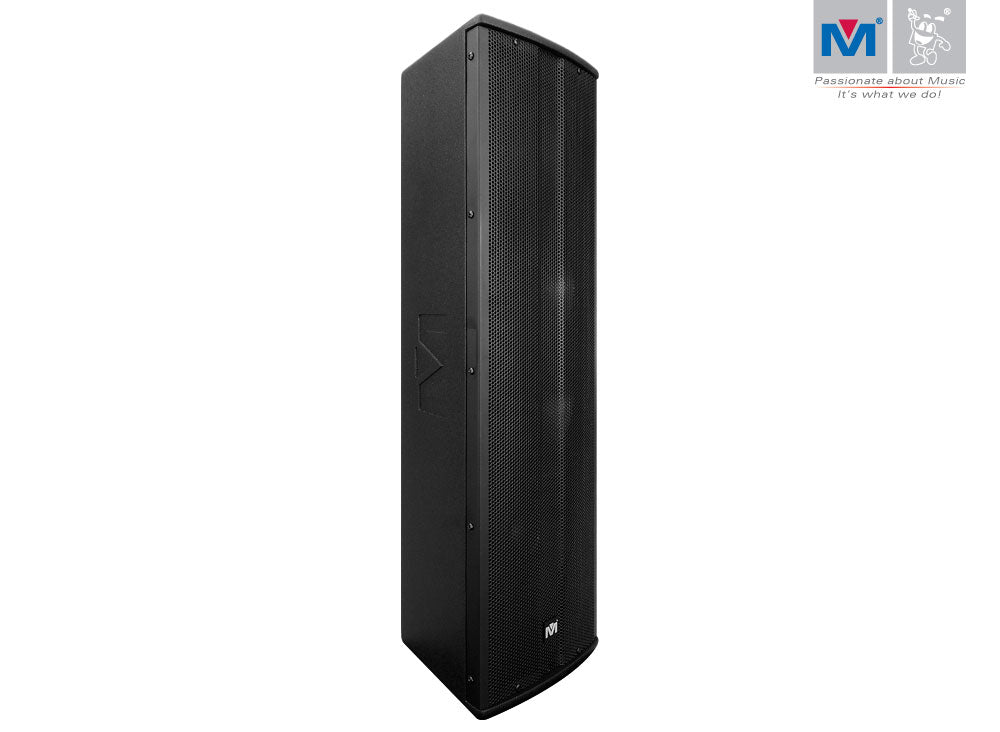

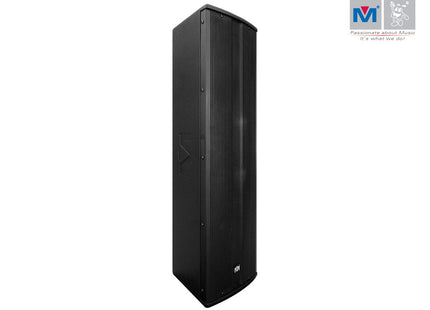

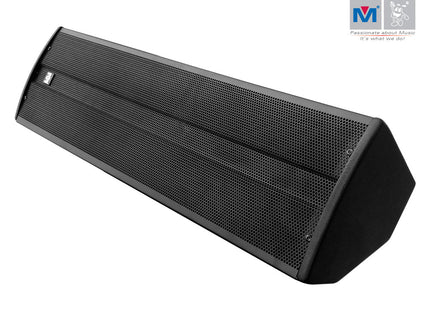

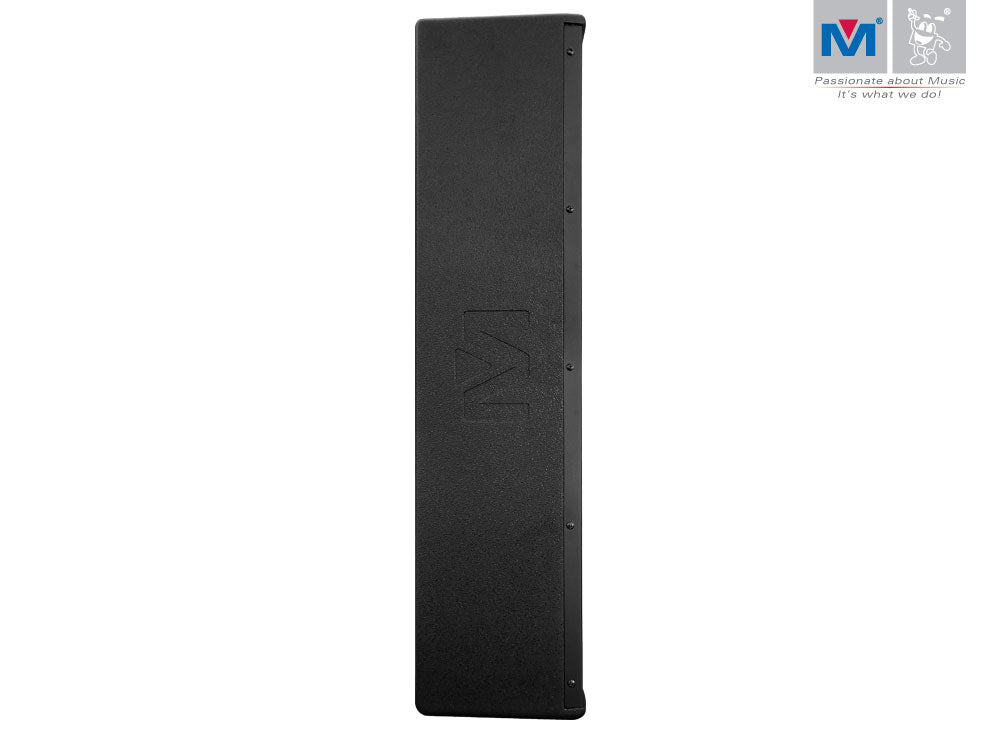

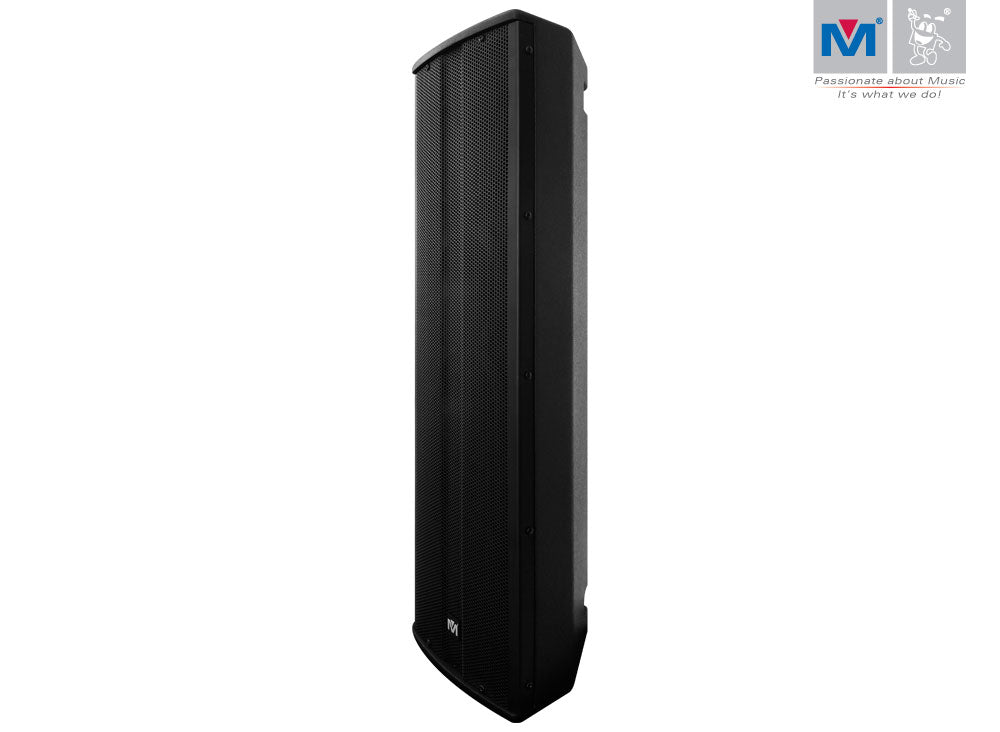

DFS-406 VOCAL / COLUMN SPEAKER 320 WATTS (SINGLE)

FEATURES

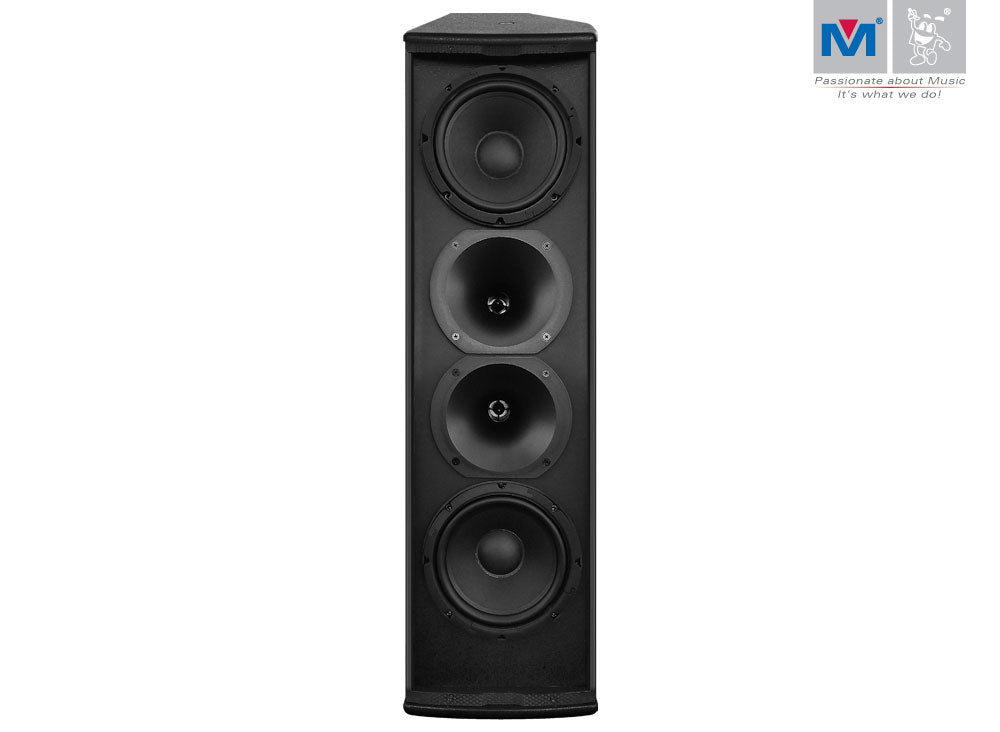

• 2-Way full range speaker
• 2 x 6” woofers [low frequency]
• 2 x 1” compression driver (tweeters [high frequency]) with PEI diaphragm
• Dynamic Fusion Technology™ (DFT)
• High SPL and sensitivity
• Passive configuration
• 140° x 140° wide angle coverage pattern
• Max. Power Handling: 320 Watts
• Frequency response 80Hz ~ 20kHz
• Sensitivity 94dB

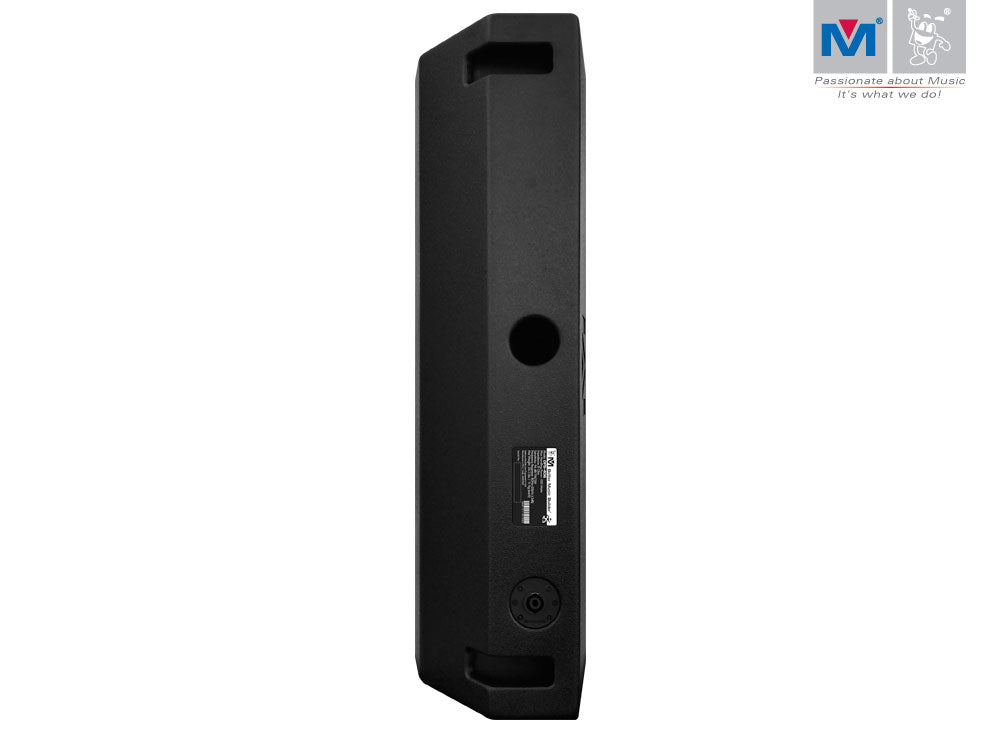

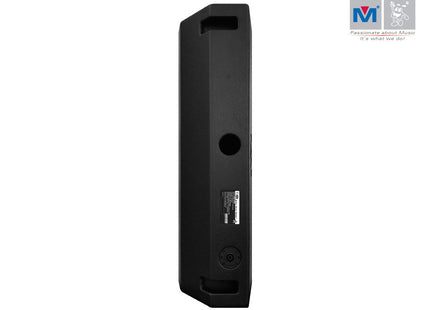

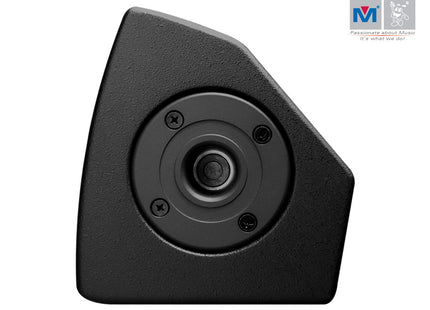

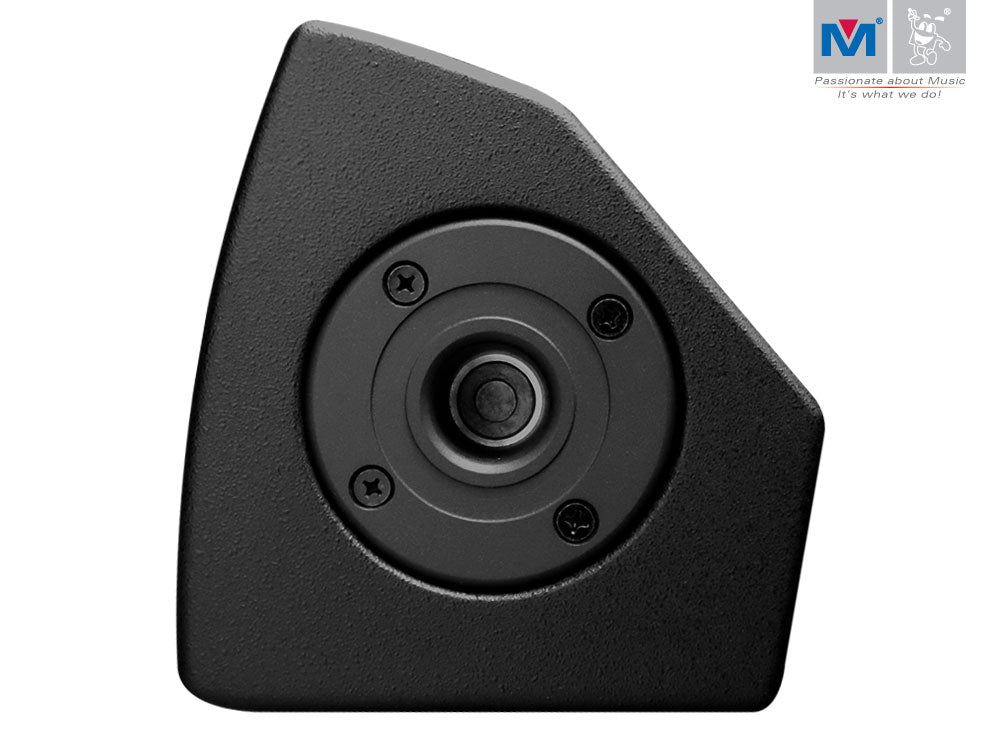

• 1 x NL4 connector (included in package)
• Computer-aided design to optimize frequency and phase response
• Speaker Stand Adapter Bracket is included in package

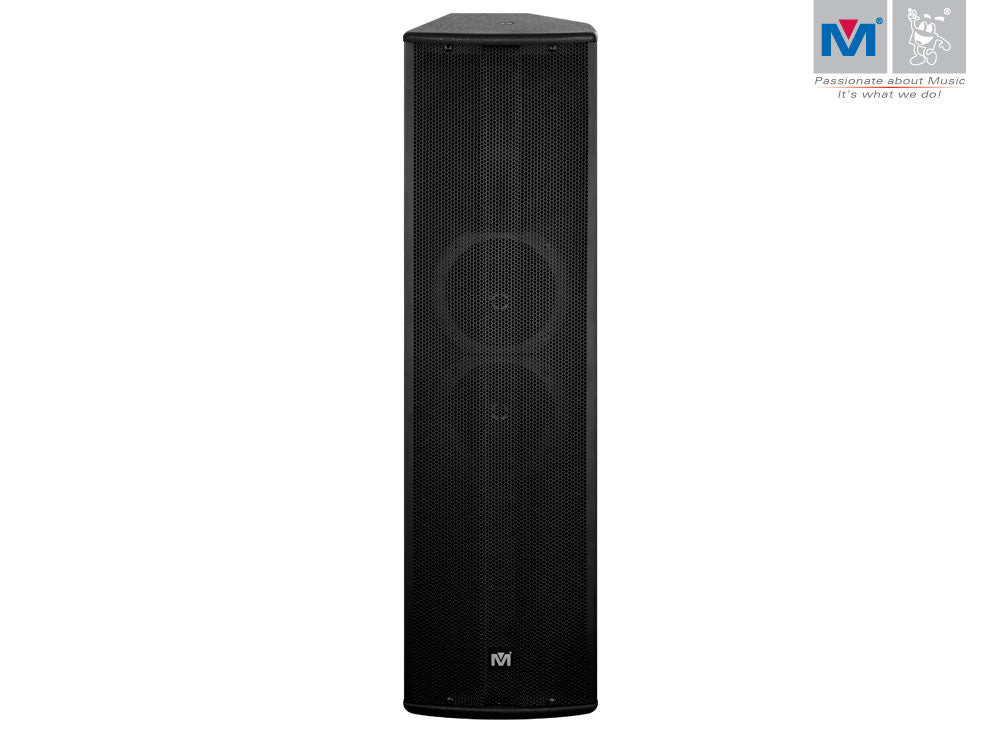

• Powder coated grill
• Durable polyurethane textured base paint
• Suitable for all kind of rock bar, entertainment bar, night club, and live performances
• Flexible and easy-to install configurations (wall, ceiling, under balcony)

TECH SPECS

• Peak Power: 320 Watts
• RMS Power: 160 Watts
• Cabinet Type: MDF Wood
• Supported Fixture: Wall Mount, Floor Stand
• Woofer [Low Frequency]: 6” (2 units)
• Tweeter [Middle Frequency]: N/A
• Tweeter [High Frequency]: 1” compression driver (2 units)
• Rated Impedance: 8 ohms
• Frequency Response: 80Hz ~ 20kHz (±3dB)
• Sensitivity: 94 dB/1W/1M
• Crossover Frequency: 2.4KHz

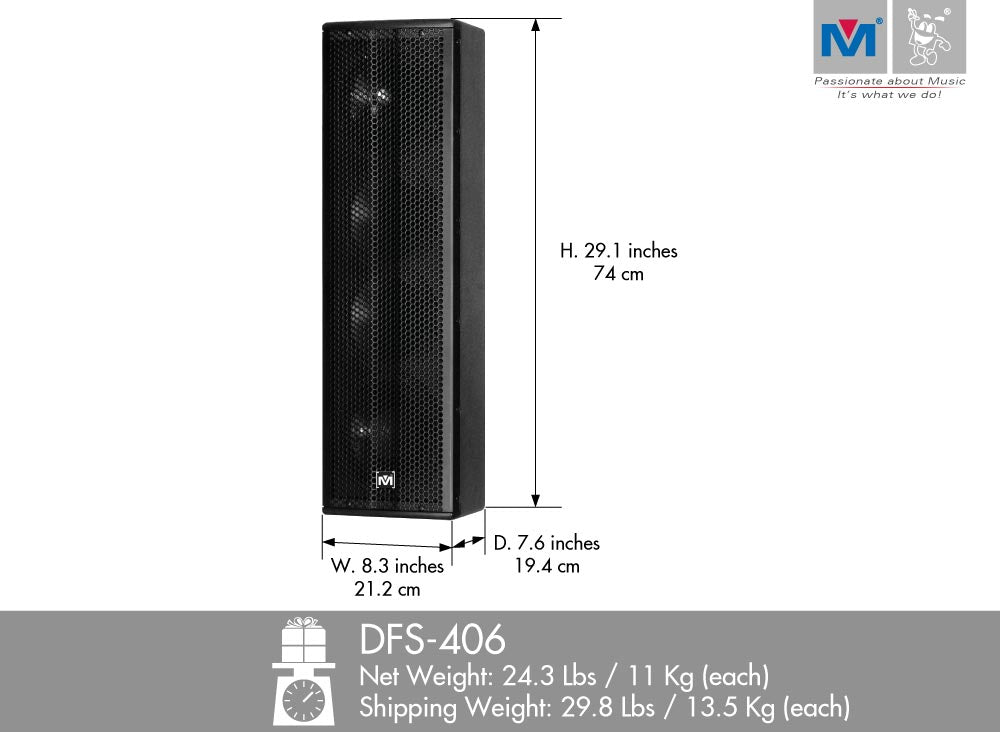

• Dimensions (WxHxD): 8.3 x 29.1 x 7.6 in / 21.2 x 74 x 19.4 cm
• Packing Dimensions (WxHxD): 12.4 x 31.1 x 11.6 in / 31.5 x 79 x 29.5 cm
• Net Weight: 24.3 Lbs / 11 Kg
• Shipping Weight: 29.8 Lbs / 13.5 Kg
• UPC Code: 743062980940
