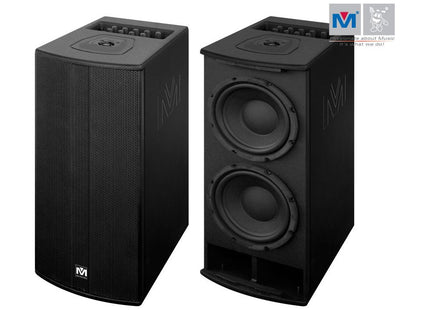

M-8 LINE ARRAY 3-WAY ACTIVE/POWERED SPEAKER (ONE SET: 2 X COLUMN SPEAKER + 1 X SUBWOOFER)
M-8 LINE ARRAY 3-WAY ACTIVE/POWERED SPEAKER (ONE SET: 2 X COLUMN SPEAKER + 1 X SUBWOOFER)
Giá thông thường
$2,999.00 USD
Giá thông thường
Giá ưu đãi
$2,999.00 USD
Đơn giá
trên
FEATURES
- 3-Way Full Range
- 1”x2 tweeters [paper cone high frequency drivers]
- 2.75”x12 tweeters [paper cone middle frequency drivers]
- 8”x2 woofer [low frequency woofer]
- Column Speakers: RMS 250W, Peak 500W; Subwoofer: RMS 400W, Peak 800W
- Built-In Power Amplifier
- Portable/Compact Design
- Average Mounting Height: 5.9 ft.
- Handle on Subwoofer Box
- Fits Truck Pack Cases (Up to two units in Better Music Builder – Road Truck-B)

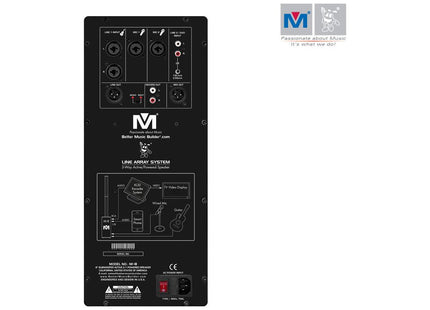

- Mono Amp. Output: XLR
- Mono/Right Output: XLR
- Recording Output: RCA
- Aux Input: RCA
- Balanced Line Inputs/Left & Right: XLR
- Microphone Inputs: 2 x XLR
- Power AC: 110V for USA & Canada. 220V for Asia and Europe.
- Bi-amp module including DSP.
- Exclusive CLIK together connections, no cables required.
- Applications:
- Party
- Meeting
- Public
- Home
TECH SPECS
- Type: Front
- Cabinet Type: Selected High Intensity Plywood
- Supported Fixture: Ground
- Woofer (LF): 8 inches (2 unit) Low Frequency
- Tweeter (MF): 2.75 inches (12 unit) Middle Frequency
- Tweeter (HF): 1 inches (2 unit) High Frequency
- Rated Impedance: 4 ohms
- Spot Range: 1 Compression Driver
- Frequency Response: 45Hz ~ 20kHz
- Max. Power Handling: Column Speakers: 500 Watts; Subwoofer: 800 Watts
- Power: LF: 200 Watts, MF: 180 Watts, HF: 30 Watts
- Sensitivity: 95dB/1W/1M
- Crossover Frequency: 300Hz between LF & MF, 5KHz between MF & HF
- Max. SPL: 113 dB / 119 dB (PEAK)
- Dispersion (HxV): 90° x 40°
- Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input
- Input Level: LINE 1: 775mVrms, LINE 2: 200mVrms; MIC 1: 20mVrms, MIC 2: 40mVrms
- Input Overloading Level: LINE 1: 3.5Vrms, LINE 2: 2Vrms; MIC 1: 200mVrms, MIC 2: 400mVrms
- Wire Connection: PIN 1: Ground, PIN 2: Signal+, PIN 3: Signal–
- Highlighted Features: Lightweight and very high power
- Dimension (WxHxD):
- Column Speaker: 3.4×22.4×4.3 in / 8.7x57x10.9 cm (each)
- Subwoofer: 9.8×23.1×15.8 in / 25×58.6×40 cm (each)
- One Set (2 x Column Speaker + 1 x Subwoofer): 9.8x68x15.8 in /
25×172.6×40 cm
- Packing Dimension (WxHxD):
- 24 x 27.6 x 13.8 in / 61 × 70 × 35 cm (One Set)
- Net Weight:
- Column Speaker: 7.4 Lbs / 3.4 Kg (each)
- Subwoofer:
36.4 Lbs / 16.5 Kg (each) - One Set (2 x Column Speaker + 1 x Subwoofer):
51.2 Lbs / 23.2 Kg
- Shipping Weight:
- 58.2 Lbs / 26.4 Kg (One Set)
- UPC Code: 743062980902
