Features
3-Way Full Range
The full system includes:
4 x R4 mid/high frequency cabinet consisting of 1 x Ribbon and 2 x 4” drivers
1 x R8 Subwoofer cabinet comprising of 2 x 8” subwoofer
Built-in power amplifier module and DSP speaker processing within the R8
The DSP includes PEQ, Crossover and Slope, Delay, Gain and Limiter and is programmable via either RS232 or USB by PC
RS-485 allows multiple systems to be connected together for control
Compact design suitable for various application situations
Up to 40kHz frequency range due to adoption of ribbon tweeter
Low distortion due to utilization of unique thin foam surround & specially coated paper cone
Multi-speaker array configurable for flying in different venues, with splay angle adjustable by 1° increment
600W DSP active amplifier
S-232/USB/RS-485 Ports available for system control
Software included
Master volume control
XLR input and output connectors
Integrated rigging and speaker cabling included for the system
Designed for high speech intelligibility and natural sounding music
Suitable for use as a main system with or without subwoofer speaker augmentation
Permanent installation
Powder coated grill
Durable Polyurethane textured base paint
Up to 4 systems can be arrayed
Applications:
Luxury cinema
Large-sized meeting room
multi-functional hall
Church
Auditorium
Tech Specs
Type: Front
Max. Power Handling: 1100 Watts
Cabinet Type: 15mm Birch Plywood
Supported Fixture: Ceiling / Ground
Woofer [LF]: 8” (2 units) Low Frequency
Tweeter [MF]: 4” (2 units) Drivers
Tweeter [HF]: 1 unit Ribbon Driver
Rated Impedance: 8 ohms
“Spot” Range: Compression Driver
Frequency Response: 50Hz ~ 20kHz
Amplifier Type: Class H
LF Amplifier Power: 300W RMS
HF Amplifier Power: 75W x 4 RMS
Line Input Sensitivity: +4dBu
Max. SPL: 115 dB / 121 dB (PEAK)
Dispersion (HxV): 120° x 30°~90°
Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input
Connector R8: XLR Line Input/Output, XLR RS485 Input/Output, 2 x NL4 Output R4
Highlighted Features: High power
Dimensions (WxHxD): 19.4 x 35.4 x 24 in / 49.2 x 90 x 60.8 cm
Packing Dimensions (WxHxD): 27.4 x 22.8 x 27.4 in / 69.6 x 58 x 69.6 cm
Net Weight: 99.2 Lbs / 45 Kg
Shipping Weight: 110 Lbs / 50 Kg
UPC Code: 743062980926

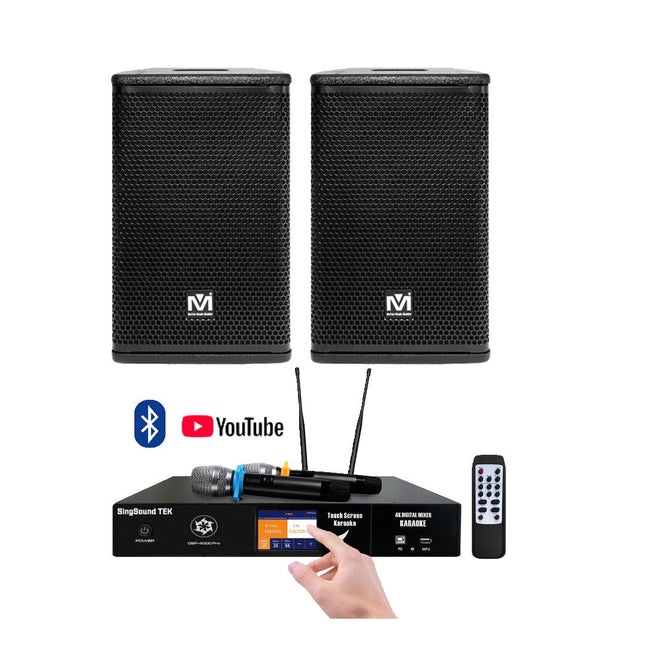

This package includes:
1 x DSP400 Pro (include mixer with 2 anti-feedback wireless microphone)
2 x Better Music Builder DFS-12A Powered Speakers
Free 2x Tripod Speaker Stands
Max Power Output: 2000W + 2000W
Free: 2 x Anti-Feedback Wireless Microphones
4.3 Inches Touch Screen Monitor
Model: 2024's Improved HDMI ARC for "Upstream" and "Dowstream" Signal over HDMI Port on TV (Perfect for Youtube Streaming Karaoke)
Built in Anti-Howling & Feedback Suppression
Built in Key Pitch Control: +5 Key Up & -5 Key Down
Digital Optical / Coax Audio Input (Connect directly from any Smart TV for Youtube Karaoke)
Built Digital EQualizer Individual Control: Music, Microphone & Effect
Built-in MP3 Player Module
Bluetooth Function send/receive from any device (Iphone, Ipad, Android, Youtube, Karaoke Apps)
4 Audio Inputs: DVD/VOB/USB/Bluetooth Function
3 HDMI Inputs & 1 HDMI Output
2 Rear 1/4" Microphone Inputs
USB Port MP3 & Playback
Master Microphone Volume
Master Music Volume
Master Effect Volume (Echo, Delay, Repeat, Reverb & High, Low)
Banana Plug Speaker Connectors
DSP Digital Sound Processor
Power Voltage: 115V Standard Usage
Built-in BBE Sonic Maximizer for both vocal and music
Subwoofer Output
Rec Output
1 Year Warranty Include: Labor & Parts
Type: Front (2-Way Full Range)
Max. Power Handling: 650 Watts
Cabinet Type: PVC, Plywood
Supported Fixture: Ceiling, Wall Mount, Floor Stand
Woofer: 12 inches (1 unit)
Tweeter: 3 inches (2 units: High Frequency x 2) / 4 inches (2 units: Middle Frequency x 2)
Rated Impedance: 8 ohms
Frequency Response: 25Hz ~ 18kHz ( ± 3 dB)
Sensitivity: 93 dB/1W/1M
Crossover Frequency: LF: 300Hz / HF: 6.3kHz
Dimension (WxHxD): 24.1 x 13.8 x 13.6 in / 61.2 x 35 x 34.5 cm (each)
Packing Dimension (WxHxD): 16.5 x 28 x 15.8 in / 41.9 x 71.1 x 40 cm (each)
Net Weight: 36 Lbs / 16.3 Kg (each)
Shipping Weight: 41.6 Lbs / 18.9 Kg (each)
FEATURES
1 x 12″ woofer [3″ voice coil low-frequency woofer]
Built-In power amplifier
Portable/compact design
Digital amplifier with DSP and outputs
Audio input: 1 x XLR
Audio output: 1 x XLR
Speaker output: 1 x Speakon NL4 connector
Handling power: RMS 450 Watts, PEAK 900 Watts
Suitable for use with any full range or mid/high speaker
Convenient handle on subwoofer box
Protective grill: Black perforated steel
Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
TECH SPECS
Type: Subwoofer
Supported Fixture: Ground
Woofer: 12″ (1 unit)
Peak Power: 900 Watts
RMS Power: 450 Watts
Rated Impedance: 4~8 ohms
Frequency Response: 35Hz ~ 500Hz (+/-3dB)
Sensitivity: 95dB/1W/1M
Maximum SPL: 122 dB (by measurement)
Highlighted Features: Built-In Power Amplifier
Speaker Output Connector: Speakon NL4 x 1 (+1 -1)
Dimensions (WxHxD): 14.4×19.5×19.3 in / 36.5×49.5×49 cm
Packing Dimensions (WxHxD): 22.2x23x17.1 in / 56.5×59.5×43.5 cm
Net Weight: 50.5 Lbs / 22.9 Kg
Shipping Weight: 58.2 Lbs / 26.4 Kg
UPC Code: 74306298190
Tripod speaker stand for easy speaker setup; ideal for use on stage, in a studio, or at home
150-pound maximum weight capacity; adjustable height (44 to 72Inches ); sturdy, expandable, long tripod legs provide stability in any environment
Constructed with a durable steel tube for reliable strength; upper shaft measures 1.4 inches (35mm) in diameter;
Each Speaker Stand Features A Safety Pin With 6 Preset Locations; black finish for easy coordinating with other equipment
Non-slip feet，universal speaker stand is designed with non-slip rubber feet to give stability while in use.
The included tray has 7 positions to adjust the angle.
Howonder provides a 12-month quality guarantee, if the product has quality problems, please contact us.
Features:
Frequency response
40HZ-18KHZ(±2db)
Rated Power
3MW-30MW
Application
Karaoke,Outdoor,Stage,Singing,Speaking,Shows
Special Feature
Portable, Wireless, Durable
Powered by
2 AA 1.5V alkaline batteries
Keyword
wireless microphone system
Use
Singing
FEATURES
Six-axis gyroscope sensor integrated onto each microphone.
Intelligent Energy Control.
Automatic Gain Control (AGC) Technology prevent microphone feedback.
UHF Dual-Channel in a 2-in-1 Base Module.
Utilizing the latest wireless technologies and engineering.
Clear Voice Technology delivers crystal clear sound.
Wireless Auto Sync System technology makes setting up a breeze.
High Definition LCD Screen displays Radio Frequency Level, Audio Frequency Level, Channel, Frequency, Battery, Volume, Mute and Lock.
100 selectable channels for each microphone.
Manual Frequency Select and Automatic Frequencies Scan.
Auto-Mute Mode and Auto-Shutdown activates when microphone is left unattended.
AA batteries for easy usage and up to 8 hours of battery life.
TECH SPECS
A. TECHNICAL FEATURE OF THE SYSTEM
Channel: 100 Channels
Frequency Range: UHF 926~936 MHz
Frequency Response: 50Hz~18kHz
Effective Use Range: ≈30m
Frequency Spacing: 1MHz
Band Width: 50MHz
Package Dimensions (WxHxD): 18.9×2.8×13.4 in / 48x7x34 cm
Shipping Weight: 6.1 lbs / 2.8 kg
B. TECHNICAL FEATURE OF THE 2-IN-1 BASE MODULE (Receiver)
Signal to Noise Ratio: ≥50dB
Audio Output: 1 x Unbalanced TRS 6.3mm Socket
Signal Pick Up: CPU controlled selection & pilot identification
Mute: Mute & lock loop circuit
Display: LCD
Power Supply: DC 12V with 1.25A, Input: AC 120V (For 220V, you may need to change to a 220V~240V DC adaptor)
Receiver Dimensions (WxHxD): 16.5×1.7×5.5 in / 42×4.3×14 cm
Net Weight: 2.8 lbs / 1.3 kg
C. TECHNICAL FEATURE OF THE MICROPHONE
Transmitter Power: Low (5mW), High (10mW)
Frequency Spacing: 1MHz
Band Width: 50MHz
Display: LCD
Capsule: Dynamic
Battery Life: 8 Hours
Battery Voltage: 2 x AA 1.5V Alkaline Battery
Microphone Height & Circumference: 9.8 & 2 in / 24.8 & 5.1 cm
UPC Code: 743062981466
FEATURES
Smart Sensor integrated onto microphones.
Auto-Mute Mode activates upon impact.
Energy-efficient Sleep Mode.
Equipped with the latest wireless technology UHF dual-channel 2-in-1 Base Module.
Clear LCD screen displaying Radio Frequency Level, Audio Frequency Level, Frequency, Channel, Mute, and Lock.
Wireless Infrared Auto Sync System.
Manual and Auto Frequency Select.
100 selectable channels.
Clear Voice technology delivers crystal clear sound.
Adjustable antennas for better signal receiving.
AA battery usage for easy handling.
Up to 8 hours of battery life.
Rack mountable.
TECH SPECS
2-IN-1 BASE MODULE & HANDHELD MICROPHONE:
Channel: 200 Channels
Frequency Range: UHF 480.100~529.850 MHz
Modulation Method: /4 -DQPSK
Sampling Ratio: 48kHz
Transmission Rate: 204.8Kbps
Dynamic Range: > 90dB
Total Harmonic Distortion: < 0.1%
Delay Time of Audio Transmission: <3ms
S/N Ratio: >96dB
Frequency Response: 30~20kHz
RX Sensitivity: < –94dBm
Unique ID Address: YES
Audio Output: 2 x XLR Port
Power Supply: DC 12V~18V with 500mA, AC 120V (For 220V, change to a 220V~240V DC power adaptor)
Receiver Dimensions (WxHxD): 8.7 x 2 x 7.1 (inches) / 22 x 5 x 18 (cm)
Package Dimensions (WxHxD): 15.6 x 12.2 x 2.7 (inches) / 39.5 x 31 x 6.8 (cm)
Shipping Weight: 4.6 lbs / 2.1 kg
UPC Code: 743062981275
FEATURES
Six-axis gyroscope sensor integrated onto each microphone.
Energy efficient microphones.
High Tech Auto-Mute function activates when falling motion is detected.
Sleep mode activates when microphone is left unattended.
Equipped with the latest wireless technology and UHF dual-channel in a 2-in-1 Base.
Clear LCD screen displays Radio Frequency, Volume, Channel, and Frequency.
Wireless Auto Sync System technology makes setting up a breeze.
Clear Voice technology delivers crystal clearer sound just like a wired microphone.
100 selectable channels for each microphone!
Adjustable antennas for better signal receiving.
AA batteries for easy usage.
Receiver Left / Right squelch knobs.
TECH SPECS
A. 2-IN-1 BASE MODULE
Channel: 100 Channels (total 200 Channels)
Frequency Range: UHF 602~652 MHz
Signal to Noise Ratio: > 90dB
Total Harmonic Distortion: < 0.5%
Band Width: < 250kHz
Frequency Response: 30Hz~19kHz +/-3dB
Sensitivity: ＞100dB
Effective Use Range: ＞50M
Receiver Shell: EIA standard 1/2U
Receiving Sensitivity: 2.0μV
Audio Output Level: Unbalanced Out: 0~+/-400mV; Balanced Out: 0~+/-200mV
Power Supply: DC 14V~22V with 500mA~1000mA, AC 120V (For 220V, you may need to change to a 220V~240V DC adaptor)
Consume Power: 5 Watts
Receiver Dimensions (WxHxD): 8.2 x 1.7 x 6 in /20.9 x 4.2 x 15.2 cm
Package Dimensions (WxHxD): 16.9 x 13.7 x 2.8 in /42.8 x 34.7 x 7.2 cm
Shipping Weight: 5.6 Lbs / 2.5 Kg
B. HANDHELD MICROPHONE
Transmitter Power: 5mW or 10mW (Switchable)
Osillation Mode: PLL
Harmonic Radiation: ≤-50dBc
Frequency Stability: ±0.005%，at 0～50℃
Battery Voltage: 2 x AA 1.5V Alkaline Battery
Continuous Using: 8 Hours (GP) 2 x AA 1.5V Battery
Power: DC 2.4~4.8V
Microphone Dimensions (WxH): 10.3 x 2.2 (inches) / 26.2 x 5.7 (cm)
UPC Code: 743062980933
FEATURES:
Power: 140W
Bluetooth version: 5.2
Play mode: BT, AUX, USB, disk
Blue tooth transmission 18m (open area)
Li-battery Capability: 36000mAh
Waterproof: IPX5
Power supply: Type-C port 5V/3A
Frequency range: 20Hz - 20KHz
Battery: Built-in lithium battery
Playtime: Up to 12 hours
Charging time: 9 hours
Dimension: L x H x D: 10*5*10
Weight: 10.5 Lbs
