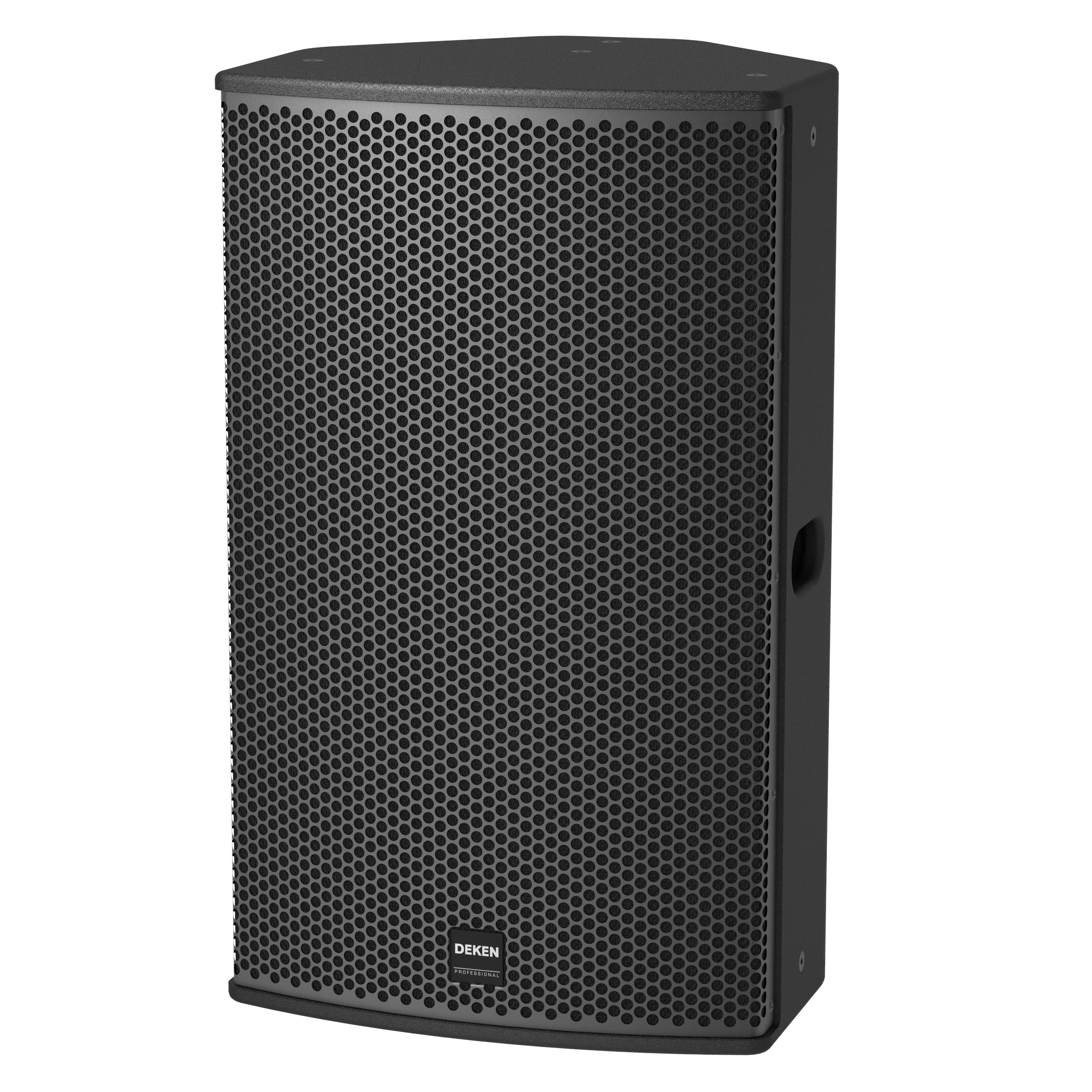

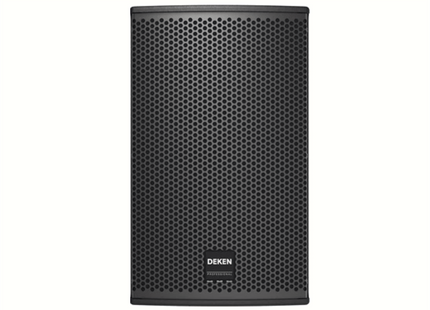

Description

FEATURES：

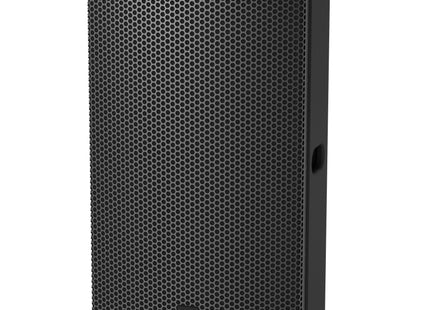

System type：2 unit 2-way full range frequency loudspeaker

Rated Power：500 W

Max power：1000W

Peak power：2000W

Nominal impedance：8 Ω

Recommended power amplifier output rating：600 W—1000W@8 Ω

Sensitivity（1W@1m）：98 dB

Max SPL（Pmax@1m）：125dB@500w (128dB@1000w)

Nominal coverage pattern ：90°H×70°V

Frequency response（-10dB）：50Hz—20KHz

Crossover modes：Passive

Speaker component：12″（305mm diameter 75mm voice coil）LF driver ×1
                                   1.7″（44mm voice coil）HF driver ×1

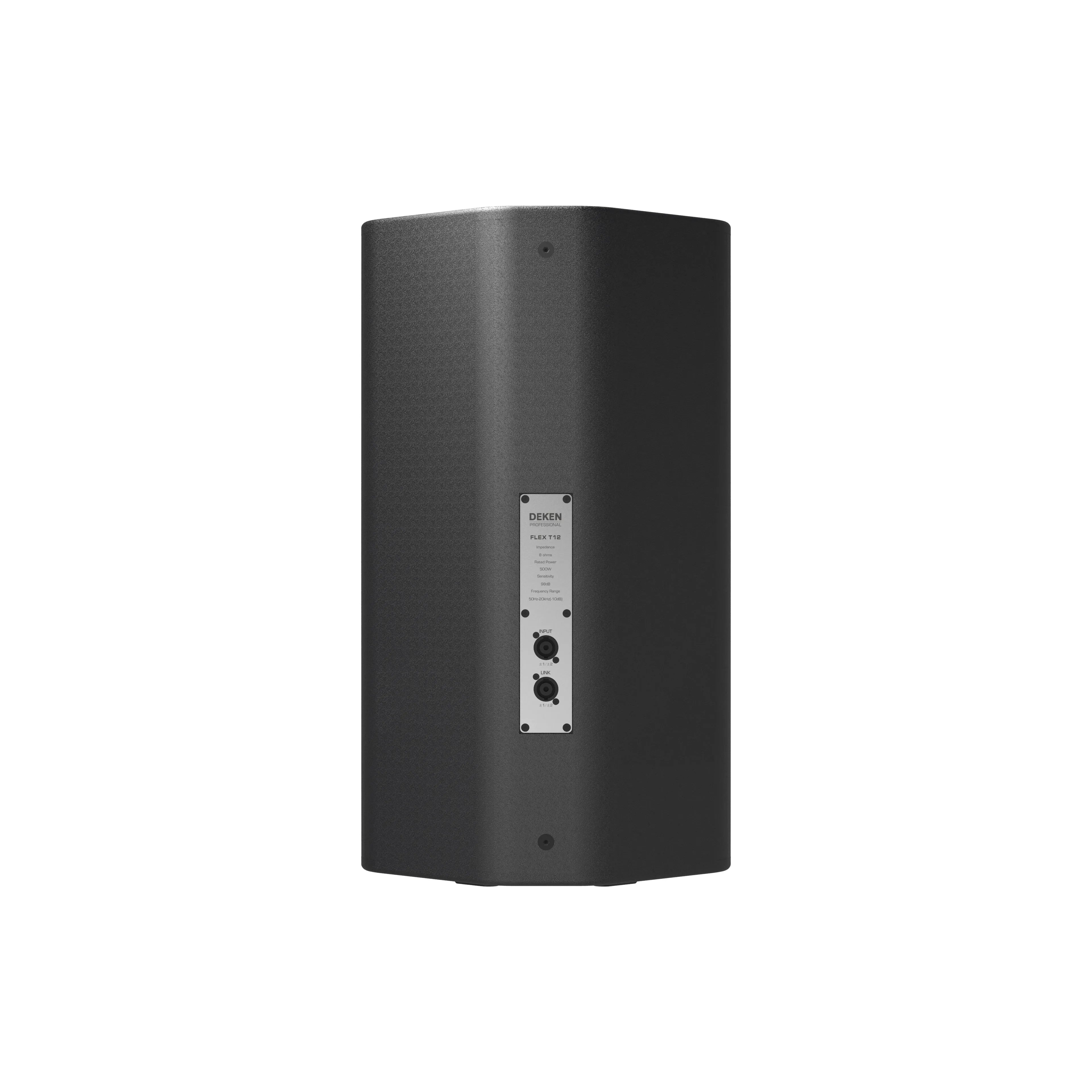

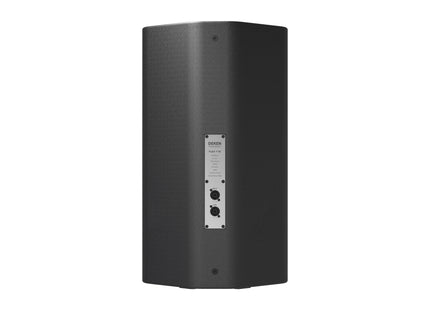

Connector：Speakon NL4×2（PIN1+/2+POS.  PIN1-/2-NEG.）

Enclosure：18 mm（0.7″）High quality birch plywood

Color：Default is black, other colors can be customized

Dimensions：W375mm x D340mm x H650mm

Weight(each)：21.50kg

Shipping weight：23.85kg

Reference applications: Conference rooms, multipurpose halls, churches, auditoriums, small shows
