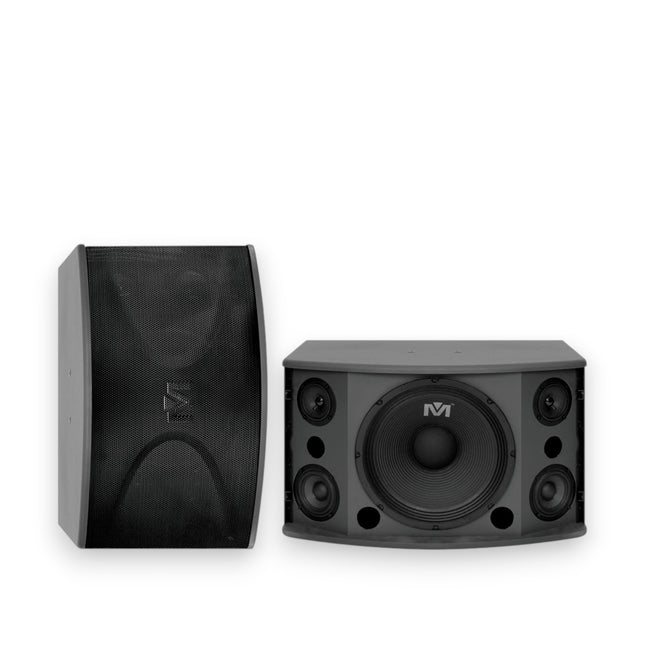

FEATURES 3-Way Full Range PVC/Plywood Speaker 3”x2 tweeters [paper cone high frequency drivers] 4”x2 tweeters [paper cone middle frequency drivers] 12”x1 woofer [low frequency woofer] High output SPL and sensitivity Copper wired voice coil Speaker input terminal (banana plug or insert type) Frequency response 25Hz~18kHz Sensitivity 93dB Front grill adjustable 180 degrees Cabinet design for FOH use Flexible and easy-to install configurations (wall, ceiling, under balcony) TECH SPECS Type: Front (3-Way Full Range) Max. Power Handling: 600 Watts Cabinet Type: PVC, Plywood Supported Fixture: Ceiling, Wall Mount, Floor Stand Woofer: 12 inches (1 unit) Tweeter: 3 inches (2 units: High Frequency x 2) / 4 inches (2 units: Middle Frequency x 2) Rated Impedance: 8 ohms Frequency Response: 25Hz ~ 18kHz ( ± 3 dB) Sensitivity: 93 dB/1W/1M Crossover Frequency: LF: 300Hz / HF: 6.3kHz Dimension (WxHxD): 24.1 x 13.8 x 13.6 in / 61.2 x 35 x 34.5 cm (each) Packing Dimension (WxHxD): 16.5 x 28 x 15.8 in  / 41.9 x 71.1 x 40 cm (each) Net Weight: 36 Lbs / 16.3 Kg (each) Shipping Weight: 41.6 Lbs / 18.9 Kg (each) UPC Code: 743062981664

Read more less

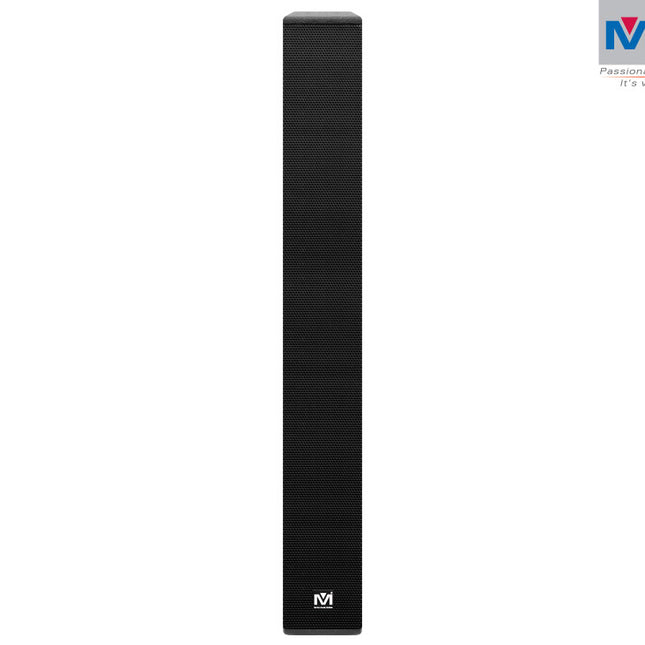

FEATURES 2-Way full range speaker 8 x 4” tweeter [1” voice oil mid/high unit] Lightweight aluminum enclosure Multi combinations and installations ways Delivering a smooth full frequency spectrum sound Portable/Compact Design Handling power: 300 Watts (RMS) @ 4 ohms, 600 Watts (PEAK) @ 4 ohms 2 x Speakon NL4 connector Protective grill: Black perforated steel Applications: Restaurants, clubs, bars, conference rooms, churches, schools and homes   TECH SPECS Type: Front Supported Fixture: Wall Mount, Floor Stand Tweeter: 4” (8 units) Peak Power: 600 Watts RMS Power: 300 Watts Rated Impedance: 8 ohms Frequency Response: 120Hz ~ 18kHz (-3dB) Sensitivity: 96dB/1W/1M Maximum SPL: 127 dB (by measurement) Dimension (WxHxD): 5.3 x 41.3 x 6.7 in / 13.5 x 105 x 17 cm Packing Dimension (WxHxD): 9.7 x 44.5 x 8.3 in / 24.5 x 113 x 21 cm Net Weight: 24.3 lbs / 11 kg Shipping Weight: 28.6 lbs / 13 kg UPC Code: 743062981619

Read more less

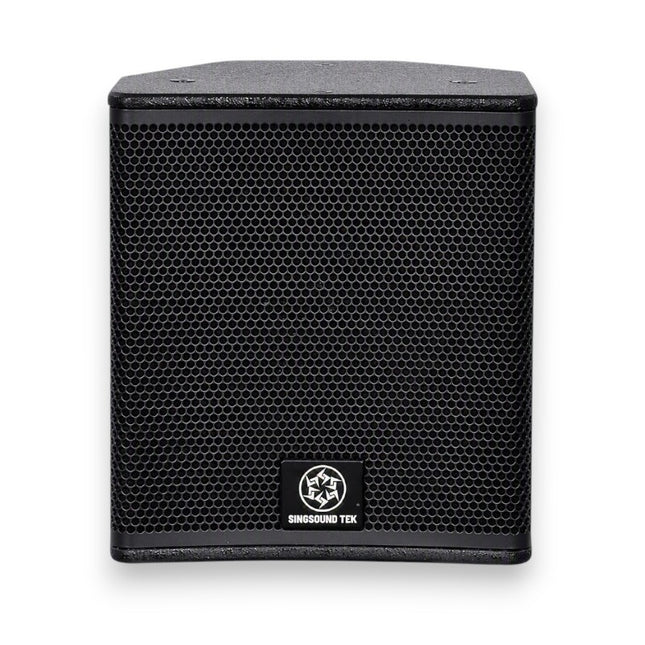

Singsound Tek S-8 8-Inch 2-Way Coaxial Speaker Specification Product Overview The S-8 is an 8-inch, 2-way coaxial speaker designed with a wood shell construction and a rated output power of 180W. It is designed in USA under Pending Patent # 99483836. Technical Specifications Specification Details Speaker Type 8-inch 2-way coaxial speaker Output Power 180W Radio Function No Shell Material Wood Power Source Passive Warranty 1 year Model Number S-8 Brand Name Singsound Tek  Patent Pending 99483836   Packaging and Delivery Item Details Packaging Details Aviation cabinet Selling Units Single item Single Package Size 24.5 × 27 × 32 cm Single Gross Weight 8.0 kg

Read more less

SPECIFICATIONS： System type：2 unit 2-way full range frequency loudspeaker Rated Power：550 W Max power：1100W Peak power：2200W Nominal impedance：8 Ω Recommended power amplifier output rating：700 W—1000 W@8 Ω Sensitivity（1W@1m）：100 dB Max SPL（Pmax@1m）：127 dB@550w(130dB@1100w) Nominal coverage pattern ：80°H×50°V Frequency response（-10dB）：45Hz—20KHz Crossover modes：Passive Speaker component：15″（380mm diameter 75mm voice coil）LF driver ×1                                    3″（75mm voice coil）HF driver ×1 Connector：Speakon NL4×2（PIN1+/2+POS.  PIN1-/2-NEG.） Enclosure：18 mm（0.7″）High quality birch plywood Color：Default is black, other colors can be customized Dimensions: W430mm x D385mm x H712mm Weight(each)：27.95 kg Shipping weight：30.85kg Reference applications: Conference rooms, multipurpose halls, churches, auditoriums, small shows

Read more less

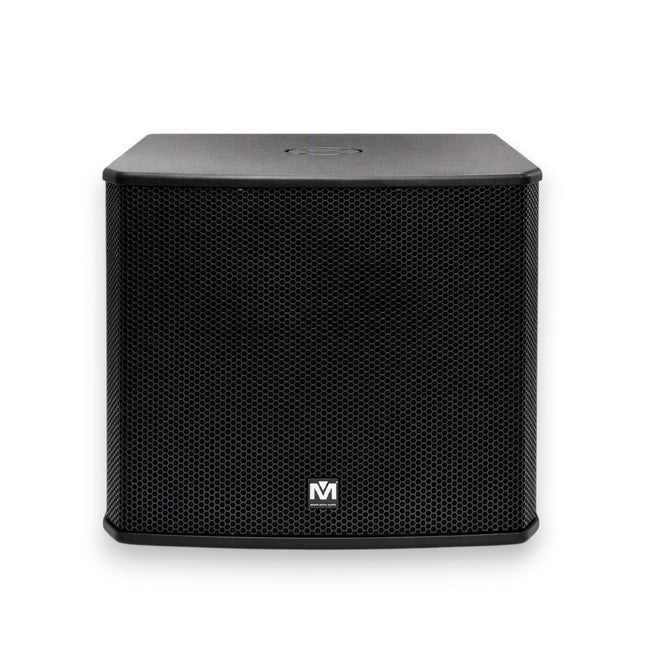

Features High output SPL and sensitivity 1 x 18” high power low-frequency transducer with 100mm voice coil Sensitivity 97dB, max SPL 124dB RMS 500W, peak 2000W Built-in power amplifier module Master volume control XLR input and output connectors Built-in variable crossover 80Hz~250Hz high cut Phase switch Computer-aided design to optimize frequency and phase response A cabinet designed for FOH use Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high-quality music reproduction Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet Powder-coated grill with foam backing Durable Polyurethane textured base paint   Tech Specs Type: Subwoofer Max. Power Handling: 2000 Watts Cabinet Type: Selected High-intensity Plywood Supported Fixture: Ground Woofer: 18” (1 unit) “Spot” Range: Exponential LF Horn Configuration Frequency Response: 45Hz ~ 250Hz Sensitivity: 97 dB Maximum SPL (1W @ 1m): 124dB/130dB (PEAK) Input Impedance: Balanced 20kΩ Rated Impedance: 8 ohm Connector: 1 x Combo 6.35/XLR Input, 1 x XLR Output Highlighted Features: 100mm Voice Coil Dimensions (WxHxD): 23.6×21.7×25.2 in / 60x55x64 cm Packing Dimensions (WxHxD): 29.1×25.6×27.6 in / 74x65x70 cm (each) Net Weight: 99 Lbs / 45 Kg (each) Shipping Weight: 112.2 Lbs / 51 Kg (each) UPC Code: 743062981404

Read more less

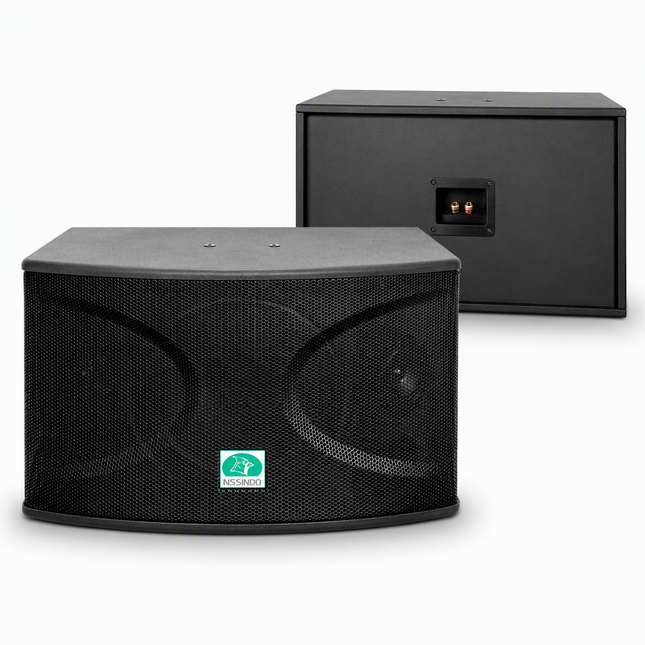

Features: 2-Way Full Range PVC/Plywood Speaker 3”x2 tweeters [paper cone high frequency drivers] 10”x1 woofer [low frequency woofer] High output SPL and sensitivity Copper wired voice coil Speaker input terminal (banana plug or insert type) Frequency response 45Hz~17kHz Sensitivity 92dB Front grill adjustable 180 degrees Cabinet design for FOH use Flexible and easy-to install configurations (wall, ceiling, under balcony) Specifications: Type: Front (2-Way Full Range) Max. Power Handling: 720 Watts Cabinet Type: PVC, Plywood Supported Fixture: Ceiling, Wall Mount, Floor Stand Woofer: 10 inches (1 unit) Tweeter: 3 inches (2 units) Rated Impedance: 8 ohms Frequency Response: 45Hz~17kHz ( ± 3 dB) Sensitivity: 92 dB/1W/1M Crossover Frequency: LF: 300Hz / HF: 6.3kHz Dimension (WxHxD): 19.8 x 11.5 x 10.6 in / 50.2 x 29.2 x 27 cm Packing Dimension (WxHxD): 26.2 x 23.2 x 14.6 in / 66.5 x 59 x 37 cm (pair) Net Weight: 22 lbs / 10 kg (each) Shipping Weight: 48.5 lbs / 22 kg (pair) UPC Code: 743062980605

Read more less

SPECIFICATIONS： System type: 2 unit 2-way coaxial inverting Rated power：450W Max Power：900W Peak power：1800W Nominal impedance：8 Ω Recommended power amplifier output rating：500W—800W@8 Ω Nominal sensitivity（1W@1m）：97dB Max SPL（Pmax@1m）：123dB@450W(126 dB @900W,) Frequency response（-10dB）：58Hz—20KHz Nominal coverage pattern（-6dB）：90°H×90°V Speaker component：Ferrite HF driver 1.75″（44mm voice coil）×1 Ferrite LF driver 12″(300mm diameter, 65mm voice coil) ×1 Crossover modes： Passive 2-way Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.） Enclosure：18mm（0.7″）High quality birch plywood Color：Default is black, other colors can be customized Dimensions：W550mm x D442.7mm x H356mm Weight(each) ：17.55kg Shipping weight：19.65kg Reference applications:：Multipurpose halls, bars, stadiums, all the applications that need to be monitored

Read more less

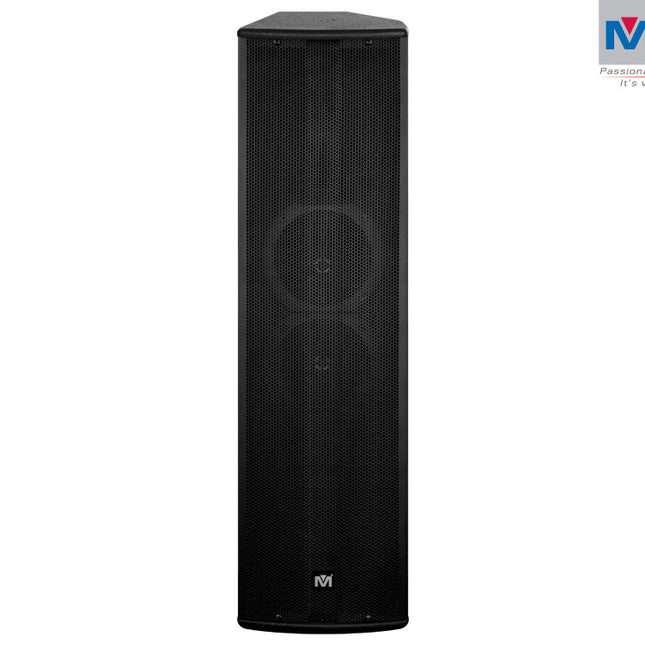

FEATURES 2-Way full range speaker 2 x 6” woofers [low frequency] 2 x 1” compression driver (tweeters [high frequency]) with PEI diaphragm Dynamic Fusion Technology™ (DFT) High SPL and sensitivity Passive configuration 140° x 140° wide angle coverage pattern Max. Power Handling: 320 Watts Frequency response 80Hz ~ 20kHz Sensitivity 94dB 1 x NL4 connector (included in package) Computer-aided design to optimize frequency and phase response Speaker Stand Adapter Bracket is included in package Powder coated grill Durable polyurethane textured base paint Suitable for all kind of rock bar, entertainment bar, night club, and live performances Flexible and easy-to install configurations (wall, ceiling, under balcony)   TECH SPECS Peak Power: 320 Watts RMS Power: 160 Watts Cabinet Type: MDF Wood Supported Fixture: Wall Mount, Floor Stand Woofer [Low Frequency]: 6” (2 units) Tweeter [Middle Frequency]: N/A Tweeter [High Frequency]: 1” compression driver (2 units) Rated Impedance: 8 ohms Frequency Response: 80Hz ~ 20kHz (±3dB) Sensitivity: 94 dB/1W/1M Crossover Frequency: 2.4KHz Dimensions (WxHxD): 8.3 x 29.1 x 7.6 in / 21.2 x 74 x 19.4 cm Packing Dimensions (WxHxD): 12.4 x 31.1 x 11.6 in / 31.5 x 79 x 29.5 cm Net Weight: 24.3 Lbs / 11 Kg Shipping Weight: 29.8 Lbs / 13.5 Kg UPC Code: 743062980940

Read more less

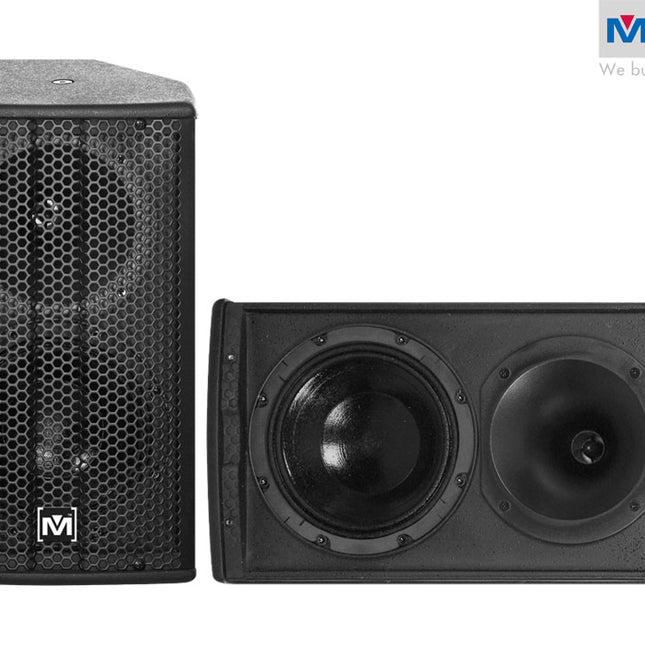

FEATURES High SPL and sensitivity 1 x 6.5” high power low-frequency transducer 1 x 1.7” PEI diaphragm compression driver Passive configuration 140° x 140° wide-angle coverage pattern 1 x NL4 connector (included in the package) Computer-aided design to optimize frequency and phase response Multi-purpose cabinet design for FOH or monitor use Use as a main system with or without sub-speaker augmentation Suitable for speech and background music Flexible and easy-to-install configurations (wall, ceiling, under balcony) U bracket and a top holder of the speaker stand are included in the package Powder coated grill Durable Polyurethane textured base paint   TECH SPECS Type: Front (2-Way Full Range) Max. Power Handling: 160 Watts Cabinet Type: PVC, Plywood Supported Fixture: Ceiling, Wall Mount, Floor Stand Woofer [Low Frequency]: 6.5 inches (1 unit) aluminum alloy cone Spot Range: 1.7” Compression driver with PEI diaphragm Rated Impedance: 8 ohms Frequency Response: 80Hz ~ 18kHz ( ± 3 dB) Sensitivity: 90 dB/1W/1M Crossover Frequency: 3.2kHz Speaker input: 1 x Speakon NL4 connector Recommended Usage: Rear or post vocal/monitor speaker One Bass Reflex Dimension (WxHxD): 8.4×14.3×7.6 in / 21.2×36.4×19.4 cm (each) Packing Dimension (WxHxD): 21.3×18.3×11.5 in / 54.1×46.5×29.3 cm (pair per box) Net Weight: 14 lbs / 6.4 kg (each) Shipping Weight: 34.4 lbs / 15.6 kg (pair per box) UPC Code: 743062980315

Read more less

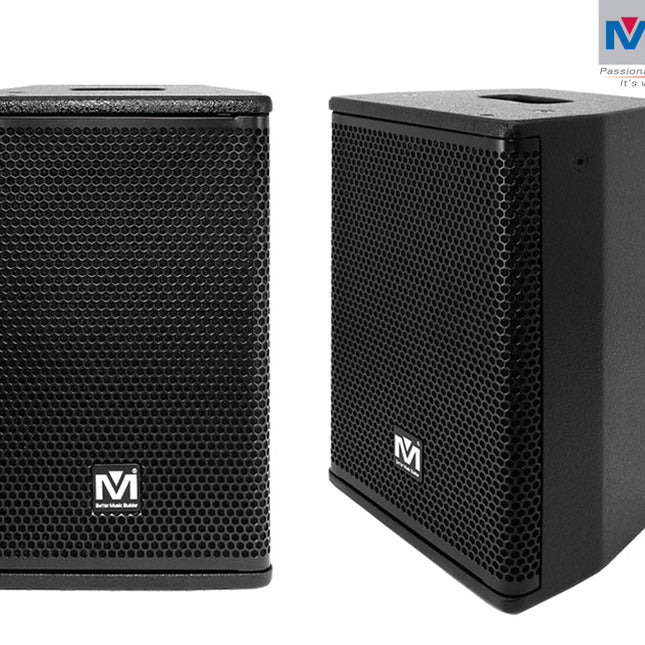

FEATURES 2-Way full range speaker 1 x 8” professional woofer 1 x 1.4” compression driver with PEI diaphragm Dynamic Fusion Technology™ (DFT) High SPL and sensitivity Speaker input: 1 x Speakon NL4 connector Frequency response: 76Hz~20kHz Sensitivity: 122dB (1m/1W) Handling power: 200 Watts (RMS) @ 8 ohms, 400 Watts (PEAK) @ 8 ohms Computer-aided design to optimize frequency and phase response phase feature Independent crossover circuit provides low distortion and interfere Convenient handle on speaker box Protective grill: Black perforated steel Flexible and easy-to install configurations (wall, ceiling, under balcony) Applications: Restaurants, clubs, bars, conference rooms, churches, schools and homes   TECH SPECS Type: Front Cabinet Type: High Intensity Plywood Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand Woofer: 8 inches (1 unit) Max. Power Handling: 400 Watts Rated Impedance: 8 ohms Spot Range: 1.4” Compression Driver with PEI Diaphragm Dispersion Angle: H90° x V60° (-6dB) Frequency Response: 76Hz~20kHz (-3dB) Maximum SPL: 96 dB Sensitivity: 122dB (1m/1W) Speaker input: 1 x Speakon NL4 connector Highlighted Features: Dynamic Vocal Effect Dimension (WxHxD): 10.4×16.3×9.5 in / 26.3×41.3×24 cm (each) Packing Dimension (WxHxD): 20.5x18x11.4 in / 52×45.5×29 cm (pair per box) Net Weight: 18.7 Lbs / 8.5 Kg (each) Shipping Weight: 41.9 Lbs / 19 Kg (pair per box) UPC Code: 743062981602

Read more less

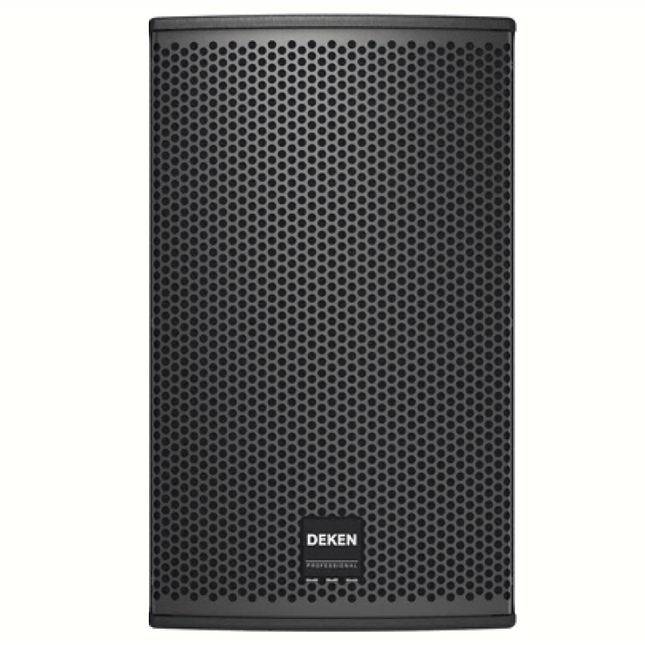

FEATURES： System type：2 unit 2-way full range frequency loudspeaker Rated Power：500 W Max power：1000W Peak power：2000W Nominal impedance：8 Ω Recommended power amplifier output rating：600 W—1000W@8 Ω Sensitivity（1W@1m）：98 dB Max SPL（Pmax@1m）：125dB@500w (128dB@1000w) Nominal coverage pattern ：90°H×70°V Frequency response（-10dB）：50Hz—20KHz Crossover modes：Passive Speaker component：12″（305mm diameter 75mm voice coil）LF driver ×1                                   1.7″（44mm voice coil）HF driver ×1 Connector：Speakon NL4×2（PIN1+/2+POS.  PIN1-/2-NEG.） Enclosure：18 mm（0.7″）High quality birch plywood Color：Default is black, other colors can be customized Dimensions：W375mm x D340mm x H650mm Weight(each)：21.50kg Shipping weight：23.85kg Reference applications: Conference rooms, multipurpose halls, churches, auditoriums, small shows

Read more less

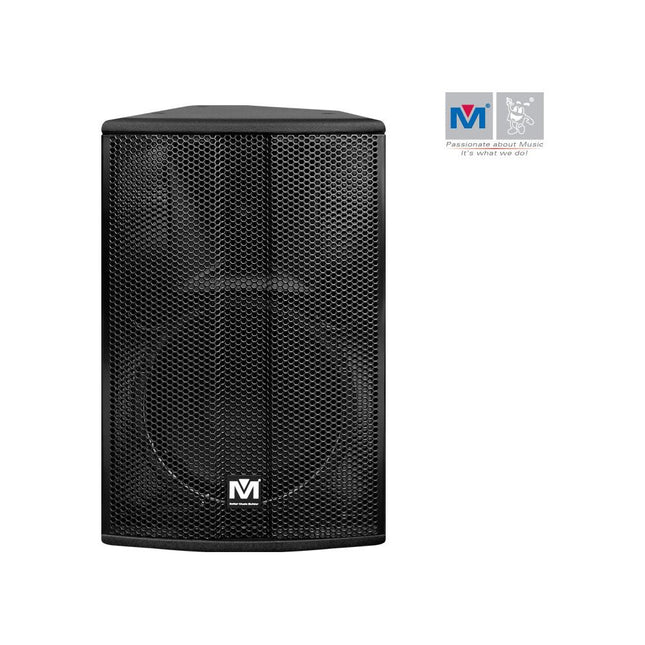

FEATURES 2-Way full-range passive speaker 1 x 10” high power low-frequency transducer 1 x 1.7” titanium diaphragm compression driver 1 x NL4 connector Dynamic Fusion Technology™ (DFT) High SPL and sensitivity 55~100° x 50° controlled coverage pattern Frequency response 70Hz~20kHz Sensitivity 94dB Computer-aided design to optimize frequency and phase response Multi-purpose cabinet design for FOH or monitor use Integral 35mm pole mount receptacle for stand or vertical installation Combine with any Better Music Builder high-power sub speaker for extended low frequency, high-quality music reproduction Powder coated grill An Independent crossover circuit provides low distortion and interferer Suitable for all kinds of rock bars, entertainment bars, nightclubs, all kinds of living performances, and portability Flexible and easy-to-install configurations (wall, ceiling, under balcony)   TECH SPECS Type: Front Power Rating: Peak 800W; RMS 400W Cabinet Type: High-Intensity Plywood Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand Woofer: 10 inches (1 unit) Rated Impedance: 8 ohms Spot Range: Compression driver with 1.7” titanium diaphragm (1 unit) Frequency Response: 70Hz ~ 20kHz (±3dB) Sensitivity: 94dB/1W/1M Crossover Frequency: 1.8 kHz Dispersion: 55~100° x 50° controlled coverage pattern DC Impedance: 5.6 Ohm THD: <3% Highlighted Features: Dynamic Vocal Effect Dimension (WxHxD): 13×19.8×12.1 in / 33×50.2×30.8 cm (each) Packing Dimension (WxHxD): 16.9×24.5×16.1 in / 43×62.2×40.8 cm (each) Net Weight: 37.8 Lbs / 17.1 Kg (each) Shipping Weight: 44 Lbs / 20 Kg (each) UPC Code: 743062981718

Read more less

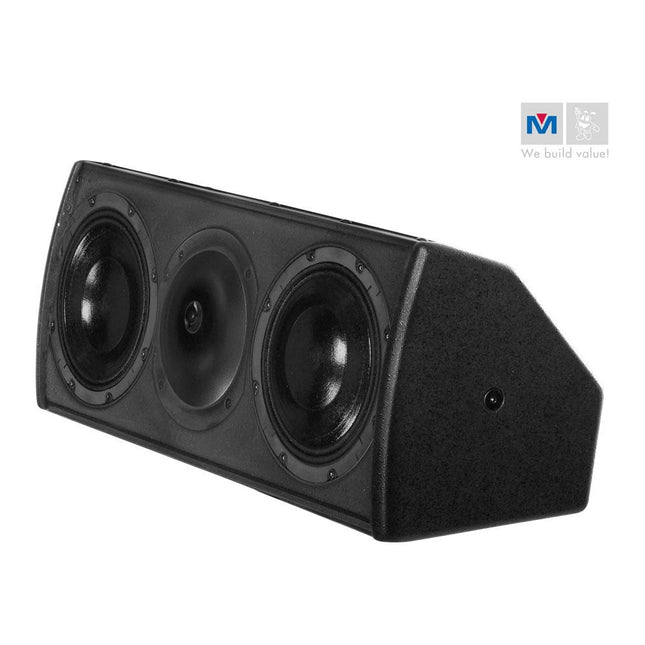

FEATURES High SPL and sensitivity 2 x 6.5” high power low-frequency transducer 1 x 1” PEI diaphragm compression driver Passive configuration 140° x 140° wide-angle coverage pattern 1 x NL4 connector (included in the package) Computer-aided design to optimize frequency and phase response Multi-purpose cabinet design for FOH or monitor use Use as a main system with or without sub-speaker augmentation Suitable for speech and background music Flexible and easy-to-install configurations (wall, ceiling, under balcony) U bracket and a top holder of the speaker stand are included in the package Powder coated grill Durable Polyurethane textured base paint   TECH SPECS Type: Front (2-Way Full Range) Max. Power Handling: 320 Watts Cabinet Type: PVC, Plywood Supported Fixture: Ceiling, Wall Mount, Floor Stand Woofer [Low Frequency]: 6.5 inches (2 unit) aluminum alloy cone Spot Range: 1” Compression driver with PEI diaphragm Rated Impedance: 8 ohms Frequency Response: 70Hz ~ 18kHz ( ± 3 dB) Sensitivity: 93 dB/1W/1M Crossover Frequency: 3kHz Speaker input: 1 x Speakon NL4 connector Recommended Usage: Rear or post vocal/monitor speaker One Bass Reflex Dimension (WxHxD): 8.4×21.3×7.6 in / 21.2×54.1×19.4 cm (each) Packing Dimension (WxHxD): 23.3×11.9×12.3 in / 59.2×30.2×31.2 cm(single unit per box) Net Weight: 22 lbs / 10 Kg (each) Shipping Weight: 27 lbs / 12.2 kg (single unit per box) UPC Code: 743062980322

Read more less

FEATURES Driver: 10 inch woofer (1 full-range woofer) 3 inch tweeter (2 tweeters) Copper wired voice coil Double magnet (woofer & tweeter)   Cabinet: Color: Black PVC layer, plywood 2-way full-range design Front Grill: adjustable 180 degrees Woofer in middle, tweeters on left and right of woofer Mountable screws (8mm Alan screw) top of cabinet (allow for wall/ceiling mounting) Mountable screws (8mm Alan screw) bottom of cabinet (allow mounts on floor-stand) Wire inputs located on rear of cabinet (double banana type)   TECH SPECS Recommended Usage: Main speaker (maximum 500 sq ft.) Type: 2-Way full-range (floor-stand or wall/ceiling mounted) Woofers: Single 10 inches Tweeters: Dual 3 inches Single Bass Reflex Gold-Plated Brass Inputs (double MDP Banana Premium type) Frequency Response: 40 Hz~ 20 kHz Sensitivity: 90 dB Input Power Maximum: 450 Watts Crossover Frequencies: 2 kHz Nominal Impedance: 8 ohm Dimensions (WxHxD): 19.8 x 11.5 x 11 inches Packing Dimensions (WxHxD): 26 x 23 x 14.5 inches (pair) Net Weight: 22.6 Lbs / 10.3 Kg (each) Shipping Weight: 50.8 Lbs / 23 Kg (pair per box) UPC Code: 743062980193
