Description

FEATURES

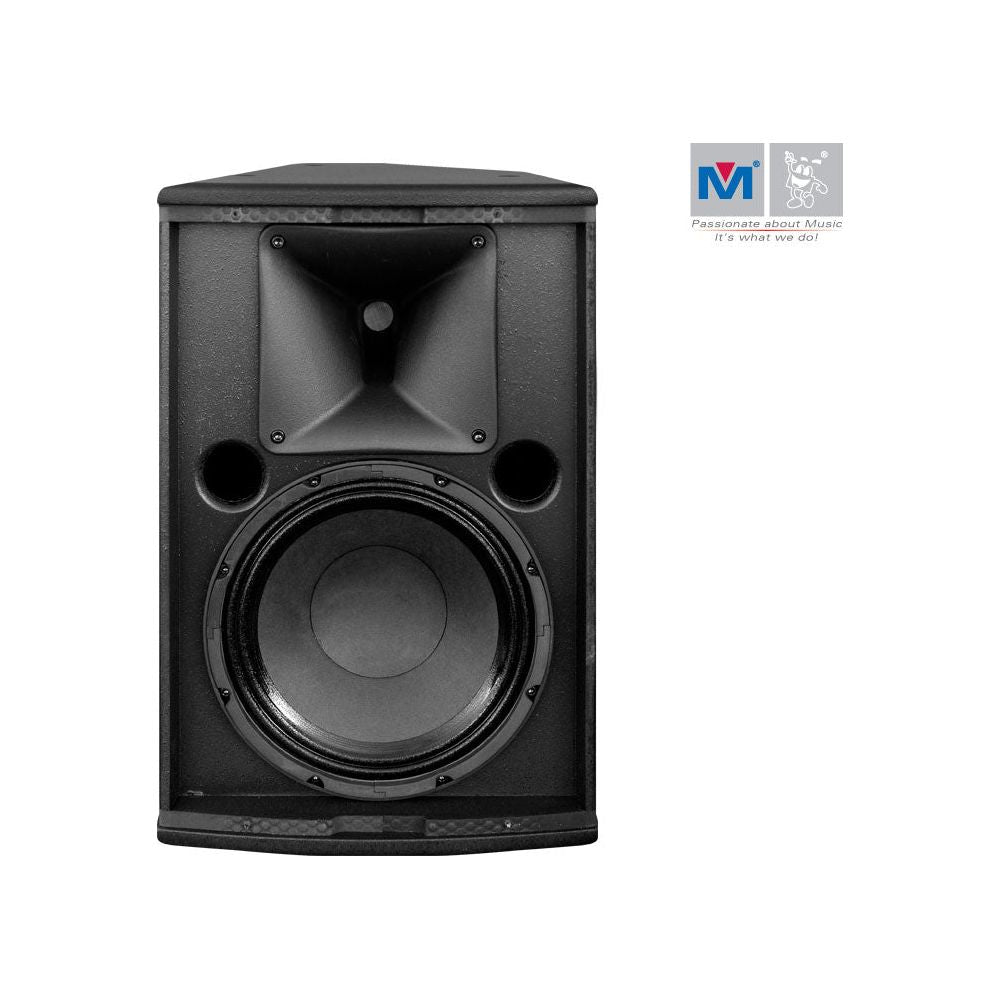

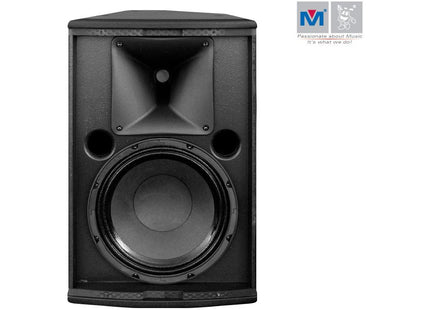

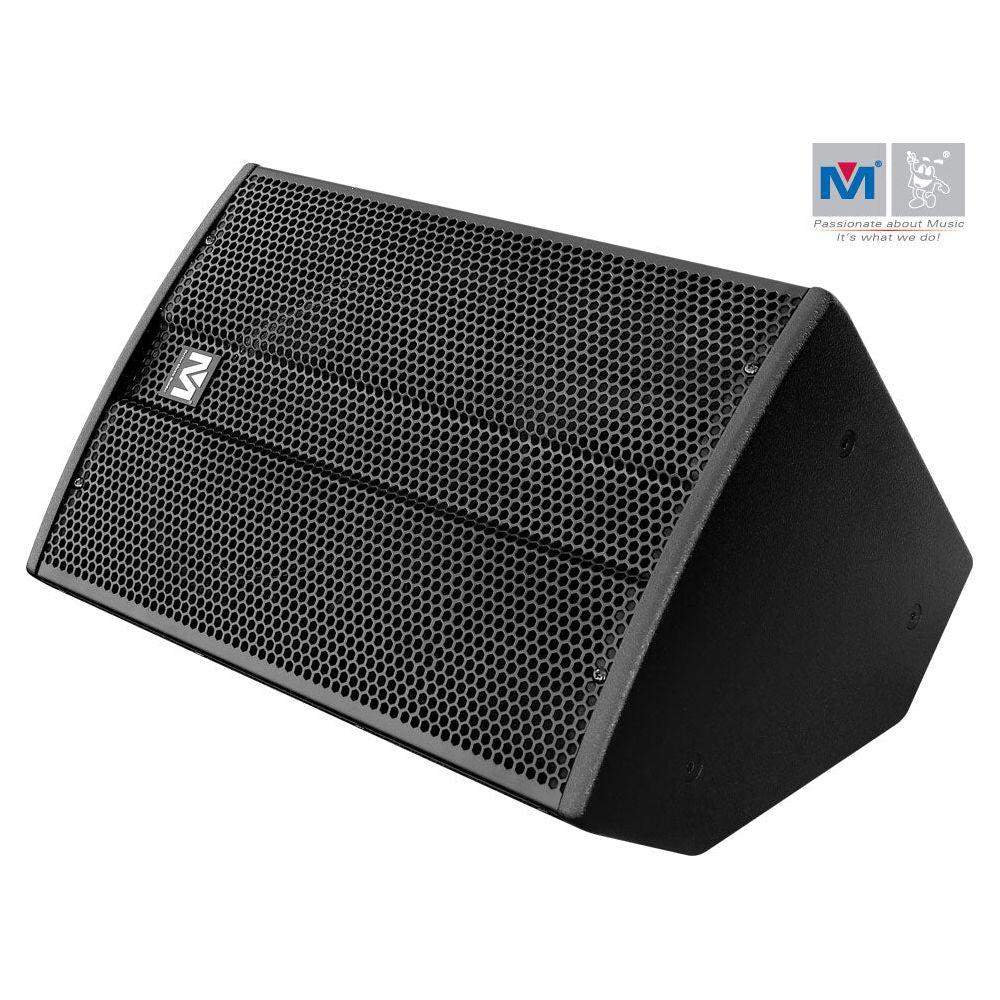

• 2-Way full-range passive speaker
• 1 x 10” high power low-frequency transducer
• 1 x 1.7” titanium diaphragm compression driver
• 1 x NL4 connector
• Dynamic Fusion Technology™ (DFT)
• High SPL and sensitivity
• 55~100° x 50° controlled coverage pattern
• Frequency response 70Hz~20kHz
• Sensitivity 94dB
• Computer-aided design to optimize frequency and phase response

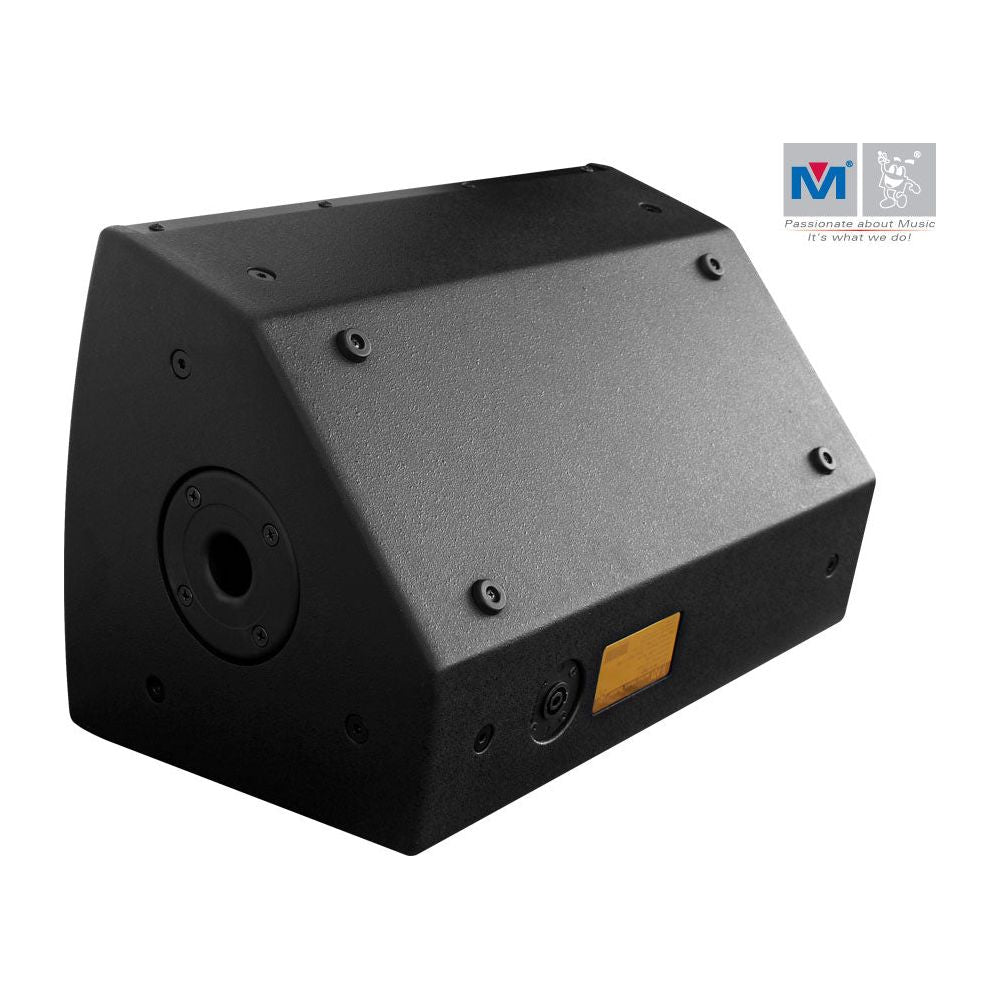

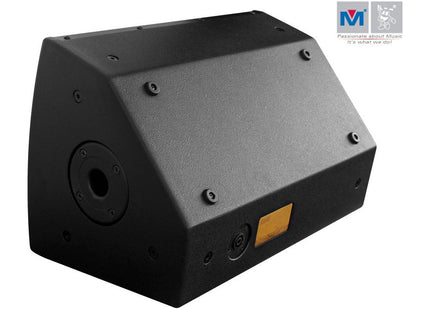

• Multi-purpose cabinet design for FOH or monitor use

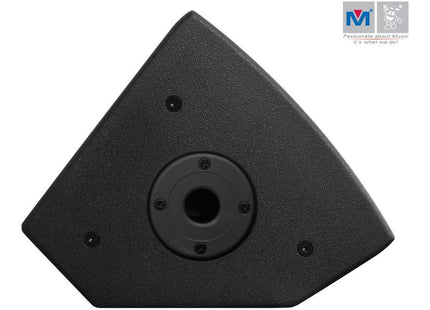

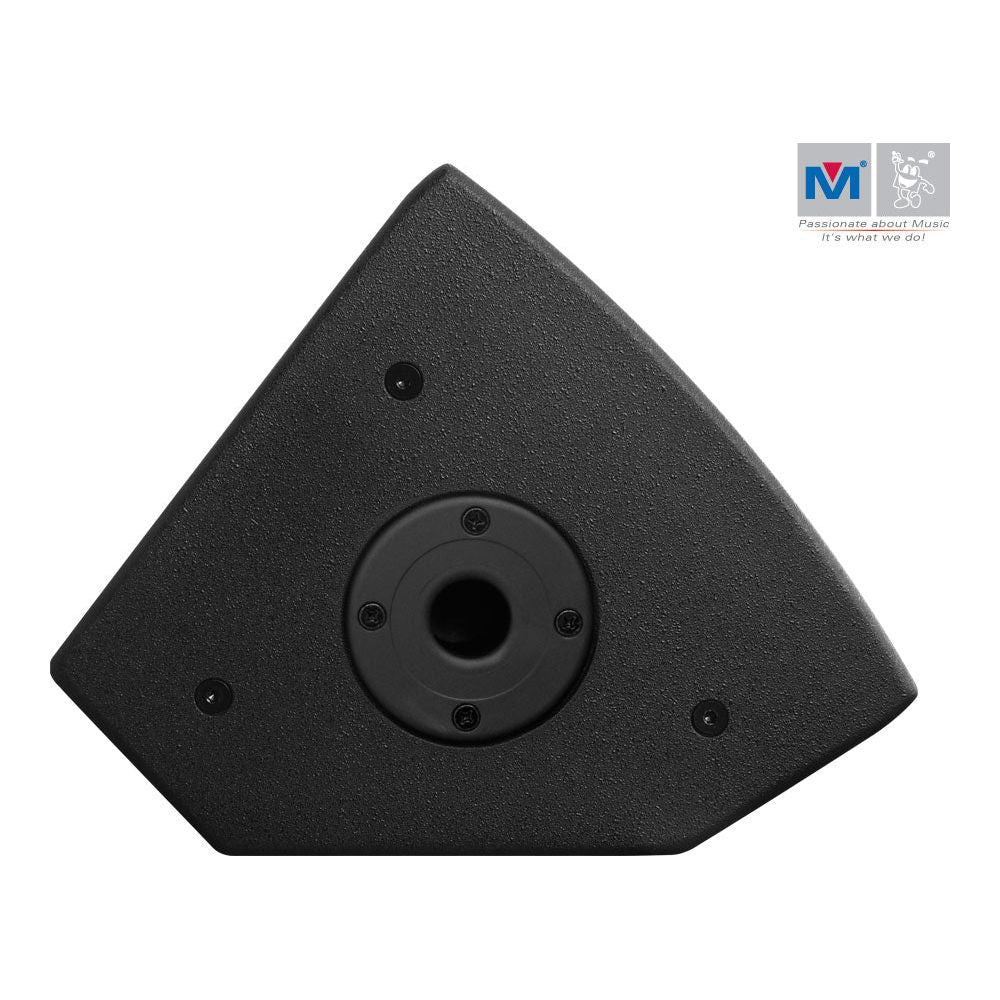

• Integral 35mm pole mount receptacle for stand or vertical installation

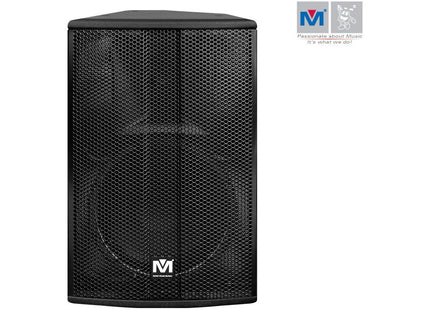

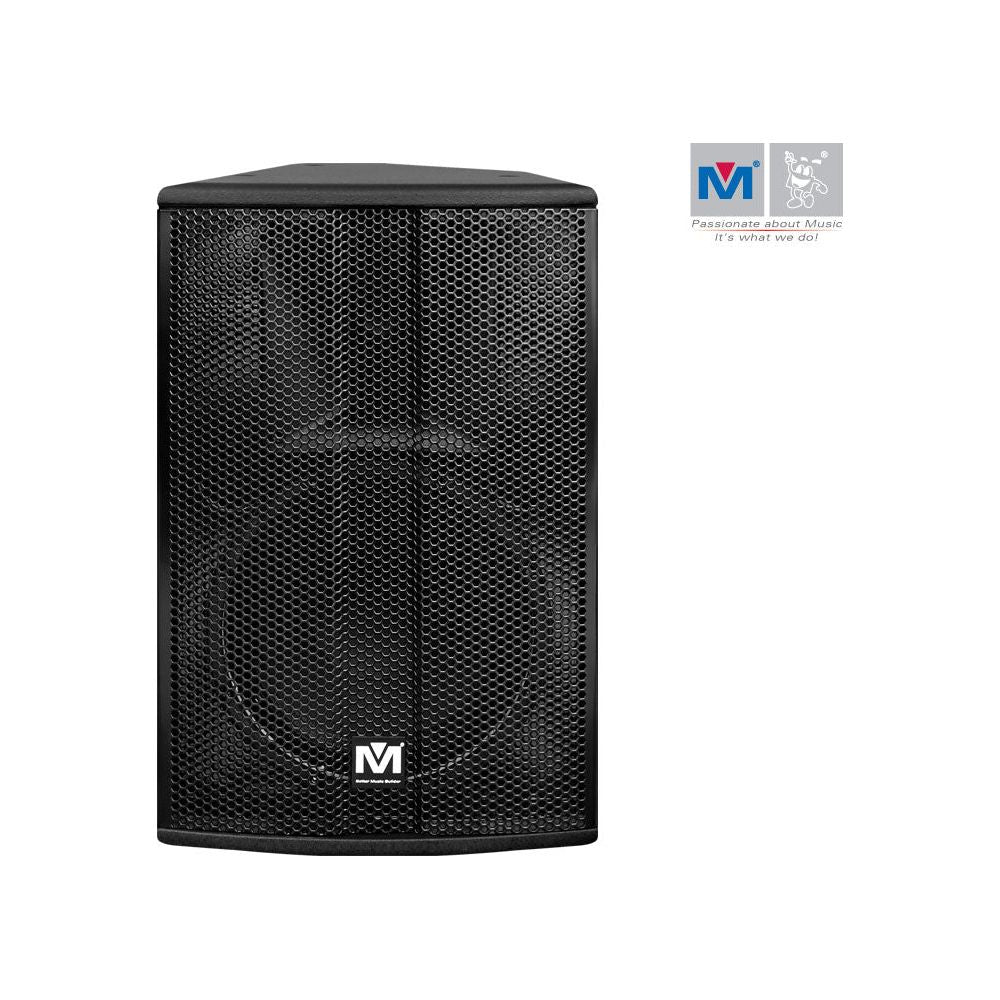

• Combine with any Better Music Builder high-power sub speaker for extended low frequency, high-quality music reproduction Powder coated grill
• An Independent crossover circuit provides low distortion and interferer
• Suitable for all kinds of rock bars, entertainment bars, nightclubs, all kinds of living performances, and portability
• Flexible and easy-to-install configurations (wall, ceiling, under balcony)

TECH SPECS

• Type: Front
• Power Rating: Peak 800W; RMS 400W
• Cabinet Type: High-Intensity Plywood
• Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
• Woofer: 10 inches (1 unit)
• Rated Impedance: 8 ohms
• Spot Range: Compression driver with 1.7” titanium diaphragm (1 unit)
• Frequency Response: 70Hz ~ 20kHz (±3dB)
• Sensitivity: 94dB/1W/1M
• Crossover Frequency: 1.8 kHz
• Dispersion: 55~100° x 50° controlled coverage pattern
• DC Impedance: 5.6 Ohm
• THD: <3%
• Highlighted Features: Dynamic Vocal Effect
• Dimension (WxHxD): 13×19.8×12.1 in / 33×50.2×30.8 cm (each)
• Packing Dimension (WxHxD): 16.9×24.5×16.1 in / 43×62.2×40.8 cm (each)
• Net Weight: 37.8 Lbs / 17.1 Kg (each)
• Shipping Weight: 44 Lbs / 20 Kg (each)
• UPC Code: 743062981718
