Description

FEATURES

• High SPL and sensitivity

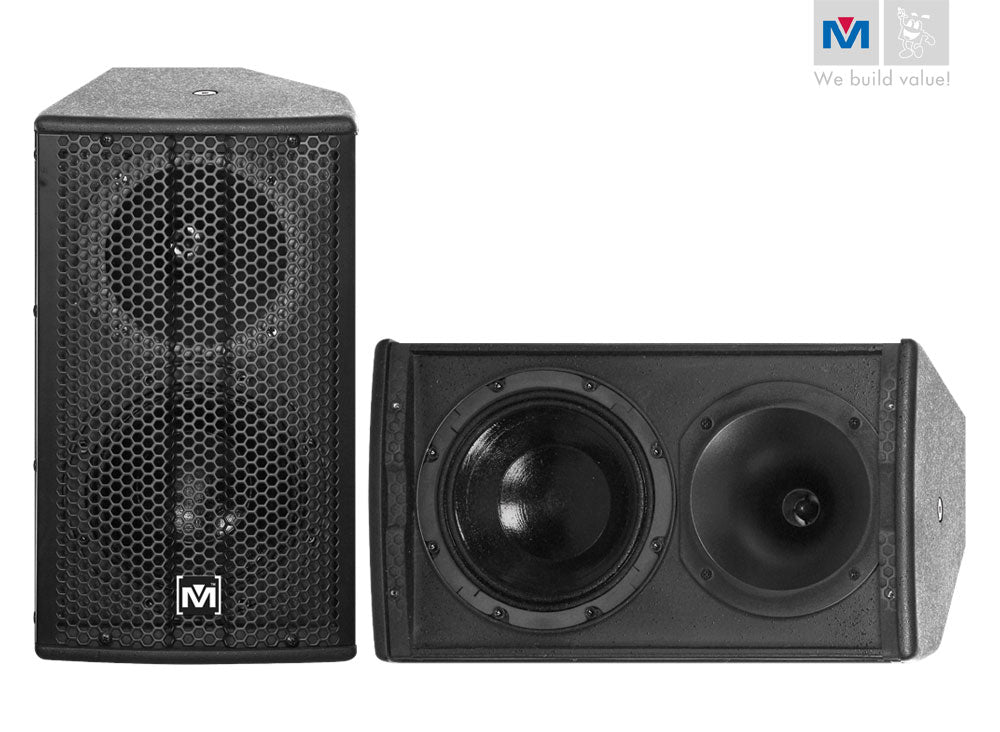

• 1 x 6.5” high power low-frequency transducer
• 1 x 1.7” PEI diaphragm compression driver
• Passive configuration
• 140° x 140° wide-angle coverage pattern
• 1 x NL4 connector (included in the package)
• Computer-aided design to optimize frequency and phase response

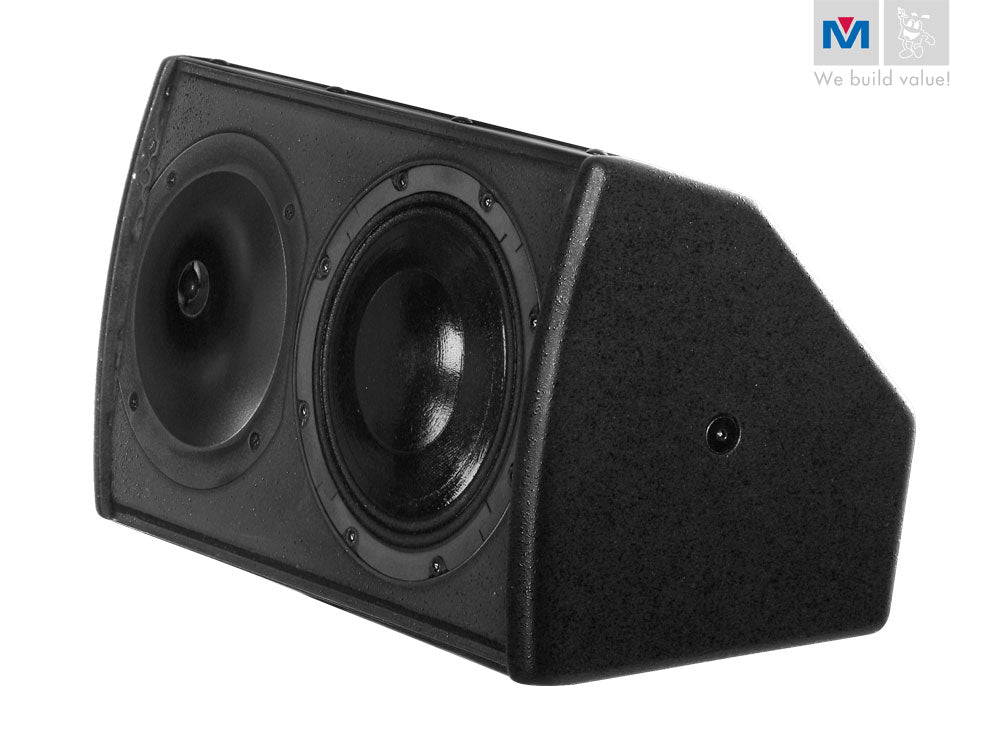

• Multi-purpose cabinet design for FOH or monitor use
• Use as a main system with or without sub-speaker augmentation
• Suitable for speech and background music
• Flexible and easy-to-install configurations (wall, ceiling, under balcony)
• U bracket and a top holder of the speaker stand are included in the package
• Powder coated grill
• Durable Polyurethane textured base paint

TECH SPECS

• Type: Front (2-Way Full Range)
• Max. Power Handling: 160 Watts
• Cabinet Type: PVC, Plywood
• Supported Fixture: Ceiling, Wall Mount, Floor Stand
• Woofer [Low Frequency]: 6.5 inches (1 unit) aluminum alloy cone
• Spot Range: 1.7” Compression driver with PEI diaphragm
• Rated Impedance: 8 ohms
• Frequency Response: 80Hz ~ 18kHz ( ± 3 dB)
• Sensitivity: 90 dB/1W/1M
• Crossover Frequency: 3.2kHz

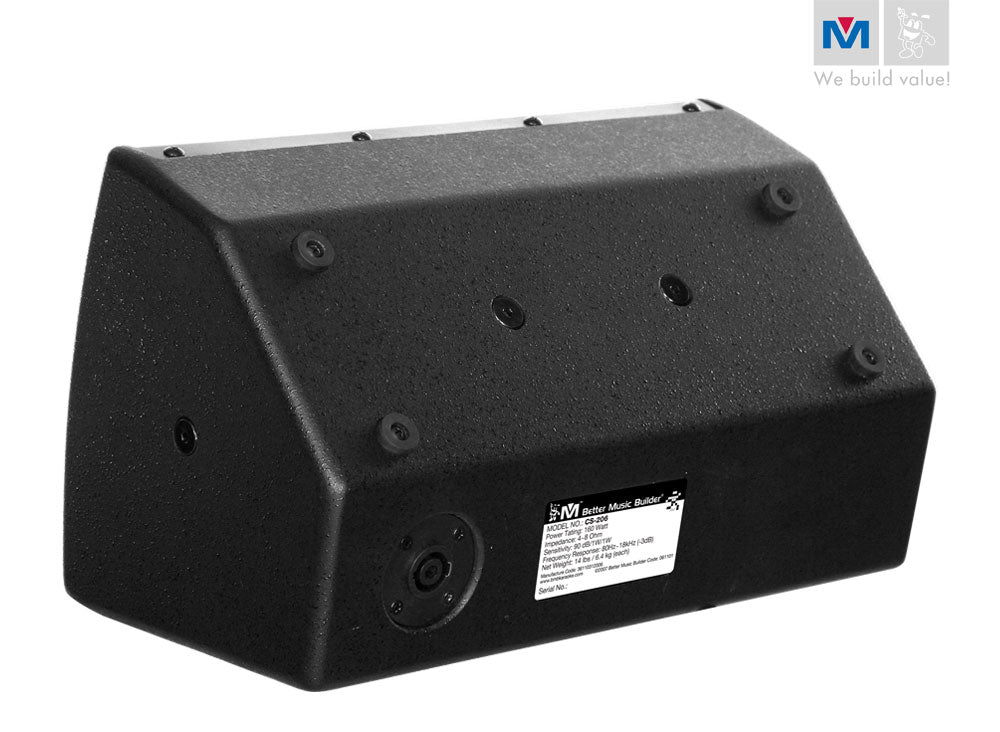

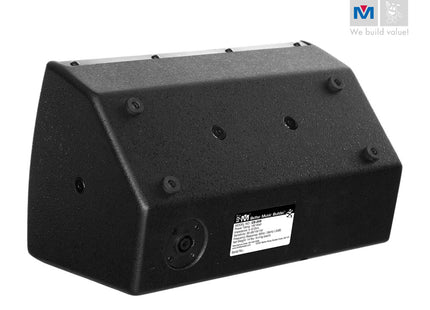

• Speaker input: 1 x Speakon NL4 connector
• Recommended Usage: Rear or post vocal/monitor speaker
• One Bass Reflex

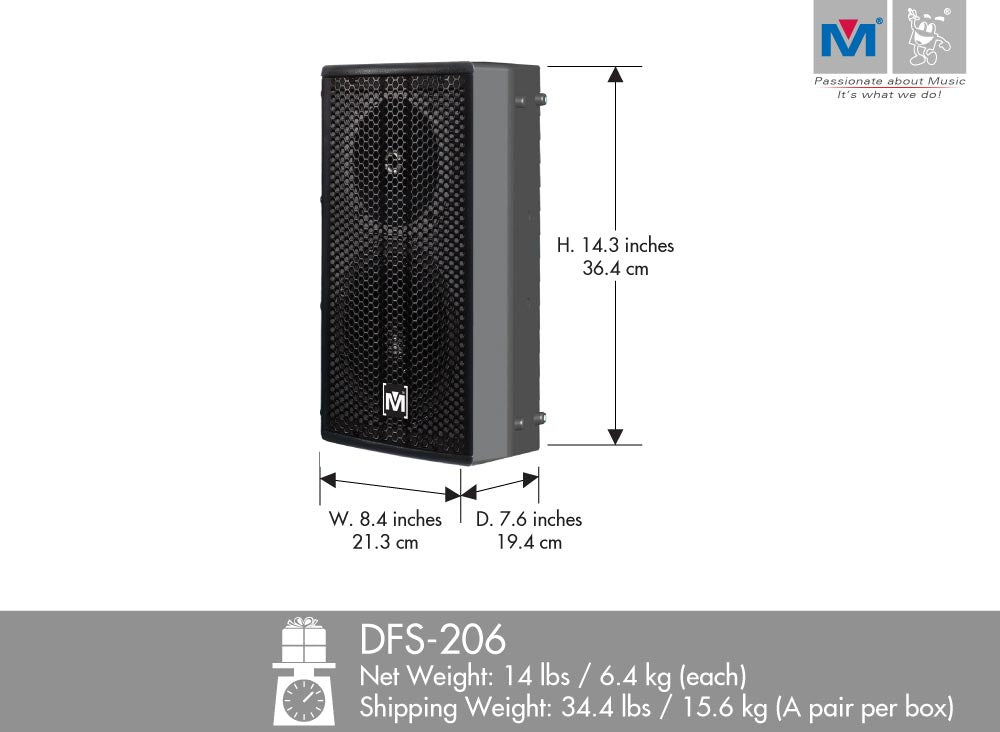

• Dimension (WxHxD): 8.4×14.3×7.6 in / 21.2×36.4×19.4 cm (each)
• Packing Dimension (WxHxD): 21.3×18.3×11.5 in / 54.1×46.5×29.3 cm (pair per box)
• Net Weight: 14 lbs / 6.4 kg (each)
• Shipping Weight: 34.4 lbs / 15.6 kg (pair per box)
• UPC Code: 743062980315

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
