Description
SPECIFICATIONS：

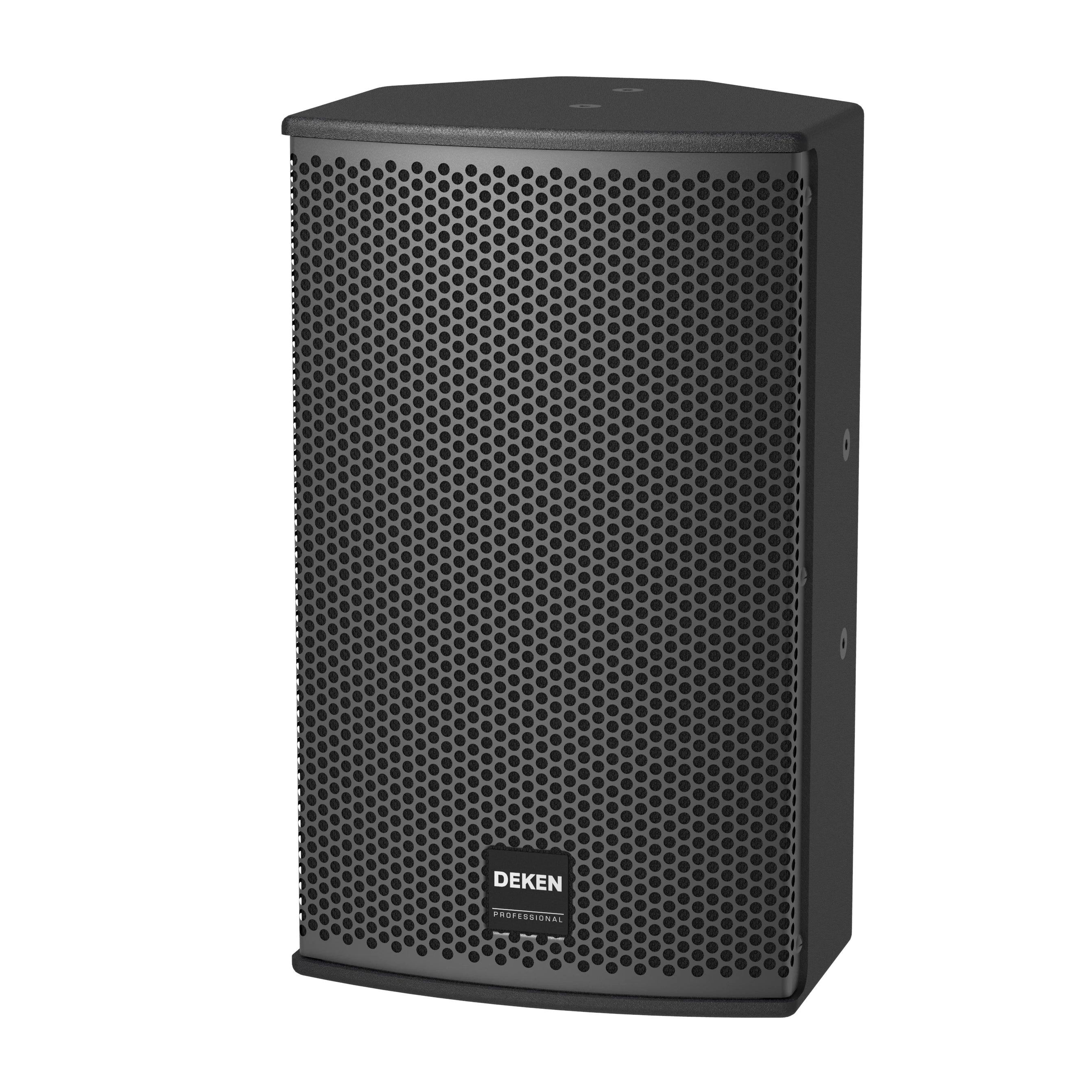

System type：2 unit 2-way full range frequency loudspeaker
Rated Power：550 W
Max power：1100W
Peak power：2200W
Nominal impedance：8 Ω
Recommended power amplifier output rating：700 W—1000 W@8 Ω
Sensitivity（1W@1m）：100 dB
Max SPL（Pmax@1m）：127 dB@550w(130dB@1100w)
Nominal coverage pattern ：80°H×50°V
Frequency response（-10dB）：45Hz—20KHz
Crossover modes：Passive
Speaker component：15″（380mm diameter 75mm voice coil）LF driver ×1
3″（75mm voice coil）HF driver ×1

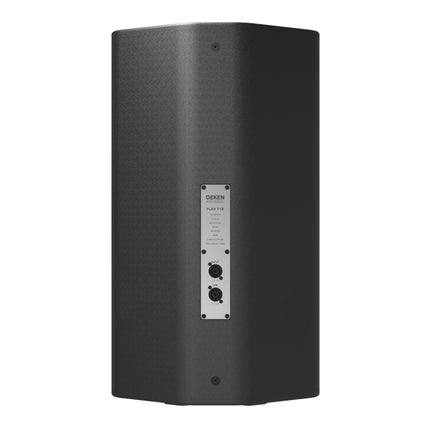

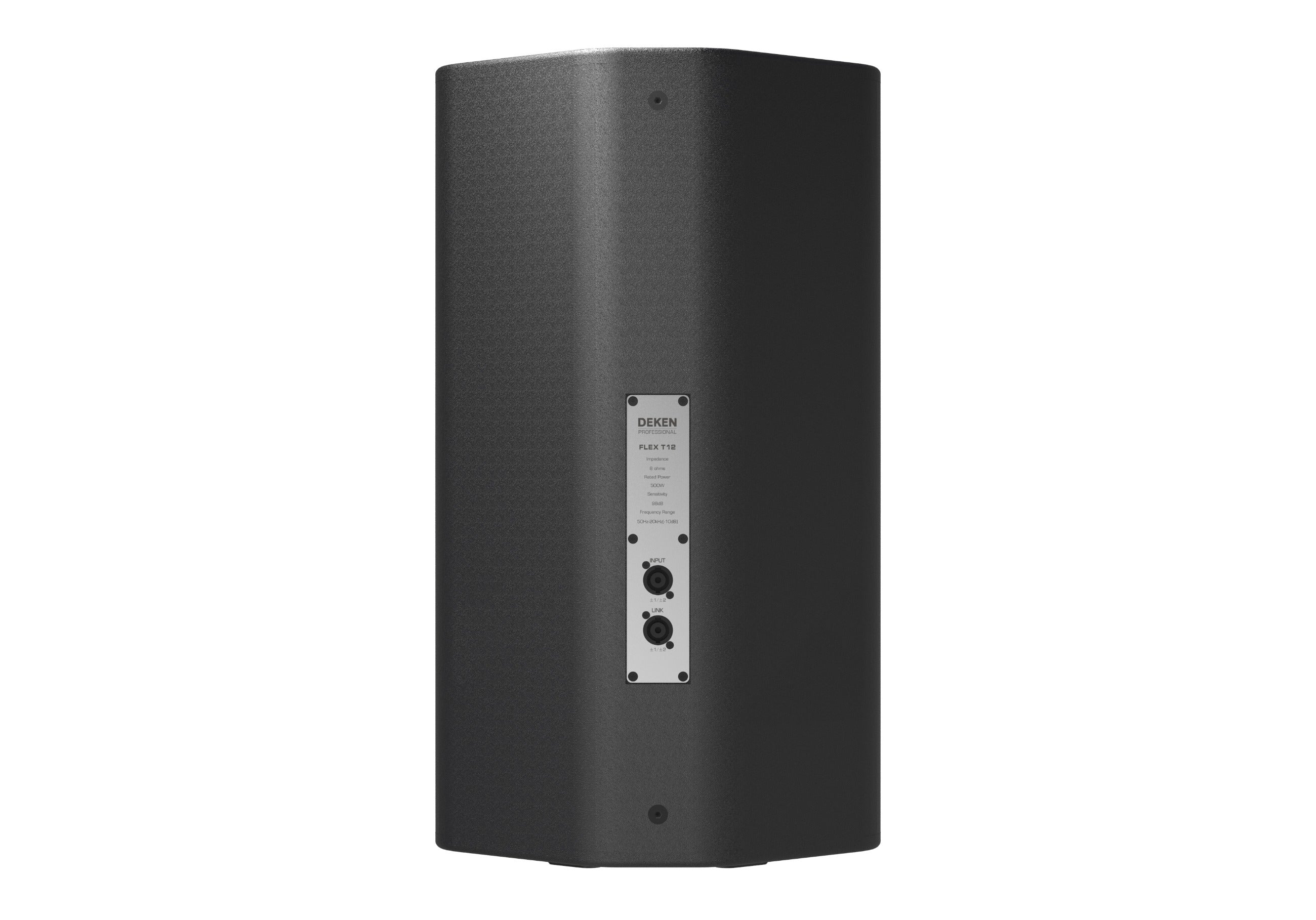

Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：18 mm（0.7″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions: W430mm x D385mm x H712mm
Weight(each)：27.95 kg
Shipping weight：30.85kg
Reference applications: Conference rooms, multipurpose halls, churches, auditoriums, small shows
