Description

FEATURES

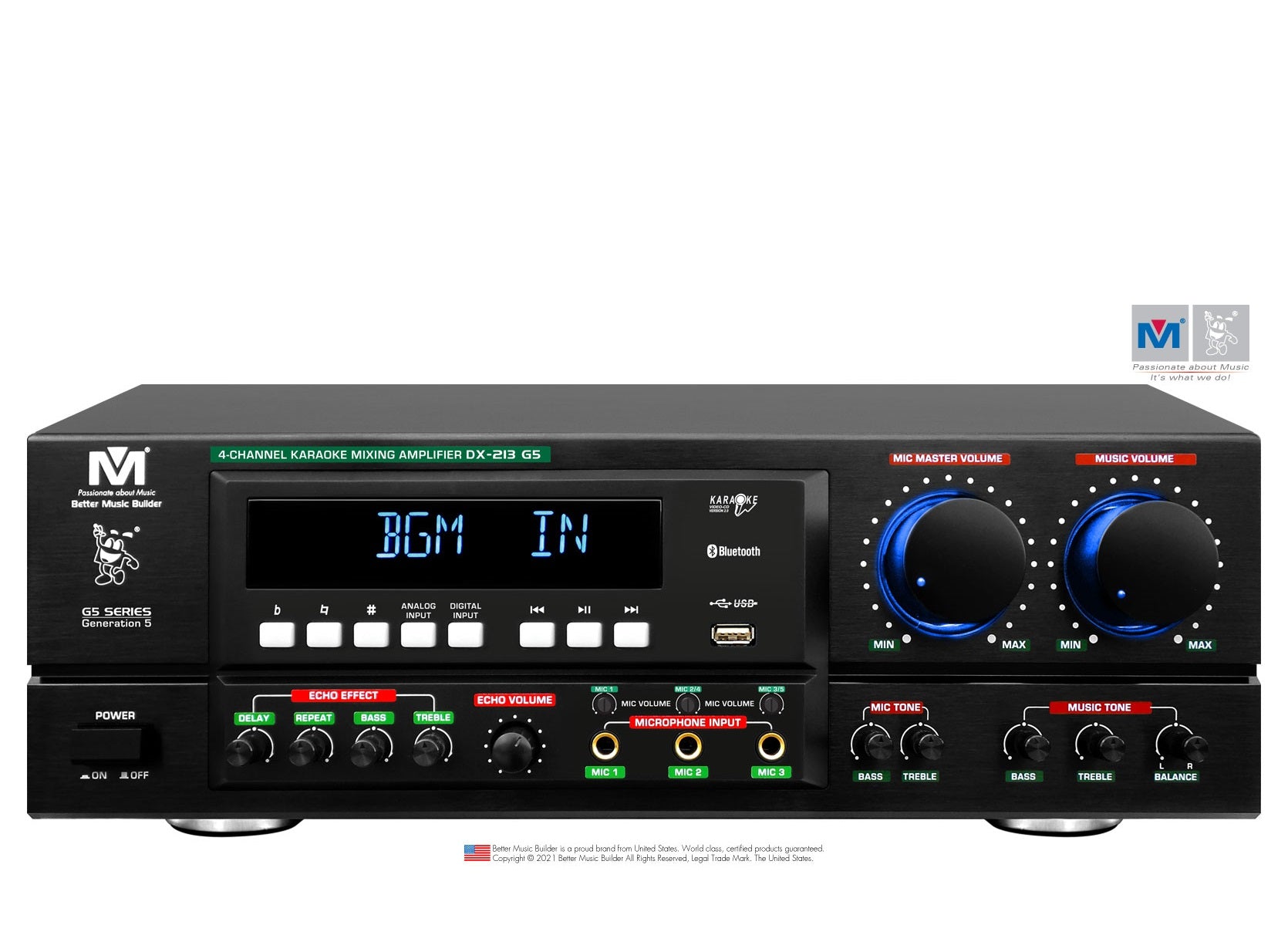

• 800 Watts 4-Channel Mixing Amplifier
• Multimedia Expansion Control (USB reader)
• Bluetooth 5.0 allows you to wirelessly stream music from all your favorite compatible devices
• Accepts USB flash drives and SD memory cards
• USB interface for playing digital music file
• 3 Band Microphone Equalizer
• Microphone Exciter
• 2 Band Music Equalizer (Bass, Treble) +/- 12dB adjustment for mid and bass and +/- 10dB adjustment for treble.
• Music Balance: Balances audio output of the speakers from left to right
• Microphone Echo Effect controls: Delay, Repeat, Bass and Treble
• 9-Steps key control
• Individualized volume control for echo, microphone and music
• Available to adjust frequency 80Hz~250Hz of Subwoofer channel.
• Smart Audio Input Select (SAIS): priority selection of audio inputs.
• Audio input sensitivity (for AUTO input setting).
• Microphone input sensitivity.
• Inputs: 5 microphone inputs (3 front and 2 rear), 2 digital audio input (Optical/Coaxial), 3 audio inputs (BGM/VOD/DVD) and 3 video inputs (BGM/VOD/DVD).
• Outputs: 1 subwoofer output, 2 line output (Music/Preamp) and 1 video output (monitor).
• Compatible to CD/CDG/CDR/MP3G & HD Video.
• Dedicated wireless microphone connection input in 2 groups. The volume of each group can be adjusted separately, with each group providing +8dB/-12dB adjustment for treble, middle, and bass.
• Music “Mute” allows the microphone to be active while the music is off.
• Smart fan

TECH SPECS

• Source Inputs: BGM, VOD, DVD, AUX
• Power Output: Peak 800W; RMS 400W (1kHz, 8 ohm); 600W (1kHz, 4 ohm)
• Microphone Inputs: 5 (Front x 3, Rear x 2)
• Digital Audio Inputs: 2 (Optical/Coaxial)
• Audio Inputs: 3 (RCA jack)
• Line Output: 2 (RCA jack)
• Video Inputs: 3 (RCA jacks)
• Video Output: 1 (RCA jacks)
• Subwoofer Output: 1 (RCA jack)
• Bluetooth: Version 5.0
• Digital Audio File Compatibility: MP3, WMA and More
• Maximum USB Support: Unlimited
• Frequency Response: 20Hz~20kHz, ± 1 dB
• THD: <0.007
• Music Input Section
  • S/N Ratio: 80 dB
  • Input Sensitivity/Impedance: 250mV
  • HF (increase/attenuate): ±8 dB
  • LF (increase/attenuate): ±8 dB
• Mic. Input Section
  • Input Sensitivity/Impedance: 20mV
• Tone Electrical Circuit:
  • MUSIC PART:
    • BASS Control: 100Hz ± 10dB
    • TREBLE Control: 10kHz ± 10dB
  • MIC PART:
    • BASS Control: +6dB/-6dB
    • TREBLE Control: +6dB/-6dB
• Standard Power: AC 110V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
• Dimensions (WxHxD): 17×5.1×14.1 in / 43×13.5×35.8 cm
• Packing Dimensions (WxHxD): 20.1×8.1×18.5 in / 51×20.6×47 cm
• Net Weight: 25.8 Lbs / 11.7 Kg
• Shipping Weight: 30.8 Lbs / 14 Kg
• UPC Code: 743062981565
