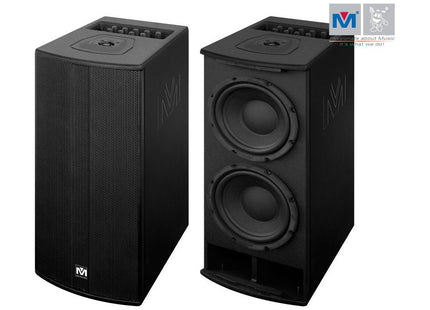

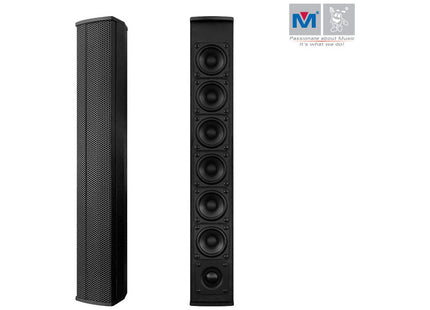

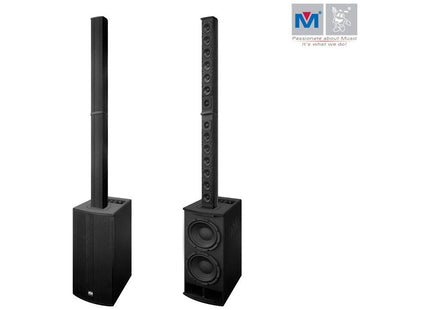

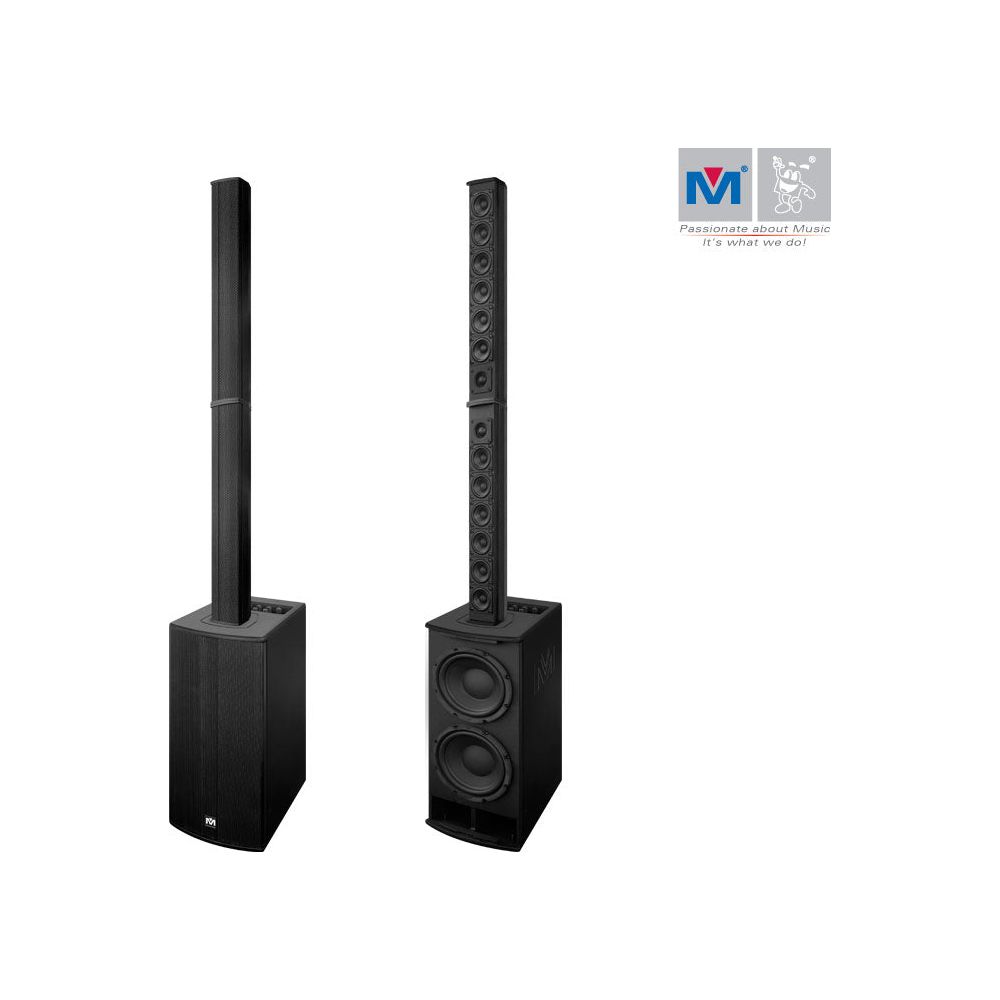

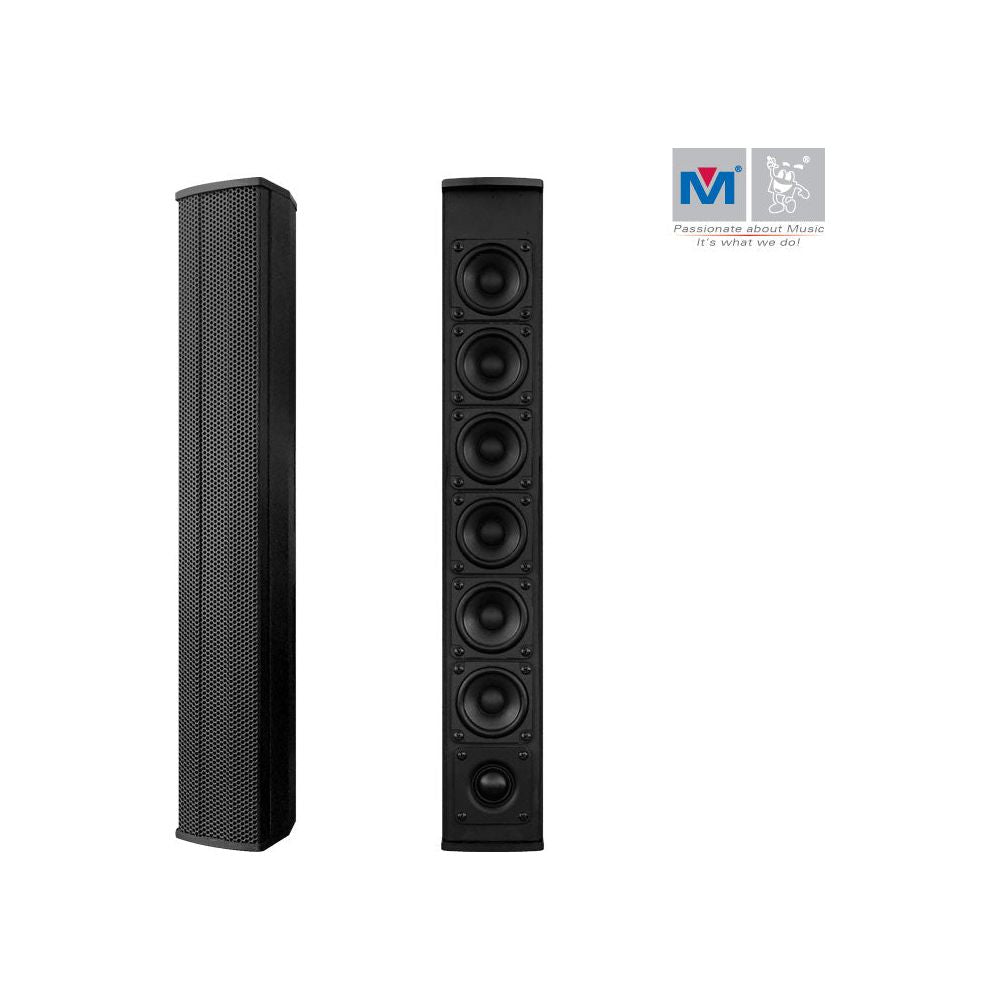

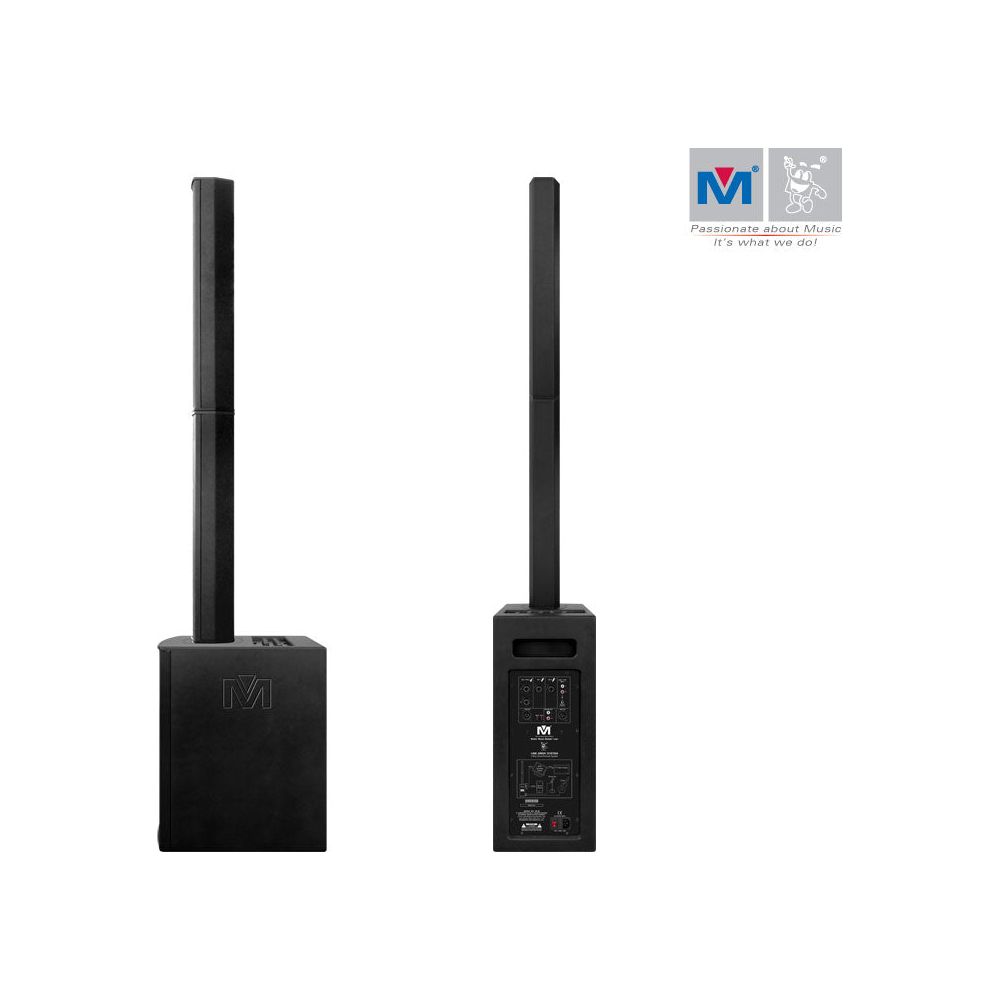

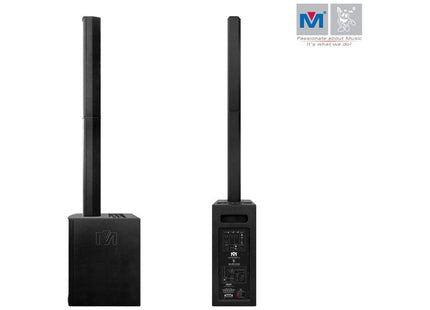

M-8 LINE ARRAY 3-WAY ACTIVE/POWERED SPEAKER (ONE SET: 2 X COLUMN SPEAKER + 1 X SUBWOOFER)

FEATURES

• 3-Way Full Range
• 1”x2 tweeters [paper cone high frequency drivers]
• 2.75”x12 tweeters [paper cone middle frequency drivers]
• 8”x2 woofer [low frequency woofer]
• Column Speakers: RMS 250W, Peak 500W; Subwoofer: RMS 400W, Peak 800W
• Built-In Power Amplifier
• Portable/Compact Design
• Average Mounting Height: 5.9 ft.
• Handle on Subwoofer Box
• Fits Truck Pack Cases (Up to two units in Better Music Builder – Road Truck-B)

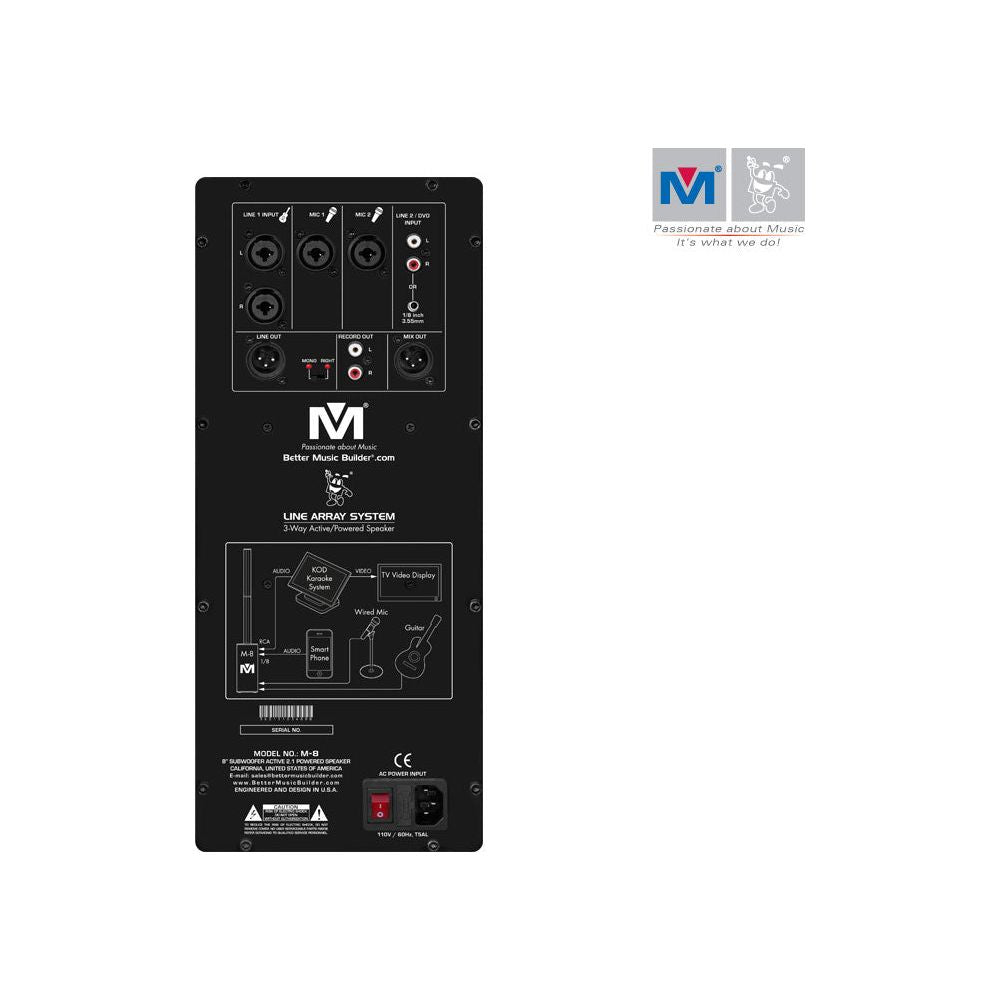

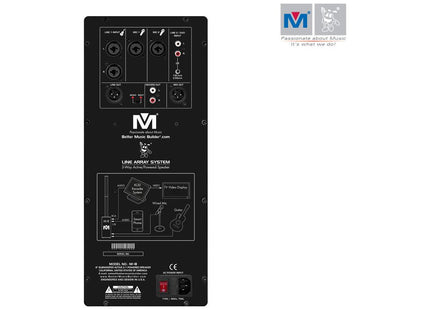

• Mono Amp. Output: XLR
• Mono/Right Output: XLR
• Recording Output: RCA
• Aux Input: RCA
• Balanced Line Inputs/Left & Right: XLR
• Microphone Inputs: 2 x XLR
• Power AC: 110V for USA & Canada. 220V for Asia and Europe.
• Bi-amp module including DSP.
• Exclusive CLIK together connections, no cables required.
• Applications:
  • Party
  • Meeting
  • Public
  • Home

TECH SPECS

• Type: Front
• Cabinet Type: Selected High Intensity Plywood
• Supported Fixture: Ground
• Woofer (LF): 8 inches (2 unit) Low Frequency
• Tweeter (MF): 2.75 inches (12 unit) Middle Frequency
• Tweeter (HF): 1 inches (2 unit) High Frequency
• Rated Impedance: 4 ohms
• Spot Range: 1 Compression Driver
• Frequency Response: 45Hz ~ 20kHz
• Max. Power Handling: Column Speakers: 500 Watts; Subwoofer: 800 Watts
• Power: LF: 200 Watts, MF: 180 Watts, HF: 30 Watts
• Sensitivity: 95dB/1W/1M
• Crossover Frequency: 300Hz between LF & MF, 5KHz between MF & HF
• Max. SPL: 113 dB / 119 dB (PEAK)
• Dispersion (HxV): 90° x 40°
• Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input
• Input Level: LINE 1: 775mVrms, LINE 2: 200mVrms; MIC 1: 20mVrms, MIC 2: 40mVrms
• Input Overloading Level: LINE 1: 3.5Vrms, LINE 2: 2Vrms; MIC 1: 200mVrms, MIC 2: 400mVrms
• Wire Connection: PIN 1: Ground, PIN 2: Signal+, PIN 3: Signal–
• Highlighted Features: Lightweight and very high power
• Dimension (WxHxD):
  • Column Speaker: 3.4×22.4×4.3 in / 8.7x57x10.9 cm (each)
  • Subwoofer: 9.8×23.1×15.8 in / 25×58.6×40 cm (each)
  • One Set (2 x Column Speaker + 1 x Subwoofer): 9.8x68x15.8 in /
    25×172.6×40 cm
• Packing Dimension (WxHxD):
  • 24 x 27.6 x 13.8 in / 61 × 70 × 35 cm (One Set)
• Net Weight:
  • Column Speaker: 7.4 Lbs / 3.4 Kg (each)
  • Subwoofer:
    36.4 Lbs / 16.5 Kg (each)
  • One Set (2 x Column Speaker + 1 x Subwoofer):
    51.2 Lbs / 23.2 Kg
• Shipping Weight:
  • 58.2 Lbs / 26.4 Kg (One Set)
• UPC Code: 743062980902
