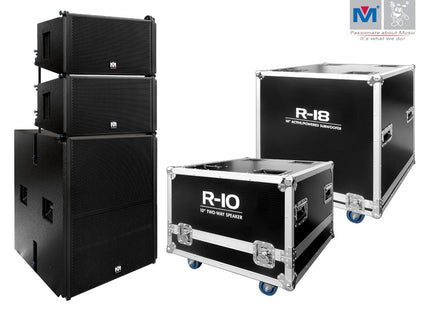

Description

Features

• R-10: 1 x 10″ woofer
• R-18: 1 x 18″ woofer
• Power Rate: R-10: RMS 300 Watts, Peak 600 Watts; R-18: Peak 1200W; RMS 600W (1kHz, 8 ohm)
• R-18 Built-In power amplifier
• Portable/Compact Design
• Sets up quickly and is ready for use in no time at all
• Fully active component management (gain adjustment) for utmost flexibility and utility
• All components needed for safe operation on board and optimized to suit user needs
• Mid/high units may be used separately
• Flight case included
• Applications:
  • Party
  • Meeting
  • Public
  • Home

Tech Specs for R-10

• Type: Two-Way Speaker
• Max. Power Handling: 600 Watts
• Supported Fixture: Ceiling / Ground
• Woofer [LF]: 10″ (1 unit) Low Frequency
• Tweeter [HF]: 2″ (1 unit) High Frequency
• Rated Impedance: 8 ohms
• Frequency Response: 65Hz ~ 20kHz
• Directivity Angle: H90°×V40°
• Sensitivity: 103dB
• Maximum SPL: 103dB
• Connection: 2×NL 4 speakon
• Cabinet Type: 15-Birch Plywood
• Cabinet Surface Treatment: Black Catalyzed Polyurethane Paint
• Dimensions (WxHxD): 22.2×11.8×14.6 in / 56.5x30x37 cm (1 Speaker)
• Case Dimensions (WxHxD): 28×24.3×27.5 in / 71.1×61.7×70 cm (2 Speaker + 1 Case)
• Net Weight: 46.3 lbs / 21 Kg (1 Speaker)
• Shipping Weight: 170 lbs / 77 Kg (2 Speaker + 1 Case)

Tech Specs for R-18

• Type: Subwoofer
• Max. Power Handling: 1200 Watts
• Supported Fixture: Ceiling / Ground
• Woofer: 18″ (1 unit)
• Rated Impedance: 8 ohms
• Frequency Response: 40Hz ~ 250Hz
• Highlighted Features: Built-In Power Amplifier
• Sensitivity: 99dB (2.83V/m)
• Maximum SPL: 126dB
• Connection: 2×NL 4 speakon
• Amplifier:
  • Power: 400W+400W+900W/8 ohms with DSP
  • THD at 1 KHz and 1dB below clipping: 0.7%
  • Hum and Noise: 92dB
  • Slew Rate: 35V/uS
  • Damping Factor: 200
  • Input Connectors: XLR Combo
  • Link Connectors: XLR Male
  • Limit and Clip Indicator: Red LED
  • Power ON Indicator: Green LED
  • Sensitivity Switch: 0.7V
  • Treble/Bass EQ
  • MIC/LINE Switch
• Cabinet Type: 15-Birch Plywood
• Cabinet Surface Treatment: Black Catalyzed Polyurethane Paint
• Standard Power: AC 110V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
• Dimensions (WxHxD): 22.2×29.1×27.8 in / 56.5x74x70.5 cm (1 Subwoofer)
• Case Dimensions (WxHxD): 30.5×39.5×27.5 in / 77.5×100.3×70 cm (1 Subwoofer + 1 Case)
• Net Weight: 119 lbs / 54 Kg (1 Subwoofer)
• Shipping Weight: 192 lbs / 87 Kg (1 Subwoofer + 1 Case)

UPC Code: 743062981411
