Description

Features

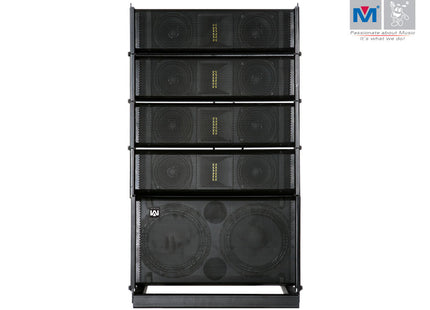

• 3-Way Full Range
• The full system includes:
  • 4 x R4 mid/high frequency cabinet consisting of 1 x Ribbon and 2 x 4” drivers
  • 1 x R8 Subwoofer cabinet comprising of 2 x 8” subwoofer
• Built-in power amplifier module and DSP speaker processing within the R8
• The DSP includes PEQ, Crossover and Slope, Delay, Gain and Limiter and is programmable via either RS232 or USB by PC
• RS-485 allows multiple systems to be connected together for control
• Compact design suitable for various application situations
• Up to 40kHz frequency range due to adoption of ribbon tweeter
• Low distortion due to utilization of unique thin foam surround & specially coated paper cone
• Multi-speaker array configurable for flying in different venues, with splay angle adjustable by 1° increment
• 600W DSP active amplifier
• S-232/USB/RS-485 Ports available for system control
• Software included
• Master volume control
• XLR input and output connectors
• Integrated rigging and speaker cabling included for the system
• Designed for high speech intelligibility and natural sounding music
• Suitable for use as a main system with or without subwoofer speaker augmentation
• Permanent installation
• Powder coated grill
• Durable Polyurethane textured base paint
• Up to 4 systems can be arrayed
• Applications:
  • Luxury cinema
  • Large-sized meeting room
  • multi-functional hall
  • Church
  • Auditorium

Tech Specs

• Type: Front
• Max. Power Handling: 1100 Watts
• Cabinet Type: 15mm Birch Plywood

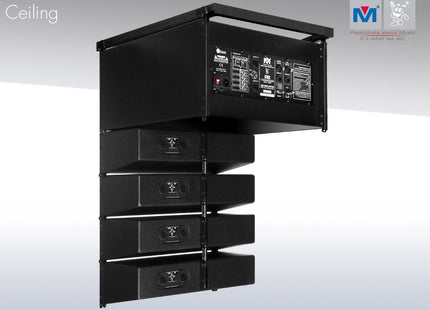

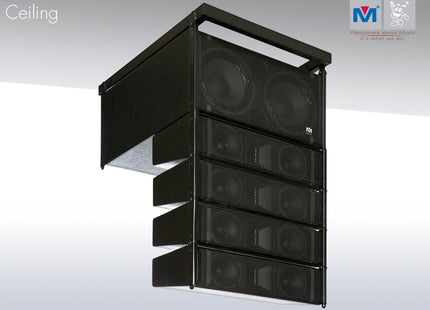

• Supported Fixture: Ceiling / Ground
• Woofer [LF]: 8” (2 units) Low Frequency
• Tweeter [MF]: 4” (2 units) Drivers
• Tweeter [HF]: 1 unit Ribbon Driver
• Rated Impedance: 8 ohms
• “Spot” Range: Compression Driver
• Frequency Response: 50Hz ~ 20kHz
• Amplifier Type: Class H
• LF Amplifier Power: 300W RMS
• HF Amplifier Power: 75W x 4 RMS
• Line Input Sensitivity: +4dBu
• Max. SPL: 115 dB / 121 dB (PEAK)
• Dispersion (HxV): 120° x 30°~90°
• Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input

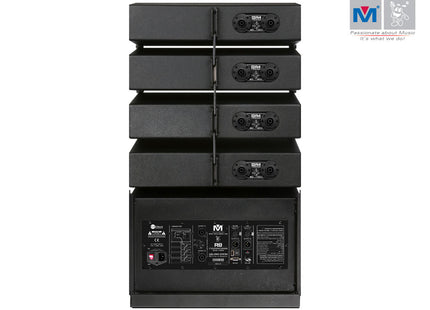

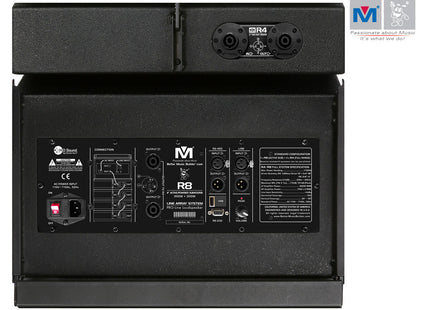

• Connector R8: XLR Line Input/Output, XLR RS485 Input/Output, 2 x NL4 Output R4
• Highlighted Features: High power

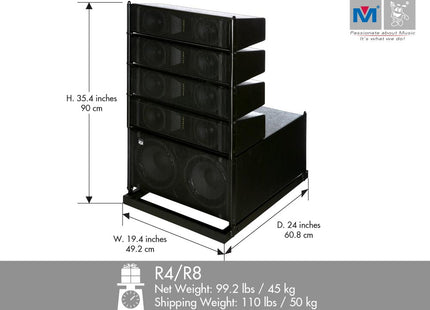

• Dimensions (WxHxD): 19.4 x 35.4 x 24 in / 49.2 x 90 x 60.8 cm
• Packing Dimensions (WxHxD): 27.4 x 22.8 x 27.4 in / 69.6 x 58 x 69.6 cm
• Net Weight: 99.2 Lbs / 45 Kg
• Shipping Weight: 110 Lbs / 50 Kg
• UPC Code: 743062980926
