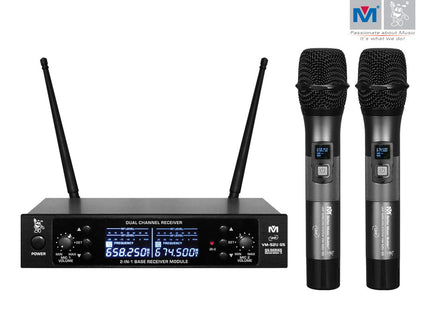

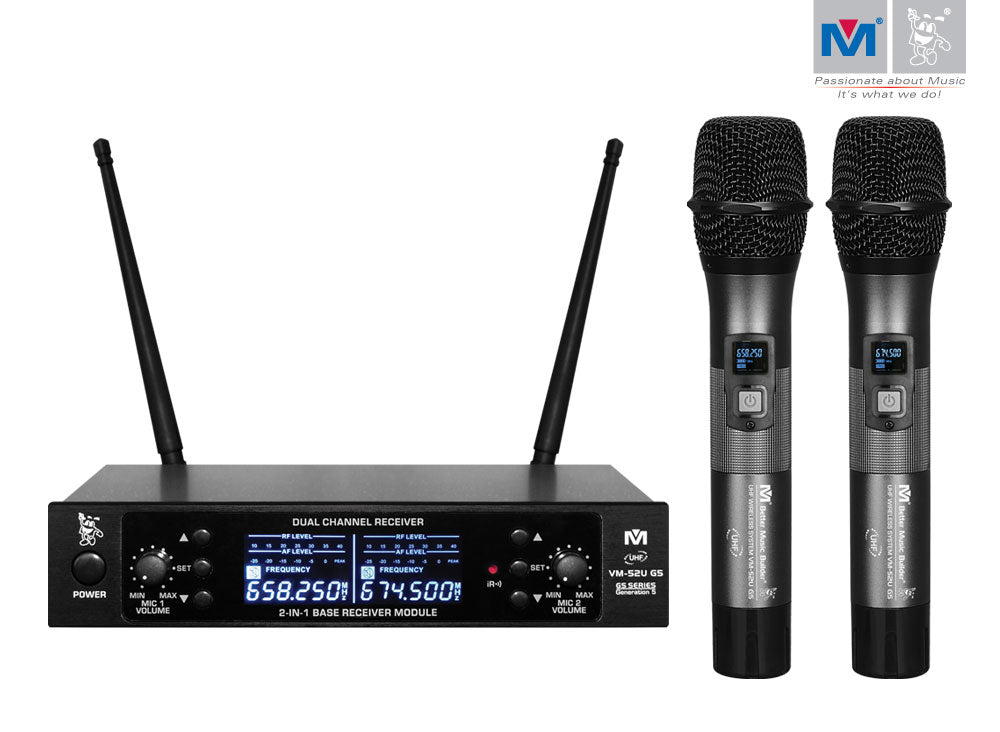

VM-52U G5 DUAL CHANNEL UHF WIRELESS MICROPHONE SYSTEM

FEATURES

• Smart Sensor integrated onto microphones.
• Auto-Mute Mode activates upon impact.
• Energy-efficient Sleep Mode.
• Equipped with the latest wireless technology UHF dual-channel 2-in-1 Base Module.
• Clear LCD screen displaying Radio Frequency Level, Audio Frequency Level, Frequency, Channel, Mute, and Lock.
• Wireless Infrared Auto Sync System.
• Manual and Auto Frequency Select.
• 100 selectable channels.
• Clear Voice technology delivers crystal clear sound.
• Adjustable antennas for better signal receiving.
• AA battery usage for easy handling.
• Up to 8 hours of battery life.
• Rack mountable.

TECH SPECS

2-IN-1 BASE MODULE &  HANDHELD MICROPHONE:

• Channel: 200 Channels
• Frequency Range: UHF 480.100~529.850 MHz
• Modulation Method:    /4 -DQPSK
• Sampling Ratio: 48kHz
• Transmission Rate: 204.8Kbps
• Dynamic Range: > 90dB
• Total Harmonic Distortion: < 0.1%
• Delay Time of Audio Transmission: <3ms
• S/N Ratio: >96dB
• Frequency Response: 30~20kHz
• RX Sensitivity: < –94dBm
• Unique ID Address: YES

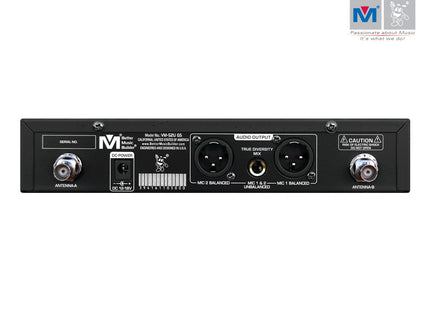

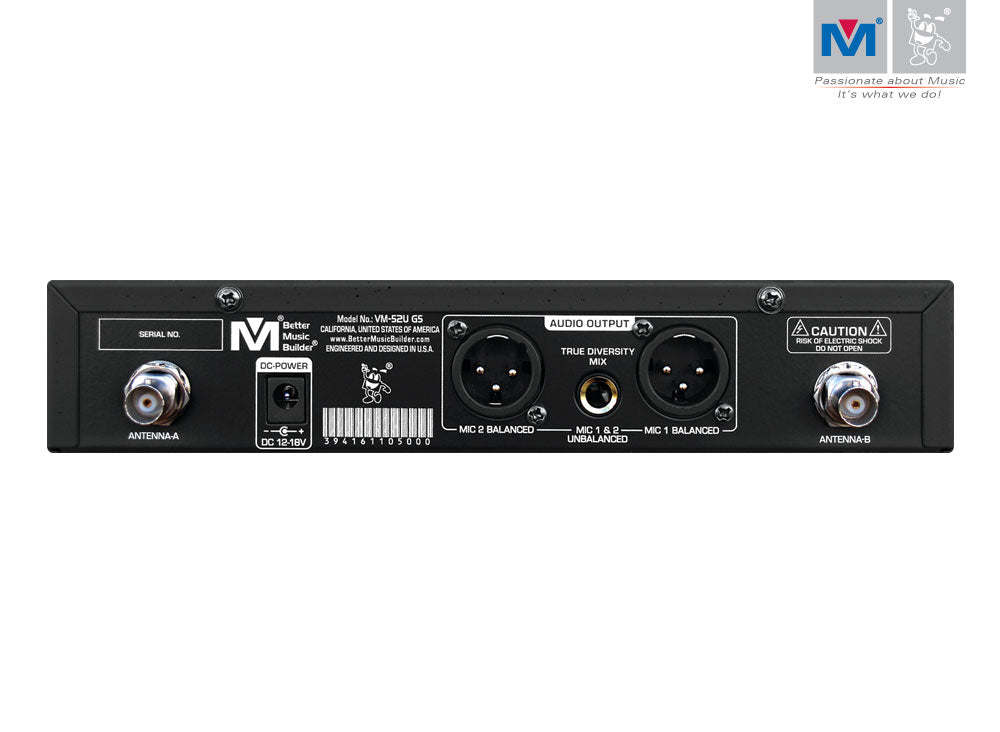

• Audio Output: 2 x XLR Port
• Power Supply: DC 12V~18V with 500mA, AC 120V (For 220V, change to a 220V~240V DC power adaptor)
• Receiver Dimensions (WxHxD): 8.7 x 2 x 7.1 (inches) / 22 x 5 x 18 (cm)
• Package Dimensions (WxHxD): 15.6 x 12.2 x 2.7 (inches) / 39.5 x 31 x 6.8 (cm)
• Shipping Weight: 4.6 lbs / 2.1 kg
• UPC Code: 743062981275
