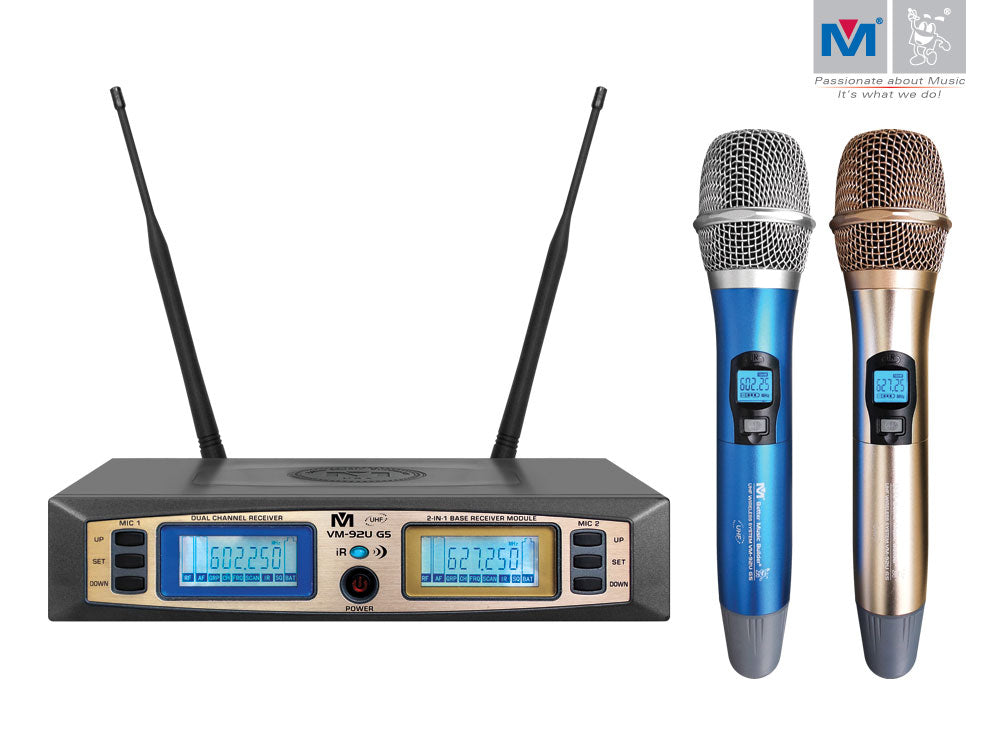

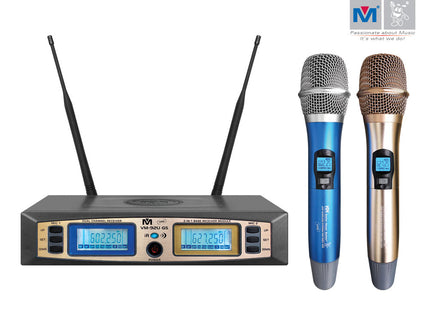

VM-92U G5 DUAL CHANNEL UHF WIRELESS MICROPHONE SYSTEM

FEATURES

• Six-axis gyroscope sensor integrated onto each microphone.
• Energy efficient microphones.
• High Tech Auto-Mute function activates when falling motion is detected.
• Sleep mode activates when microphone is left unattended.
• Equipped with the latest wireless technology and UHF dual-channel in a 2-in-1 Base.
• Clear LCD screen displays Radio Frequency, Volume, Channel, and Frequency.
• Wireless Auto Sync System technology makes setting up a breeze.
• Clear Voice technology delivers crystal clearer sound just like a wired microphone.
• 100 selectable channels for each microphone!
• Adjustable antennas for better signal receiving.
• AA batteries for easy usage.
• Receiver Left / Right squelch knobs.

TECH SPECS

A. 2-IN-1 BASE MODULE

• Channel: 100 Channels (total 200 Channels)
• Frequency Range: UHF 602~652 MHz
• Signal to Noise Ratio: > 90dB
• Total Harmonic Distortion: < 0.5%
• Band Width: < 250kHz
• Frequency Response: 30Hz~19kHz +/-3dB
• Sensitivity: ＞100dB
• Effective Use Range: ＞50M
• Receiver Shell: EIA standard 1/2U
• Receiving Sensitivity: 2.0μV
• Audio Output Level: Unbalanced Out: 0~+/-400mV; Balanced Out: 0~+/-200mV
• Power Supply: DC 14V~22V with 500mA~1000mA, AC 120V (For 220V, you may need to change to a 220V~240V DC adaptor)
• Consume Power: 5 Watts
• Receiver Dimensions (WxHxD): 8.2 x 1.7 x 6 in /20.9 x 4.2 x 15.2 cm
• Package Dimensions (WxHxD): 16.9 x 13.7 x 2.8 in /42.8 x 34.7 x 7.2 cm
• Shipping Weight: 5.6 Lbs / 2.5 Kg

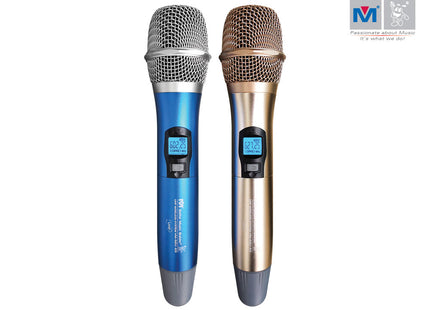

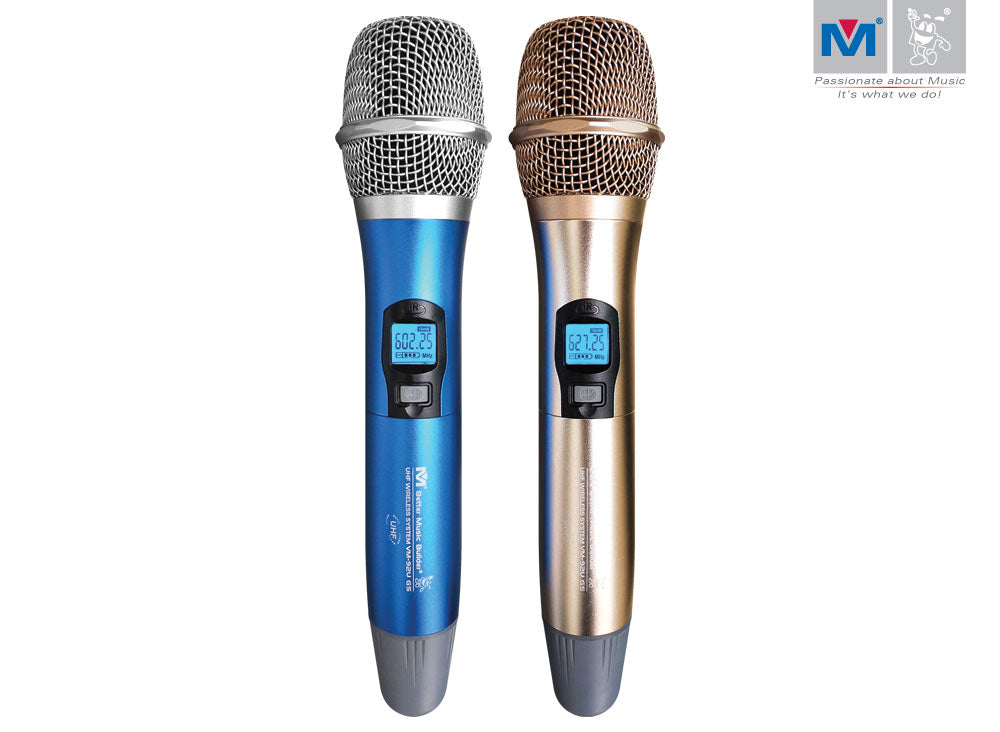

B. HANDHELD MICROPHONE

• Transmitter Power: 5mW or 10mW (Switchable)
• Osillation Mode: PLL
• Harmonic Radiation: ≤-50dBc
• Frequency Stability: ±0.005%，at 0～50℃
• Battery Voltage: 2 x AA 1.5V Alkaline Battery
• Continuous Using: 8 Hours (GP) 2 x AA 1.5V Battery
• Power: DC 2.4~4.8V
• Microphone Dimensions (WxH): 10.3 x 2.2 (inches) / 26.2 x 5.7 (cm)
• UPC Code: 743062980933
