Features:
2-Way Full Range PVC/Plywood Speaker
3”x2 tweeters [paper cone high frequency drivers]
10”x1 woofer [low frequency woofer]
High output SPL and sensitivity
Copper wired voice coil
Speaker input terminal (banana plug or insert type)
Frequency response 45Hz~17kHz
Sensitivity 92dB
Front grill adjustable 180 degrees
Cabinet design for FOH use
Flexible and easy-to install configurations (wall, ceiling, under balcony)
Specifications:
Type: Front (2-Way Full Range)
Max. Power Handling: 720 Watts
Cabinet Type: PVC, Plywood
Supported Fixture: Ceiling, Wall Mount, Floor Stand
Woofer: 10 inches (1 unit)
Tweeter: 3 inches (2 units)
Rated Impedance: 8 ohms
Frequency Response: 45Hz~17kHz ( ± 3 dB)
Sensitivity: 92 dB/1W/1M
Crossover Frequency: LF: 300Hz / HF: 6.3kHz
Dimension (WxHxD): 19.8 x 11.5 x 10.6 in / 50.2 x 29.2 x 27 cm
Packing Dimension (WxHxD): 26.2 x 23.2 x 14.6 in / 66.5 x 59 x 37 cm (pair)
Net Weight: 22 lbs / 10 kg (each)
Shipping Weight: 48.5 lbs / 22 kg (pair)
UPC Code: 743062980605
Features
2-Way Full Range Plastic Speaker with Coaxial Horn
High output SPL and sensitivity
1 x 10” high power transducer with 50mm voice coil
1 x 3” high frequency coaxial driver
100º x 100º controlled coverage pattern
Injection molded
2 x NL4 connector
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling, under balcony)
Vent designed to reduce port noise
Tech Specs
Type: Center Monitor
Max. Power Handling: 400 Watts
Cabinet Type: Plastic
Supported Fixture: Ground, Wall Mount, Floor Stand
Woofer: 10 inches (1 unit)
Tweeter: 2-Way Full Range, HF Horn
Frequency Response: 65 Hz ~ 15 kHz
Sensitivity: 93 dB
Crossover Frequency: 3 kHz
Dimension (WxHxD): 14.8×18.3×12.4 in / 37.6×46.4×31.6 cm
Packing Dimension (WxHxD): 16.8×20.5×14.5 in / 42.7×52×36.8 cm
Net Weight: 20.4 Lbs / 9.3 Kg (each)
Shipping Weight: 24.4 Lbs / 11.1 Kg (each)
UPC Code: 743062980278
FEATURES
2-Way Full Range Plastic Speaker with Coaxial Horn
High output SPL and sensitivity
1 x 8” high power transducer with 50mm voice coil
1 x 3” high frequency coaxial driver
100º x 100º controlled coverage pattern
Built-in power amplifier module
Aux and Line volume control
Bass and Treble control
Stereo 6.35mm unbalanced input and output connectors
1 x 6.35mm unbalanced Aux input
Switchable between Mic and Line input
1 x NL4 output
Injection molded
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling, under balcony)
Vent designed to reduce port noise
TECH SPECS
Type: Center Monitor
Max. Power Handling: 300 Watts
AC Power Supply: 110 Voltage
Cabinet Type: Plastic
Supported Fixture: Ground, Wall Mount, Floor Stand
Woofer: 8 inches (1 unit)
Tweeter: 3 inches (1 unit)
Frequency Response: 65 Hz ~ 15 kHz
Sensitivity: 110 dB SPL
Crossover Frequency: LF=120 Hz, HF=6.3 kHz
Dimension (WxHxD): 12.7×15.6×10.7 in / 32.3×39.7×27.1 cm
Packing Dimension (WxHxD): 14.7×17.8×12.6 in / 37.4×45.3×32.1 cm
Net Weight: 18.7 Lbs / 8.5 Kg (each)
Shipping Weight: 23.2 Lbs / 10.5 Kg (each)
UPC Code: 743062980261
Features
2-Way Full Range Active Coaxial Horn
High output SPL and sensitivity
1 x 12” high power transducer with 50mm voice coil
1 x 1.3” diaphragm compression coaxial driver
90º x 40º controlled coverage pattern
Rotatable Horn
Built-in power amplifier module
Aux and Master volume control
Bass and Treble control
Stereo 6.35mm unbalanced input and output connectors
1 x 6.35mm unbalanced Aux input
Switchable between Mic and Line input
1 x NL4 output
Injection molded
Cabinet design for FOH and Monitor use
Suitable for use as a main system with or without sub speaker augmentation
Portable system (stand), or permanent installation (wall, ceiling, under balcony)
Vent designed to reduce port noise
Tech Specs
Type: Center Monitor
Max. Power Handling: 600 Watts
AC Power Supply: 110 Voltage
Cabinet Type: Plastic
Supported Fixture: Ground, Wall Mount, Floor Stand
Woofer: 12 inches (1 unit)
Tweeter: 2-Way Full Range
Frequency Response: 50 Hz ~ 20 kHz
Sensitivity: 115 dB SPL
Crossover Frequency: LF=120 Hz, HF=6.3 kHz
Dimension (WxHxD): 17.3×21.3×14.7 in / 44×54.2×37.4 cm
Packing Dimension (WxHxD): 19.3x24x16.5 in / 49×61×41.9 cm
Net Weight: 36.4 Lbs / 16.5 Kg (each)
Shipping Weight: 42 Lbs / 19.1 Kg (each)
UPC Code: 743062980308
Features
3-Way Full Range
The full system includes:
4 x R4 mid/high frequency cabinet consisting of 1 x Ribbon and 2 x 4” drivers
1 x R8 Subwoofer cabinet comprising of 2 x 8” subwoofer
Built-in power amplifier module and DSP speaker processing within the R8
The DSP includes PEQ, Crossover and Slope, Delay, Gain and Limiter and is programmable via either RS232 or USB by PC
RS-485 allows multiple systems to be connected together for control
Compact design suitable for various application situations
Up to 40kHz frequency range due to adoption of ribbon tweeter
Low distortion due to utilization of unique thin foam surround & specially coated paper cone
Multi-speaker array configurable for flying in different venues, with splay angle adjustable by 1° increment
600W DSP active amplifier
S-232/USB/RS-485 Ports available for system control
Software included
Master volume control
XLR input and output connectors
Integrated rigging and speaker cabling included for the system
Designed for high speech intelligibility and natural sounding music
Suitable for use as a main system with or without subwoofer speaker augmentation
Permanent installation
Powder coated grill
Durable Polyurethane textured base paint
Up to 4 systems can be arrayed
Applications:
Luxury cinema
Large-sized meeting room
multi-functional hall
Church
Auditorium
Tech Specs
Type: Front
Max. Power Handling: 1100 Watts
Cabinet Type: 15mm Birch Plywood
Supported Fixture: Ceiling / Ground
Woofer [LF]: 8” (2 units) Low Frequency
Tweeter [MF]: 4” (2 units) Drivers
Tweeter [HF]: 1 unit Ribbon Driver
Rated Impedance: 8 ohms
“Spot” Range: Compression Driver
Frequency Response: 50Hz ~ 20kHz
Amplifier Type: Class H
LF Amplifier Power: 300W RMS
HF Amplifier Power: 75W x 4 RMS
Line Input Sensitivity: +4dBu
Max. SPL: 115 dB / 121 dB (PEAK)
Dispersion (HxV): 120° x 30°~90°
Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input
Connector R8: XLR Line Input/Output, XLR RS485 Input/Output, 2 x NL4 Output R4
Highlighted Features: High power
Dimensions (WxHxD): 19.4 x 35.4 x 24 in / 49.2 x 90 x 60.8 cm
Packing Dimensions (WxHxD): 27.4 x 22.8 x 27.4 in / 69.6 x 58 x 69.6 cm
Net Weight: 99.2 Lbs / 45 Kg
Shipping Weight: 110 Lbs / 50 Kg
UPC Code: 743062980926
Features
High output SPL and sensitivity
1 x 18” high power low-frequency transducer with 100mm voice coil
Sensitivity 97dB, max SPL 124dB
RMS 500W, peak 2000W
Built-in power amplifier module
Master volume control
XLR input and output connectors
Built-in variable crossover 80Hz~250Hz high cut
Phase switch
Computer-aided design to optimize frequency and phase response
A cabinet designed for FOH use
Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high-quality music reproduction
Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
Powder-coated grill with foam backing
Durable Polyurethane textured base paint
Tech Specs
Type: Subwoofer
Max. Power Handling: 2000 Watts
Cabinet Type: Selected High-intensity Plywood
Supported Fixture: Ground
Woofer: 18” (1 unit)
“Spot” Range: Exponential LF Horn Configuration
Frequency Response: 45Hz ~ 250Hz
Sensitivity: 97 dB
Maximum SPL (1W @ 1m): 124dB/130dB (PEAK)
Input Impedance: Balanced 20kΩ
Rated Impedance: 8 ohm
Connector: 1 x Combo 6.35/XLR Input, 1 x XLR Output
Highlighted Features: 100mm Voice Coil
Dimensions (WxHxD): 23.6×21.7×25.2 in / 60x55x64 cm
Packing Dimensions (WxHxD): 29.1×25.6×27.6 in / 74x65x70 cm (each)
Net Weight: 99 Lbs / 45 Kg (each)
Shipping Weight: 112.2 Lbs / 51 Kg (each)
UPC Code: 743062981404
SPECIFICATIONS：
System type：2 unit 2-way full range frequency loudspeaker
Rated Power：550 W
Max power：1100W
Peak power：2200W
Nominal impedance：8 Ω
Recommended power amplifier output rating：700 W—1000 W@8 Ω
Sensitivity（1W@1m）：100 dB
Max SPL（Pmax@1m）：127 dB@550w(130dB@1100w)
Nominal coverage pattern ：80°H×50°V
Frequency response（-10dB）：45Hz—20KHz
Crossover modes：Passive
Speaker component：15″（380mm diameter 75mm voice coil）LF driver ×1 3″（75mm voice coil）HF driver ×1
Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：18 mm（0.7″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions: W430mm x D385mm x H712mm
Weight(each)：27.95 kg
Shipping weight：30.85kg
Reference applications: Conference rooms, multipurpose halls, churches, auditoriums, small shows
Type: Front (2-Way Full Range)
Max. Power Handling: 650 Watts
Cabinet Type: PVC, Plywood
Supported Fixture: Ceiling, Wall Mount, Floor Stand
Woofer: 12 inches (1 unit)
Tweeter: 3 inches (2 units: High Frequency x 2) / 4 inches (2 units: Middle Frequency x 2)
Rated Impedance: 8 ohms
Frequency Response: 25Hz ~ 18kHz ( ± 3 dB)
Sensitivity: 93 dB/1W/1M
Crossover Frequency: LF: 300Hz / HF: 6.3kHz
Dimension (WxHxD): 24.1 x 13.8 x 13.6 in / 61.2 x 35 x 34.5 cm (each)
Packing Dimension (WxHxD): 16.5 x 28 x 15.8 in / 41.9 x 71.1 x 40 cm (each)
Net Weight: 36 Lbs / 16.3 Kg (each)
Shipping Weight: 41.6 Lbs / 18.9 Kg (each)

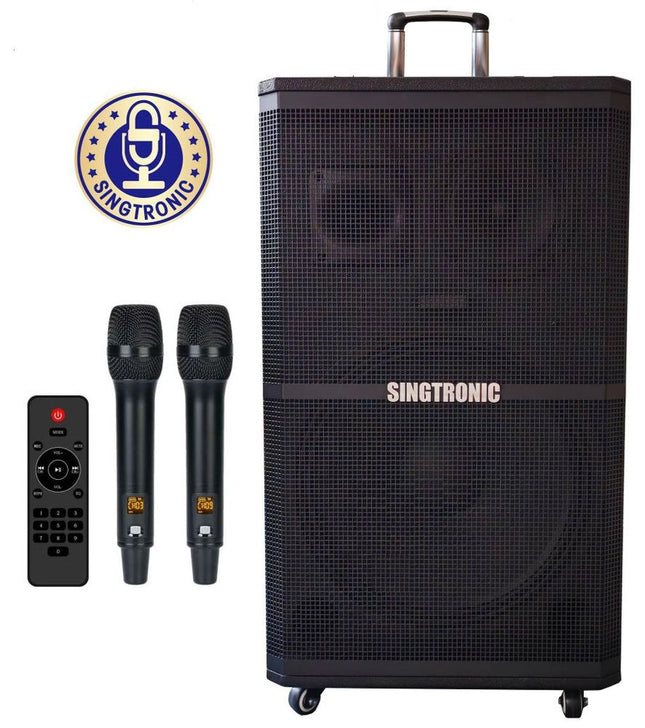

Hottest products from Singtronic Model: 2026 Just release the BT-1500DSP Professional 1500W Bluetooth Karaoke Speaker with Dual Metallic Anti-feedback Wireless Micrphone
