FEATURES
High output SPL and sensitivity
1 x 15” high power low-frequency transducer with 75mm~100mm voice coil
Built-in power amplifier modules
Can be combined with two 150W full-range speaker
Volume control (Bass, Treble, Line Volume, Sub Volume, Balance, and High Cut)
RCA audio input
Dedicated microphone inputs with volume control
Speakon output connectors
Built-in variable crossover 80Hz~250Hz high cut
Computer-aided design to optimize frequency and phase response
A cabinet designed for FOH use
Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high-quality music reproduction
Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
Powder-coated grill with foam backing
Durable Polyurethane textured base paint
TECH SPECS
Type: Subwoofer
Max. Power Handling: 500W+150W+150W
Cabinet Type: Selected High-intensity Plywood
Supported Fixture: Ground
Woofer: 15” (1 unit)
“Spot” Range: Exponential LF Horn Configuration
Frequency Response: 80Hz ~ 250Hz
Sensitivity: 123 dB
Rated Impedance: 8 ohm
Highlighted Features: 75mm Voice Coil
Dimensions (WxHxD): 23.6×19.3×22.9 in / 60x49x58.1 cm
Packing Dimensions (WxHxD): 28.7×24.8×28 in / 73x63x71 cm (each)
Net Weight: 105.8 Lbs / 48 Kg (each)
Shipping Weight: 112.4 Lbs / 51 Kg (each)
UPC Code: 743062980384
Features
High output SPL and sensitivity
1 x 18” high power low-frequency transducer with 100mm voice coil
Sensitivity 97dB, max SPL 124dB
RMS 500W, peak 2000W
Built-in power amplifier module
Master volume control
XLR input and output connectors
Built-in variable crossover 80Hz~250Hz high cut
Phase switch
Computer-aided design to optimize frequency and phase response
A cabinet designed for FOH use
Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high-quality music reproduction
Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
Powder-coated grill with foam backing
Durable Polyurethane textured base paint
Tech Specs
Type: Subwoofer
Max. Power Handling: 2000 Watts
Cabinet Type: Selected High-intensity Plywood
Supported Fixture: Ground
Woofer: 18” (1 unit)
“Spot” Range: Exponential LF Horn Configuration
Frequency Response: 45Hz ~ 250Hz
Sensitivity: 97 dB
Maximum SPL (1W @ 1m): 124dB/130dB (PEAK)
Input Impedance: Balanced 20kΩ
Rated Impedance: 8 ohm
Connector: 1 x Combo 6.35/XLR Input, 1 x XLR Output
Highlighted Features: 100mm Voice Coil
Dimensions (WxHxD): 23.6×21.7×25.2 in / 60x55x64 cm
Packing Dimensions (WxHxD): 29.1×25.6×27.6 in / 74x65x70 cm (each)
Net Weight: 99 Lbs / 45 Kg (each)
Shipping Weight: 112.2 Lbs / 51 Kg (each)
UPC Code: 743062981404
FEATURES
2-Way Full Range Active/Powered Loudspeaker
1 x 12” NEO woofer
1 x 1.75” compression driver with PEI diaphragm
Built-In power amplifier
Dynamic Fusion Technology™ (DFT)
High SPL and sensitivity
Line input: 2 x Combined 1/4 inch/XLR
Audio output: 1 x XLR
Frequency response: 60Hz~20kHz
Sensitivity: 97dB (1m/1W)
Handling power: 400 Watts (RMS) @ 4 ohms, 800 Watts (PEAK) @ 4 ohms
Power AC: 110V for USA & Canada. 220V for Asia and Europe
Computer-aided design to optimize frequency and phase response
Independent crossover circuit provides low distortion and interfere
Convenient handle on speaker box
Protective grill: Black perforated steel
Flexible and easy-to install configurations (wall, ceiling, under balcony)
Applications: Restaurants, clubs, bars, conference rooms, churches, schools and homes
TECH SPECS
Type: Front
Cabinet Type: High Intensity Plywood
Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
Woofer: 12 inches (1 unit)
Max. Power Handling: 800 Watts
Rated Impedance: 4 ohms
Spot Range: 1.75” Compression Driver with PEI Diaphragm
Dispersion Angle: H90° x V60° (-6dB)
Frequency Response: 80Hz~20kHz (-3dB)
Maximum SPL: 128 dB
Sensitivity: 97dB (1m/1W)
Line input: 2 x Combined 1/4 inch/XLR
Audio output: 1 x XLR
Flying Points: 12 x M8
Highlighted Features: NEO Loudspeaker
Amplifier Module
RMS Output Power: 2 x 350 Watts / 4 ohms
S/N Ratio: 95 dB
Damping Factor: ＞500@100Hz
Protection: over voltage protection up to 135/264V AC, overload output protection, clip, limiter
Dimension (WxHxD): 15×22.6×13.8 in / 38×57.5×35 cm (each)
Packing Dimension (WxHxD): 17.9×25.8×16.7 in/45.5×65.5×42.5 cm (each)
Net Weight: 37.5 Lbs / 17 Kg (each)
Shipping Weight: 41.9 Lbs / 19 Kg (each)
UPC Code: 743062981596
FEATURES
High SPL and sensitivity
1 x 6.5” high power low-frequency transducer
1 x 1.7” PEI diaphragm compression driver
Passive configuration
140° x 140° wide-angle coverage pattern
1 x NL4 connector (included in the package)
Computer-aided design to optimize frequency and phase response
Multi-purpose cabinet design for FOH or monitor use
Use as a main system with or without sub-speaker augmentation
Suitable for speech and background music
Flexible and easy-to-install configurations (wall, ceiling, under balcony)
U bracket and a top holder of the speaker stand are included in the package
Powder coated grill
Durable Polyurethane textured base paint
TECH SPECS
Type: Front (2-Way Full Range)
Max. Power Handling: 160 Watts
Cabinet Type: PVC, Plywood
Supported Fixture: Ceiling, Wall Mount, Floor Stand
Woofer [Low Frequency]: 6.5 inches (1 unit) aluminum alloy cone
Spot Range: 1.7” Compression driver with PEI diaphragm
Rated Impedance: 8 ohms
Frequency Response: 80Hz ~ 18kHz ( ± 3 dB)
Sensitivity: 90 dB/1W/1M
Crossover Frequency: 3.2kHz
Speaker input: 1 x Speakon NL4 connector
Recommended Usage: Rear or post vocal/monitor speaker
One Bass Reflex
Dimension (WxHxD): 8.4×14.3×7.6 in / 21.2×36.4×19.4 cm (each)
Packing Dimension (WxHxD): 21.3×18.3×11.5 in / 54.1×46.5×29.3 cm (pair per box)
Net Weight: 14 lbs / 6.4 kg (each)
Shipping Weight: 34.4 lbs / 15.6 kg (pair per box)
UPC Code: 743062980315
FEATURES
2-Way full-range passive speaker
1 x 10” high power low-frequency transducer
1 x 1.7” titanium diaphragm compression driver
1 x NL4 connector
Dynamic Fusion Technology™ (DFT)
High SPL and sensitivity
55~100° x 50° controlled coverage pattern
Frequency response 70Hz~20kHz
Sensitivity 94dB
Computer-aided design to optimize frequency and phase response
Multi-purpose cabinet design for FOH or monitor use
Integral 35mm pole mount receptacle for stand or vertical installation
Combine with any Better Music Builder high-power sub speaker for extended low frequency, high-quality music reproduction Powder coated grill
An Independent crossover circuit provides low distortion and interferer
Suitable for all kinds of rock bars, entertainment bars, nightclubs, all kinds of living performances, and portability
Flexible and easy-to-install configurations (wall, ceiling, under balcony)
TECH SPECS
Type: Front
Power Rating: Peak 800W; RMS 400W
Cabinet Type: High-Intensity Plywood
Supported Fixture: Ceiling Mount, Wall Mount, Floor Stand
Woofer: 10 inches (1 unit)
Rated Impedance: 8 ohms
Spot Range: Compression driver with 1.7” titanium diaphragm (1 unit)
Frequency Response: 70Hz ~ 20kHz (±3dB)
Sensitivity: 94dB/1W/1M
Crossover Frequency: 1.8 kHz
Dispersion: 55~100° x 50° controlled coverage pattern
DC Impedance: 5.6 Ohm
THD: <3%
Highlighted Features: Dynamic Vocal Effect
Dimension (WxHxD): 13×19.8×12.1 in / 33×50.2×30.8 cm (each)
Packing Dimension (WxHxD): 16.9×24.5×16.1 in / 43×62.2×40.8 cm (each)
Net Weight: 37.8 Lbs / 17.1 Kg (each)
Shipping Weight: 44 Lbs / 20 Kg (each)
UPC Code: 743062981718
Better Music Builder (M) engineering team created a new high performance speaker product called the Dynamic Fusion Series (DFS-912 and DFS-915) including Subwoofer line (DFS-112 SUB and DFS-118 SUB) using Dynamic Fusion Technology™ (DFT).
The compact design of High Definition Speaker is a high-end line vocal speaker series (DFS-912 & DFS-915). It can be easily pole-mounted or permanently installed onto wall, ceiling or under the balcony. The engineering team of Better Music Builder designed this speaker specifically for all kinds of rock bar, entertainment bar, night club, and all kinds of living performance and it offers portability. The Full Range Speaker designed by the engineering team of Better Music Builder specifically suit the needs for all kinds of medium-sized conference room, multi-function hall, church and general small performance site, and also is a high-end audio product line for home use.
Features:
Unique LF Extension Technology
12” professional high performance speaker with unique LF extension technology LF can be lower to 35Hz
Computer-aided design to optimize frequency and phase response
Tweeter and full range speaker with high quality performance
1 x 12“ professional woofer
RMS 300W, peak 600W
One compression driver with 3” magnalium diaphragm
60°×60° wide dispersion horn
Independent crossover circuit provides low distortion and interferer
Single Amplifier Driving Mode
Suitable for all kind of rock bar, entertainment bar, night club, all kinds of living performance and portability
Specifications:
Type: Front
Max. Power Handling: 600 Watts
Supported Fixture: Ceiling, Wall Mount, Ground, Floor Stand
Woofer (LF): 12” (1 unit)
Tweeter (HF): 2-Way Full Range with Hi-Fi Level Performance
“Spot” Range: 1 Compression Driver with Voice Coil Megnalium Diaphragm
Frequency Response: 45Hz ~ 18kHz
Sensitivity: 95 dB
Crossover Frequency: 1.8 kHz
Cabinet Type: Selected High Intensity Plywood
Dimensions (WxHxD): 15.8×25.6×17.3 inches / 40.2×65×44 cm (each)
Packing Dimensions (WxHxD): 19.7×29.5×21.3 inches / 50×75×54 cm (each)
Net Weight: 58 lbs / 26.3 kg (each)
Shipping Weight: 66.1 lbs / 30 kg (each)
UPC Code: 743062980353
Features:
Unique LF Extension Technology
15” professional high performance speaker with unique LF extension technology LF can be lower to 35Hz
Computer-aided design to optimize frequency and phase response
Tweeter and full range speaker with high quality performance
1 x 15“ professional woofer
RMS 500W, peak 1000W
One compression driver with 3” magnalium diaphragm
60°×60° wide dispersion horn
Independent crossover circuit provides low distortion and interferer
Single Amplifier Driving Mode
Suitable for all kind of rock bar, entertainment bar, night club, all kinds of living performance and portability
Specifications:
Type: Front
Max. Power Handling: 1000 Watts
Supported Fixture: Ceiling, Wall Mount, Ground, Floor Stand
Woofer (LF): 15” (1 unit)
Tweeter (HF): 2-Way Full Range with Hi-Fi Level Performance
“Spot” Range: 1 Compression Driver with Voice Coil Megnalium Diaphragm
Frequency Response: 40Hz ~ 18kHz
Sensitivity: 95 dB
Crossover Frequency: 1.5 kHz
Cabinet Type: Selected High Intensity Plywood
Dimensions (WxHxD): 18.9 x 27.4 x 18.1 inches / 48 x 69.6 x 46 cm (each)
Packing Dimensions (WxHxD): 22.8 x 31.3 x 22 inches / 58 x 79.6 x 56 cm (each)
Net Weight: 82.2 lbs / 37.3 kg (each)
Shipping Weight: 89.3 lbs / 40.5 kg (each)
UPC Code: 743062980360
FEATURES
Singsound TEK Professional Digital KTV Amplifier is a revolution of the next karaoke generation.
Supported Inputs:
Smart TV
Media Players
Smartphones
Tablets
STB
DVD Players
HD Players
Blu-ray
PC/Laptops
Game systems i.e. XBox, PS4, etc.
Optical or RCA Inputs
Supported Outputs:
Stereo Audio Output: XLR Left & Right
Center Speakers Output: XLR
Subwoofer Output: XLR
Main Music Output with Individual Volume Control
Main Microphone Output with Individual Volume Control
Main Effect Output with Individual Volume Control
Rec. Output: RCA
Optical and XLR Output
Optical Input to L & R Output is enabled
Optical Input to XLR Output is enabled.
RCA Input to RCA Channel Output is enabled
Package Includes:
Singsound TEK Professional Digital KTV Amplifier
Free: 2 x UHF Professional Wireless Microphone with Anti-Howling & Feedback Suppressor
Operating Manual Book
Remote Control Unit
Power Cord
Features
Dual Channel Mixer
User-Friendly Control Center
LCD Status Window
Auto-Save Function
9-Steps Music Key Control
Microphone Master Volume and Music Master Volume
Independent Microphone Volume Control
Microphone Delay/Repeat/Echo/Bass/Treble Control
Music Bass/Treble Control
Headphone Jack with Volume Control
(4) ¼” Microphone Inputs
(4) RCA Audio Inputs
(1) Optical Input
(1) Coaxial Input
(2) RCA Audio Outputs
Voltage Selector
Tech Specs
Source Input: DVD, AUX 1, AUX 2, AUX 3, Optical, Coaxial
Microphone Input: 4 (Front x 2, Rear x 2)
Audio Inputs: 4 (RCA jacks)
Audio Outputs: 2 (RCA jacks)
Dynamic Range: 2V@20~20kHz
Mic Sensitivity: 8mVrms
Operating Humidity Range: 90%
Operation Temperature: -5 ~ 45 °C
Frequency Response: 20Hz~20kHz 0.5dB/-3dB
Max Distortion: 0.1%
S/N RATIO (Music): >90dB
Power Consumption: 10W
Power Requirement: ~110V 60Hz / ~220V 50Hz
Dimensions (WxHxD): 17.4×2.8×10 in / 44.2x7x25.3 cm
Packing Dimensions (WxHxD): 20.3×5.4×12.8 in / 51.5×13.7×32.5 cm
Net Weight: 7.7 Lbs / 3.5 Kg
Shipping Weight: 8.8 Lbs / 4 Kg
UPC Code: 743062981473
FEATURES
800 Watts 4-Channel Mixing Amplifier
Multimedia Expansion Control (USB reader)
Bluetooth 5.0 allows you to wirelessly stream music from all your favorite compatible devices
Accepts USB flash drives and SD memory cards
USB interface for playing digital music file
3 Band Microphone Equalizer
Microphone Exciter
2 Band Music Equalizer (Bass, Treble) +/- 12dB adjustment for mid and bass and +/- 10dB adjustment for treble.
Music Balance: Balances audio output of the speakers from left to right
Microphone Echo Effect controls: Delay, Repeat, Bass and Treble
9-Steps key control
Individualized volume control for echo, microphone and music
Available to adjust frequency 80Hz~250Hz of Subwoofer channel.
Smart Audio Input Select (SAIS): priority selection of audio inputs.
Audio input sensitivity (for AUTO input setting).
Microphone input sensitivity.
Inputs: 5 microphone inputs (3 front and 2 rear), 2 digital audio input (Optical/Coaxial), 3 audio inputs (BGM/VOD/DVD) and 3 video inputs (BGM/VOD/DVD).
Outputs: 1 subwoofer output, 2 line output (Music/Preamp) and 1 video output (monitor).
Compatible to CD/CDG/CDR/MP3G & HD Video.
Dedicated wireless microphone connection input in 2 groups. The volume of each group can be adjusted separately, with each group providing +8dB/-12dB adjustment for treble, middle, and bass.
Music “Mute” allows the microphone to be active while the music is off.
Smart fan
TECH SPECS
Source Inputs: BGM, VOD, DVD, AUX
Power Output: Peak 800W; RMS 400W (1kHz, 8 ohm); 600W (1kHz, 4 ohm)
Microphone Inputs: 5 (Front x 3, Rear x 2)
Digital Audio Inputs: 2 (Optical/Coaxial)
Audio Inputs: 3 (RCA jack)
Line Output: 2 (RCA jack)
Video Inputs: 3 (RCA jacks)
Video Output: 1 (RCA jacks)
Subwoofer Output: 1 (RCA jack)
Bluetooth: Version 5.0
Digital Audio File Compatibility: MP3, WMA and More
Maximum USB Support: Unlimited
Frequency Response: 20Hz~20kHz, ± 1 dB
THD: <0.007
Music Input Section
S/N Ratio: 80 dB
Input Sensitivity/Impedance: 250mV
HF (increase/attenuate): ±8 dB
LF (increase/attenuate): ±8 dB
Mic. Input Section
Input Sensitivity/Impedance: 20mV
Tone Electrical Circuit:
MUSIC PART:
BASS Control: 100Hz ± 10dB
TREBLE Control: 10kHz ± 10dB
MIC PART:
BASS Control: +6dB/-6dB
TREBLE Control: +6dB/-6dB
Standard Power: AC 110V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
Dimensions (WxHxD): 17×5.1×14.1 in / 43×13.5×35.8 cm
Packing Dimensions (WxHxD): 20.1×8.1×18.5 in / 51×20.6×47 cm
Net Weight: 25.8 Lbs / 11.7 Kg
Shipping Weight: 30.8 Lbs / 14 Kg
UPC Code: 743062981565
Better Music Builder DX-288 G3 Mixing Amplifier, a 3rd Generation Series, is the most advanced mixing amplifier we’ve ever built. It uses the latest CPU technology and expansive memory capacity to provide much more detailed options and features, which include individualized microphone setup, 3 adjustable digital sound effects, the ability to lock on personal favorite settings, and built-in microphone Feedback Destroyer and digital equalizer.
The CPU Integrated Mixing Amplifier is all about being connected. In addition to having the capability to access and control the effects of the amplifier through the “Effect Control Software Suite” software, we went one step further with the DX-288 G3 Mixing Amplifier. Utilizing the new USB connection, users can now dive into their computer’s hard-drive to unearth their favorite tunes and videos! Another new feature, for all the DJ fans out there, is the added headphone jack input to monitor customized effects. And last but not least, adding an input for popular devices such as an iPhone or an Android seems like a no-brainer.
The Series’ distinguished 5-D PRO Audio Technology enables the set up of 2 main and 2 rear speakers with 1 additional center speaker for vocal monitoring. To handle the intensive high-power output demand of the DX-288 G3 Mixing Amplifier, Smart Quiet Fan turns on automatically when it senses high temperature to keep the machine running cool and prolong life.
It is simply the best solution for home and professional karaoke performance!
FEATURES
Remote access via computer through USB connection.
Stereo headphone connection to allow monitoring effects.
3.55 mm audio input for your favorite mobile devices such as smart phones and tablets.
DSP (Digital Signal Processing) technology customized by Better Music Builder .
5-D PRO Audio 900 Watts Max Power.
3/5 + 1 (subwoofer) audio distributions.
Full reverberation effects with Microphone reverb, echo, delay, and repeat adjustments.
Dedicated 3 channels Power Output plus full array of Line Outputs which includes: record output, line output, pre-output, bass output, center channel output.
Dedicated wireless microphone connection input in 2 groups. The volume of each group can be adjusted separately, with each group provides +/- 8dB adjustment for treble, median, and bass.
Independent Master and Microphone maximum volume locking.
Built-in Subwoofer and Center output stereo crossover with independently adjusted volume and cut-off frequency control from 20 Hz ~ 240 Hz.
High-performance 24-bit dual-engine Feedback Destroyer.
Full computerized Smart Auto Input Switching (SAIS) feature for source input selection.
Music modulation with 9-step key control and preset effects for selection.
Independently adjusted center speaker control for self vocal monitoring.
Capable of driving two pairs of main speaker in different size to cover the whole frequency spectrum.
Three extra AC power outlets for additional equipment, programmable in both 110V and 220V
Music “Mute” allows the microphone to be active while the music is off.
TECH SPECS
Source Input: KOD (Manual), DVD(BGM), VOD (Main)
Input Function: SAIS (Auto & Manually)
Power Output: 900 Watts (8 Ohm) 5-Channel Output
Microphone Input: 5 (Front x 3, Rear x 2)
Video Inputs: 3 (RCA jacks)
Video Outputs: 1 (RCA jacks)
Audio Inputs: 3 (RCA jacks)
Audio Outputs: 3 (RCA jacks)
Music Input Section
THD: <0.03%
Input Sensitivity/Impedance: 200mV/10k Ohm
HF (increase/attenuate): ±8 dB
LF (increase/attenuate): ±8 dB
Key Control: 9 steps
Mic. Input Section
Input Sensitivity/Impedance: 20mV~40mV/2k Ohm
Equalize
Low: 100Hz ± 8 dB
Middle: 1kHz ± 8 dB
High: 10kHz ± 8 dB
Standard Power: AC 120V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
Frequency Response: 20Hz~20kHz, ± 1 dB
Power Consume: 30 Watts
Dimensions (WxHxD): 17×5.7×15.1 in / 43×14.5×38.4 cm
Packing Dimensions (WxHxD): 21×9.5×19 in / 53.3×24.1×48.3 cm
Net Weight: 37.9 Lbs / 17.2 Kg
Shipping Weight: 40.2 Lbs / 18.2 Kg
UPC Code: 743062980421
Features
5-Channel Mixing Amplifier
State of the Act New Karaoke Mixing Amplifier with 9 Inputs: 4 Digital Signals (Optical/Coaxial/USB/Bluetooth)
5 Analog Signals (DVD/VOD/HDMI 1/HDMI 2/ HDMI 3)
Bluetooth 5.0 allows you to wirelessly stream music from all your favorite compatible devices
Accepts USB flash drives and SD memory cards with USB adapter
USB interface for playing digital music files
Multimedia Expansion Control (USB/Bluetooth)
HDMI interface for expanding the connection of various devices
Ability to record output thru USB Port
3 Band Microphone Tone (Bass/Mid/Treble)
4 Band Music Tone (Bass/Mid/Treble/Balance)
Music Balance: Control audio output of the speakers between left and right
Microphone Echo Effect controls: Levels, Delay, Repeat, Bass, Mid and Treble
11-Steps key control
Individualized volume control for limiter (avoid feedback distortion) and microphone
Individualized Subwoofer channel output for sound board mixing or powered speaker.
Audio input sensitivity (for AUTO input setting).
Microphone input sensitivity.
Inputs: 5 microphone inputs (3 front and 2 rear), 2 digital audio inputs (Optical/Coaxial), 2 audio inputs (DVD/VOD) and 3 HDMI 4K inputs.
Outputs: 2 line outputs (Music/Pre-Amp) and 1 HDMI 4K output.
4 XLR Outputs: Music/Vocal/Mix/Subwoofer
Dedicated wireless microphone connection input in 2 groups. The volume of each group can be adjusted separately, with each group providing +8dB/-12dB adjustment for treble, middle, and bass.
Smart fan
Tech Specs
Power Output: Peak 1400W; RMS 350Wx2 (1kHz, 8 ohm); Peak 1800W; RMS 450Wx2 (1kHz, 4 ohm)
Source Input: DVD, VOD, HDMI, OPTICAL, COAXIAL, USB & BLUETOOTH.
Frequency Response: 20Hz~20kHz (± 0.5dB)
THD: <0.7%
S/N Ratio: 90dB
Crosstalk (rated power): 1kHz: -60 dB; at 20kHz:-45 dB
Voltage gain: 44dB
Conversion rate: >10V/us
Input Impedance: 22K Ω
Music Input Section
Input Sensitivity/Impedance: 250mV
Frequency response: 20Hz-20kHz (+ 3dB; -1dB)
MIC Input Section
Input Sensitivity/Impedance: 30mV
Frequency response: 20Hz-20kHz (+ 3dB; -1dB)
Bluetooth: Version 5.0
Digital Audio File Compatiblilty MP3, WMA and More
Inputs: 5 microphone inputs (3 front and 2 rear), 2 digital audio inputs (Optical/Coaxial), 2 audio inputs (DVD/VOD) and 3 HDMI 4K inputs.
Outputs: 2 line outputs (Music/Pre-Amp) and 1 HDMI 4K output.
4 XLR Outputs: Music / Vocal / Mix / Subwoofer
Standard Power: AC 110V/~60Hz (North America Market) / AC 220V/~50Hz (Asia or Europe Market)
Dimensions (WxHxD): 17×5.9×14 in / 43x15x35.4 cm
Packing Dimensions (WxHxD): 19.5x8x17.7 in / 49.5×20.3×45 cm
Net Weight: 30.4 Lbs / 13.8 Kg
Shipping Weight: 32.6 Lbs / 14.8 Kg
UPC Code: 743062981640
FEATURES
16-Channel; fully adjustable
Phantom Power (P48) for condenser microphones
Echo Effects controls: Delay, Repeat
Bluetooth Enabled to connect to smartphone
Integrated FM Radio with auto-scan feature
USB interface for recording and playing digital music files
Channels 1 to 8 Mono Microphone Plugs
Channels 9 to 16 Stereo Audio Inputs
Left & Right Master control faders
Gain Control for each channel
7 Band equalizer to Main Out
Headphone Jack with independent volume control
Effects Send to the audio processor
Aux Return from the audio processor
Mute Switches allow each channel to be muted
Audio Balance on each channel, perfect for a theatrical effect when using instruments
Low Cut switch restricts lower frequencies from the selected channels
Trim Control to set the appropriate “gain” to each channel
Specifications:
Frequency Range (-10 dB): 27 Hz – 220 Hz
Frequency Response (±3 dB): 33 Hz – 220 Hz
Input Connection Modes: Switchable, +1/-1 or +2/-2
Internally selectable, Parallel or Discrete
Recommended Crossover Frequencies: 80 Hz, 24 dB / octave HPF80 Hz, 24 dB / octave LPF
Power Rating(Continuous1 / Program / Peak): Parallel: 1600 W / 3200 W / 6400 W
Maximum SPL2: 136 dB SPL peak
Sensitivity (1w @ 1m): 98 dB SPL
LF Driver: 2 x JBL 2268H 457 mm (18 in) Differential Drivewoofer with neodymium-magnet and dual voice-coils
Nominal Impedance: Parallel: 4 ohms
Discrete: 8 ohms x 2Active Tunings: dbx DriveRack, all models. Settings available atwww.jblpro.com
Enclosure: Rectangular, 18 mm, 13-ply birch plywood
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel withacoustical transparent charcoal foam backing.
Removable JBL badge and punched JBL logo.
Input Connectors: Neutrik® Speakon® NL-4 (x2)
Dimensions (H x W x D): 602 mm x 1067 mm x 838 mm(23.7 in x 42 in x 33 in)Net Weight: 76 kg (166.5 lb)
Optional Accessories: SRX728S-CVR: Pull-over padded cover

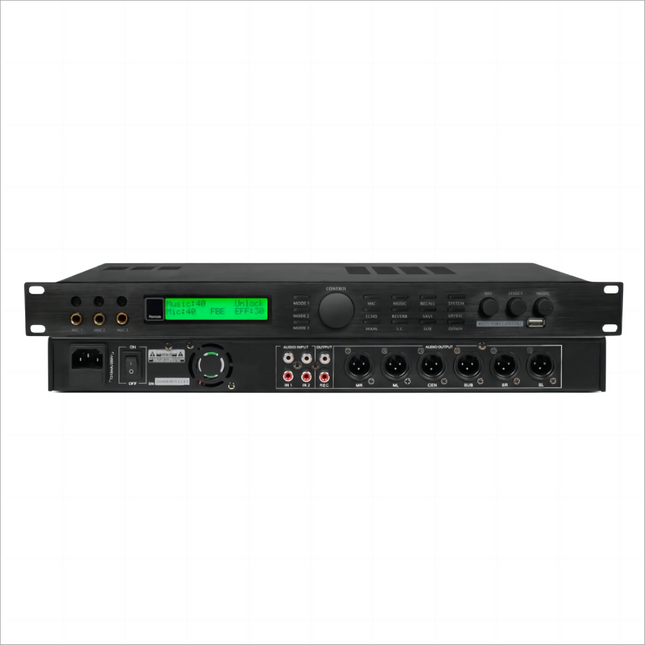

Profession karaoke audio system processor, specifically identified as a 590Hi model or similar DSP processor.
Function: It serves as a digital signal processor (DSP) for KTV and party environments, managing audio effects like reverb, echo, and anti-howling.
Connectivity: Features include 3 microphone inputs, PC/WiFi connectivity for tuning, and balanced XLR outputs for main, center, and subwoofer speakers.
Features: It includes 20-band parametric equalization for music and 15-band EQ for microphones, along with 5.1 channel support.
Dimensions: The unit measures approximately 483mm x 218.5mm x 47.5mm and weighs about 3.8kg.
IP-8988 G9 Features
- 3 Front Mic Inputs, 4 Rear Mic Inputs with Individual volume controls, tone adjustments, and echo level adjustments
- Professional Digital Echo adjustments with echo tone adjustments, repeat and delay controls
- Music Tone, Balance, and Volume adjustments
- USB Recording Interface w/ Recording Level Control
- Video and Audio Control Interface with 3 HDMI channels, 3 RCA channels, Optical, and Bluetooth
- 9" Display Screen
Specifications
Amplifier Section:
- Power Output (RMS) 6000W + 6000W
- Input Impedance 47K Ohms
- Input Sensitivity 150 mV
- Bass Control +/- 15dB (100Hz)
- Mid Control +/- 15 dB (1KHz)
- Treble Control +/- 15 dB (10KHz)
- T.H.D <0.1%
- Frequency Response 20Hz-20KHz-1 db
- Noise Ratio >90 dB
- Power Source 115V/60Hz
- Dimension 430(W)x2215(H)x410(D)
Microphone Section:
- Connector 1/4" TRS/Unbalanced
- Input Impedance 1.5K Ohms
- T.H.D. <0.5%
- Frequency Response 20Hz-15KHz-3dB
- Noise Ratio >85dB
- Bass Control +/-15dB(100Hz)
- Mid Control +/- 12dB(1Khz)
- Treble Control +/-15dB(10KHz)
- Digital Echo Up to 300ms

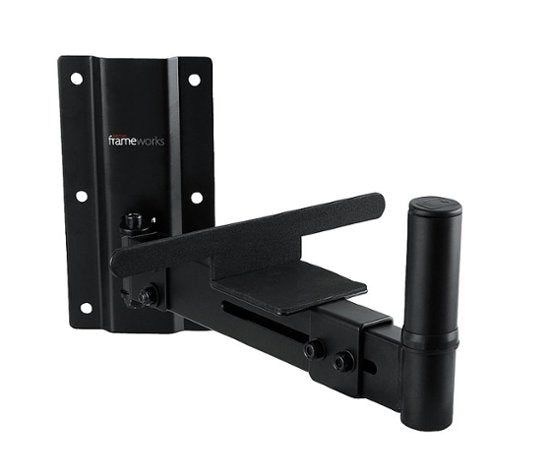

LKT 390 is made from thickened and hardened steel plate, solid materials, stronger bearing capacity. Rotate 180 degree left and right, 60 degrees downward, adjustable middle connecting rod.
Color: Black
Material: Metal
Use: Speaker
Weight: 9 lbs
Load capacity: 110 lbs.
LxDxH: 21 x 14.1 x 10.8
FEATURES
3-Way Full Range
1”x2 tweeters [paper cone high frequency drivers]
2.75”x12 tweeters [paper cone middle frequency drivers]
8”x2 woofer [low frequency woofer]
Column Speakers: RMS 250W, Peak 500W; Subwoofer: RMS 400W, Peak 800W
Built-In Power Amplifier
Portable/Compact Design
Average Mounting Height: 5.9 ft.
Handle on Subwoofer Box
Fits Truck Pack Cases (Up to two units in Better Music Builder – Road Truck-B)
Mono Amp. Output: XLR
Mono/Right Output: XLR
Recording Output: RCA
Aux Input: RCA
Balanced Line Inputs/Left & Right: XLR
Microphone Inputs: 2 x XLR
Power AC: 110V for USA & Canada. 220V for Asia and Europe.
Bi-amp module including DSP.
Exclusive CLIK together connections, no cables required.
Applications:
Party
Meeting
Public
Home
TECH SPECS
Type: Front
Cabinet Type: Selected High Intensity Plywood
Supported Fixture: Ground
Woofer (LF): 8 inches (2 unit) Low Frequency
Tweeter (MF): 2.75 inches (12 unit) Middle Frequency
Tweeter (HF): 1 inches (2 unit) High Frequency
Rated Impedance: 4 ohms
Spot Range: 1 Compression Driver
Frequency Response: 45Hz ~ 20kHz
Max. Power Handling: Column Speakers: 500 Watts; Subwoofer: 800 Watts
Power: LF: 200 Watts, MF: 180 Watts, HF: 30 Watts
Sensitivity: 95dB/1W/1M
Crossover Frequency: 300Hz between LF & MF, 5KHz between MF & HF
Max. SPL: 113 dB / 119 dB (PEAK)
Dispersion (HxV): 90° x 40°
Input Impedance: 20k ohm balanced input; 10k ohm unbalanced input
Input Level: LINE 1: 775mVrms, LINE 2: 200mVrms; MIC 1: 20mVrms, MIC 2: 40mVrms
Input Overloading Level: LINE 1: 3.5Vrms, LINE 2: 2Vrms; MIC 1: 200mVrms, MIC 2: 400mVrms
Wire Connection: PIN 1: Ground, PIN 2: Signal+, PIN 3: Signal–
Highlighted Features: Lightweight and very high power
Dimension (WxHxD):
Column Speaker: 3.4×22.4×4.3 in / 8.7x57x10.9 cm (each)
Subwoofer: 9.8×23.1×15.8 in / 25×58.6×40 cm (each)
One Set (2 x Column Speaker + 1 x Subwoofer): 9.8x68x15.8 in /25×172.6×40 cm
Packing Dimension (WxHxD):
24 x 27.6 x 13.8 in / 61 × 70 × 35 cm (One Set)
Net Weight:
Column Speaker: 7.4 Lbs / 3.4 Kg (each)
Subwoofer:36.4 Lbs / 16.5 Kg (each)
One Set (2 x Column Speaker + 1 x Subwoofer):51.2 Lbs / 23.2 Kg
Shipping Weight:
58.2 Lbs / 26.4 Kg (One Set)
UPC Code: 743062980902
TECH SPECS
2 x FULL RANGE COLUMN SPEAKER WITH ALUMINIUM CABINET
Component: 8 x 2” full range and 1 x 1” high range
Nominal Impedance: 8Ω
RMS Power Handling: 180W
Peak Power Handling: 360W
Frequency Response: 100Hz~20KHz
Sensitivity (1W/1M): 96dB
Dimensions (WxHxD): 3.7 x 2.6 x 24.4 inches
Packing Dimensions (WxHxD): 9.8 x 4.7 x 12.6 inches (pair)
Net Weight: 15.4 Lbs / 7 Kg (pair)
Shipping Weight: 18.3 Lbs / 8.3 Kg (pair)
1 x NON-POWERED SUBWOOFER
Component: 2 x 6.5”
Nominal Impedance: 4Ω
RMS Power Handling: 150W
Peak Power Handling: 300W
Frequency Response: 42Hz~300Hz
Sensitivity (1W/1M): 90dB
Dispersion: N/A
Dimensions (WxHxD): 10.4 x 16.1 x 18.7 inches
Packing Dimensions (WxHxD): 14 x 19.5 x 21.9 inches (each)
Net Weight: 25.4 Lbs / 11.5 Kg (each)
Shipping Weight: 30 Lbs / 13.5 Kg (each)
1 x POWERED SUBWOOFER
Component: 2 x 6.5”
Nominal Impedance: 4Ω
RMS Power Handling: 150W
Peak Power Handling: 300W
Frequency Response: 42Hz~300Hz
Sensitivity (1W/1M): 90dB
Max. SPL: 108dB
AMP Output: 900W + 2 x 350W
3 channels digital amp module inside
2 in 4 outs DSP module
Dispersion: N/A
Dimensions (WxHxD): 10.4 x 16.1 x 18.7 inches
Packing Dimensions (WxHxD): 14 x 19.5 x 21.9 inches (each)
Net Weight: 37.5 Lbs / 17 Kg (each)
Shipping Weight: 41.9 Lbs / 19 Kg (each)
2 x COLUMN SPEAKER STAND WITH BASE
3 x SPEAKER CABLES
Experience truly immersive karaoke with this professional-grade complete system, combining the power of M12 SUB LIVE SOUND SEIES paired with DFS 804 featured with 8 x 4” tweeters with the versatility of the SingsoundTek DSP-4200 digital karaoke processor. This package is designed for large living rooms, open spaces, and home entertainment setups where sound quality really matters.
Superior Sound Quality
The M12 SUB LIVE SOUND SERIES delivers:
Deep, rich bass with 12” woofer
Wide 180° horizontal coverage, filling your room effortlessly
Portable, sleek design with quick setup
1400 Watts per 1 subwoofer
The DFS 804 Array Vocal Speaer delivers:
· 600 Watts per 1 speakers
2-Way full range speaker
8 x 4” tweeter
2 x Speakon NL4 connector
Advanced Karaoke Processing
The SingsoundTek DSP-4200 is engineered to elevate your karaoke experience with:
High-end PA system tuning
Save/load presets for speakers and microphones
Built‑in EQ, FX, and dynamic processing
Professional-grade vocal enhancement and echo effects
Anti‑Feedback Wireless Microphones
Includes a UHF dual wireless microphone set, designed for:
Clean, stable vocals
Automatic anti‑feedback technology
Clear sound even at high volume
Complete Package Includes
(1 Pair) M-12 SUB Bass Powered Subwoofers
SingsoundTek DSP‑4200 Professional Digital Karaoke Processor
(1 Pair) UHF Professional Anti‑Feedback Wireless Microphones
Unlimited Music Options
Enjoy endless karaoke songs from YouTube using:
iPhone / iPad / Android devices
Smart TV connection via Optical (SPDIF) to the DSP‑4200
Just connect and sing—no complicated setup required.
